Toro 74915 Z Master G3 - Check and Clean the Hydraulic Unit Shrouds

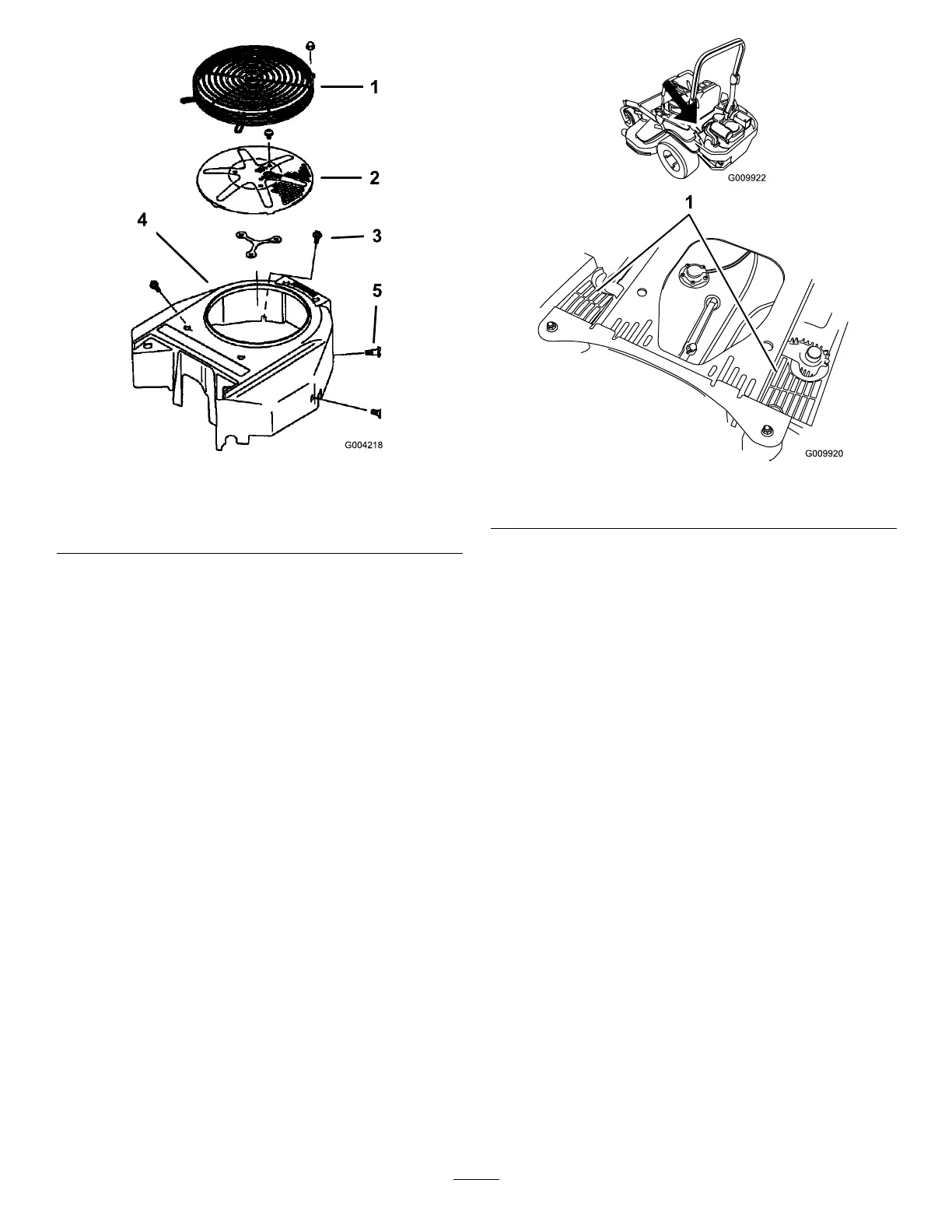

Figure71
1.Engineguard4.Fanhousing
2.Engineairintakescreen
5.Screw
3.Bolt
CheckandCleantheHydraulic
UnitShrouds
ServiceInterval:Beforeeachuseordaily
1.DisengagethePTOandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Raisetheseat.
4.Cleanthedebrisandgrassfromthehydraulicunit
shrouds(
Figure72).
5.Lowertheseat.
Figure72
1.Hydraulicunitshrouds
47
