Toro 74915 Z Master G3 - Operating the Mower Blade Control Switch (PTO); Operating the Throttle; Operating the Choke

G008944
1
2
3
Figure12

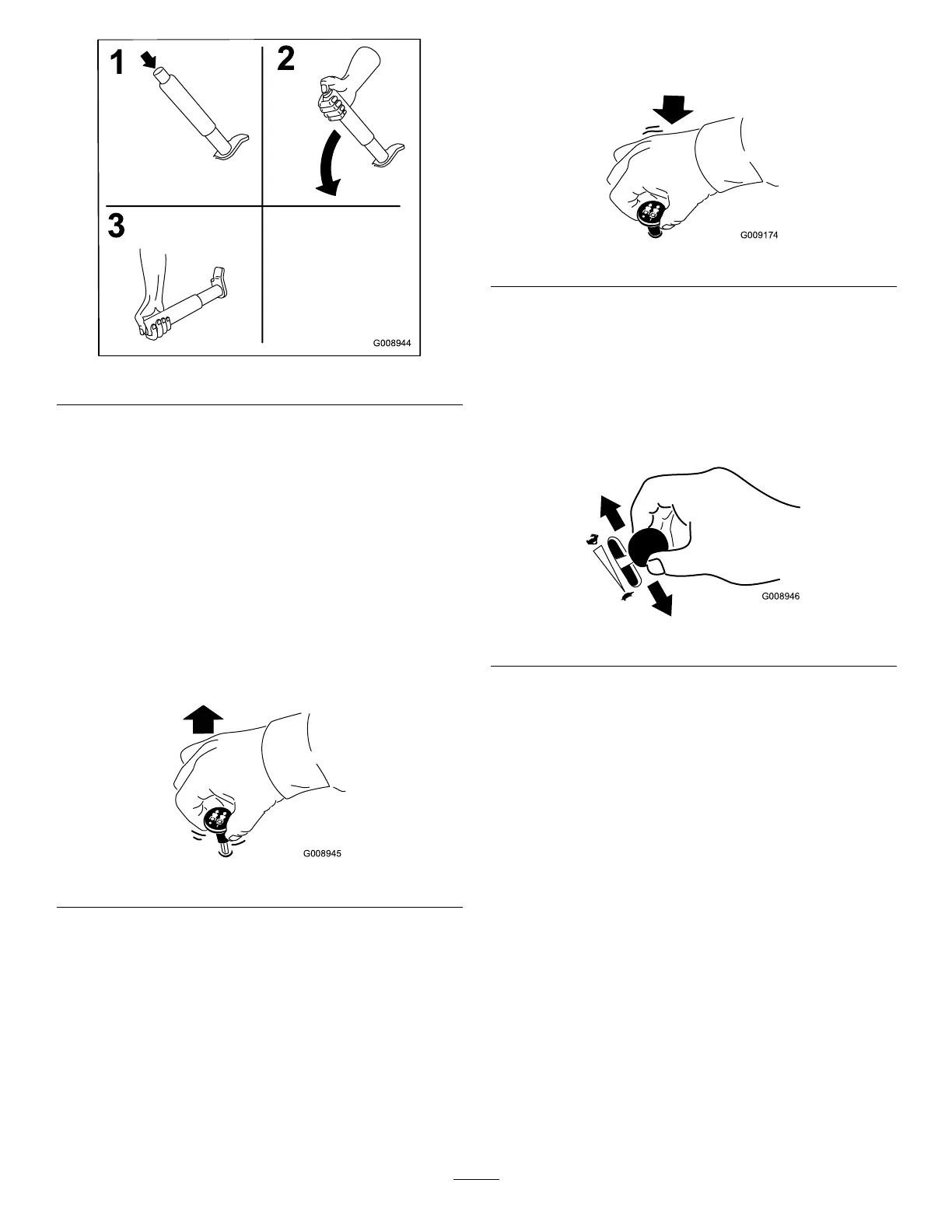

OperatingtheMowerBlade
ControlSwitch(PTO)
Thebladecontrolswitch(PTO)startsandstopsthe
mowerbladesandanypoweredattachments.
EngagingtheBladeControlSwitch
(PTO)
Note:Engagingthebladecontrolswitch(PTO)with
thethrottlepositionathalforlesswillcauseexcessive
weartothedrivebelts.
G008945
Figure13
DisengagingtheBladeControlSwitch
(PTO)
G009174
Figure14
OperatingtheThrottle
ThethrottlecontrolcanbemovedbetweenFastand
Slowpositions(Figure15).
Alwaysusethefastpositionwhenturningonthe
mowerdeckwiththebladecontrolswitch(PTO).
G008946
Figure15
OperatingtheChoke
Usethechoketostartacoldengine.
1.Iftheengineiscold,usethechoketostartthe
engine.
2.Pulluponthechokeknobtoengagethechoke
beforeusingtheignitionswitch(
Figure16).
3.Pushdownonthechoketodisengagethechoke
aftertheenginehasstarted(Figure16).
18
