Toro 75745W - Deck Leveling Procedures; Leveling the Mower Deck Side-to-Side

LevelingfromSidetoSide
1.Movetotheleftsideofthemachine.
2.Settheanti-scalprollerstothetopholesor
removethemcompletelyforthisprocedure;refer
toAdjustingtheAnti-ScalpRollers(page22).
3.Settheheight-of-cutlevertothe76mm(3inch)
position;refertoAdjustingtheHeightofCut
(page22).
4.Place2blocks,eachhavingathicknessof6.6
cm(2-5/8inches),undereachsideofthefront
edgeofthedeckbutnotundertheanti-scalp
rollerbrackets(Figure66orFigure67).
5.Place2blocks,eachhavingathicknessof7.3
cm(2-7/8inches),undertherearedgeofthe
cuttingdeckskirt,1oneachsideofthecutting
deck(Figure66orFigure67).

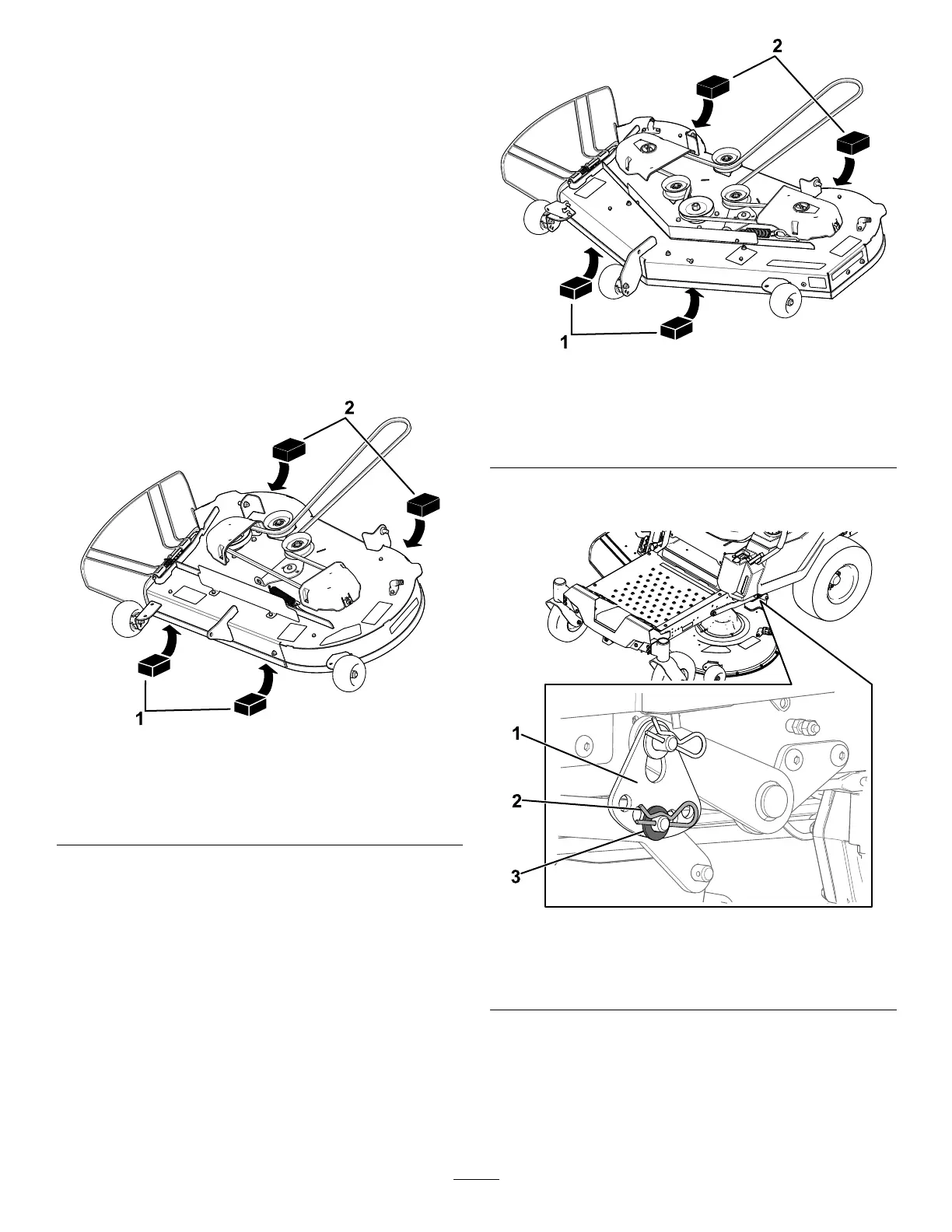

g298027
Figure66
MowerDeckswith2Blades
1.Woodblock—6.6cm
(2-5/8inches)thick
2.Woodblock—7.3cm
(2-7/8inches)thick
g298028
Figure67
MowerDeckswith3Blades
1.Woodblock—6.6cm
(2-5/8inches)thick
2.Woodblock—7.3cm
(2-7/8inches)thick
6.Removethehairpincotterandwasherfromthe
lowerlift-armpin(Figure68).
g294197
Figure68
1.Height-of-cutplate
3.Washer
2.Hairpincotter
7.Rotatetheheight-of-cutplatetoadifferenthole
sothatitsupportstheweightofthemowerdeck
afteryouinstalltheplate(Figure69).
