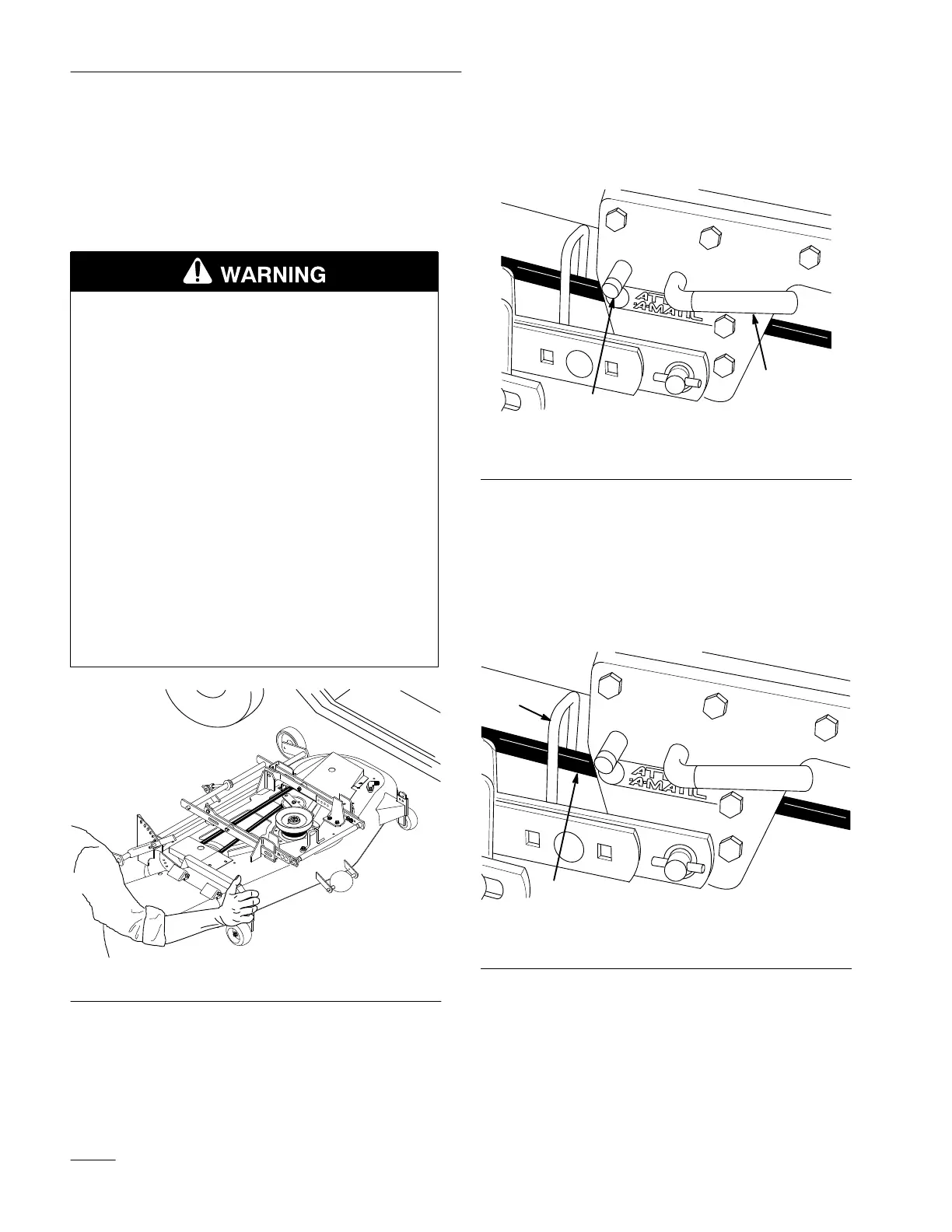

8. After the two J–pins are seated through the
mower’s mounting brackets, using the
attachment lift and your hand on the right front
adjustable mower wheel bracket (Fig. 7),
position the mower so its attachment bar fits into
the mid Attach–A–Matic mount.
POTENTIAL HAZARD
• The “scissor” formed by the mower
mounting brackets and the attachment lift
arm is dangerous.
WHAT CAN HAPPEN
• Hands and fingers can get caught between
the mower parts and the tractor and be
injured.
HOW TO AVOID THE HAZARD
• Keep hands away from moving parts while
operating the attachment lift.
• Always position the mower with your hand
on the right front mower wheel bracket.
• Never try to position the mower with your
hands on the mower mounting brackets or
below the mower housing.
m–3500
Figure 7
9. Turn the lever of the Attach–A–Matic
clockwise to lock the mower to the tractor (Fig.
8).
10. Set the parking brake, lower the attachment lift,
and turn the ignition key to “STOP” to stop the
engine. Then remove the key.
m–3457
1
2
Figure 8
1. Attach–A–Matic button 2. Attach–A–Matic lever
Attach the PTO Drive Belt
1. Hang the belt over the mower, then thread it
forward through the belt guide (Fig. 9) on the
mower.
m–3457
1
2
Figure 9
1. Belt 2. Belt guide
2. Extend the belt through the center of the pulley
box, between the two pulleys.
3. Release the belt tension release arm on the
pulley box housing and swing it out toward you
(Fig. 11).
