Toro Dingo 323 Installation Instructions

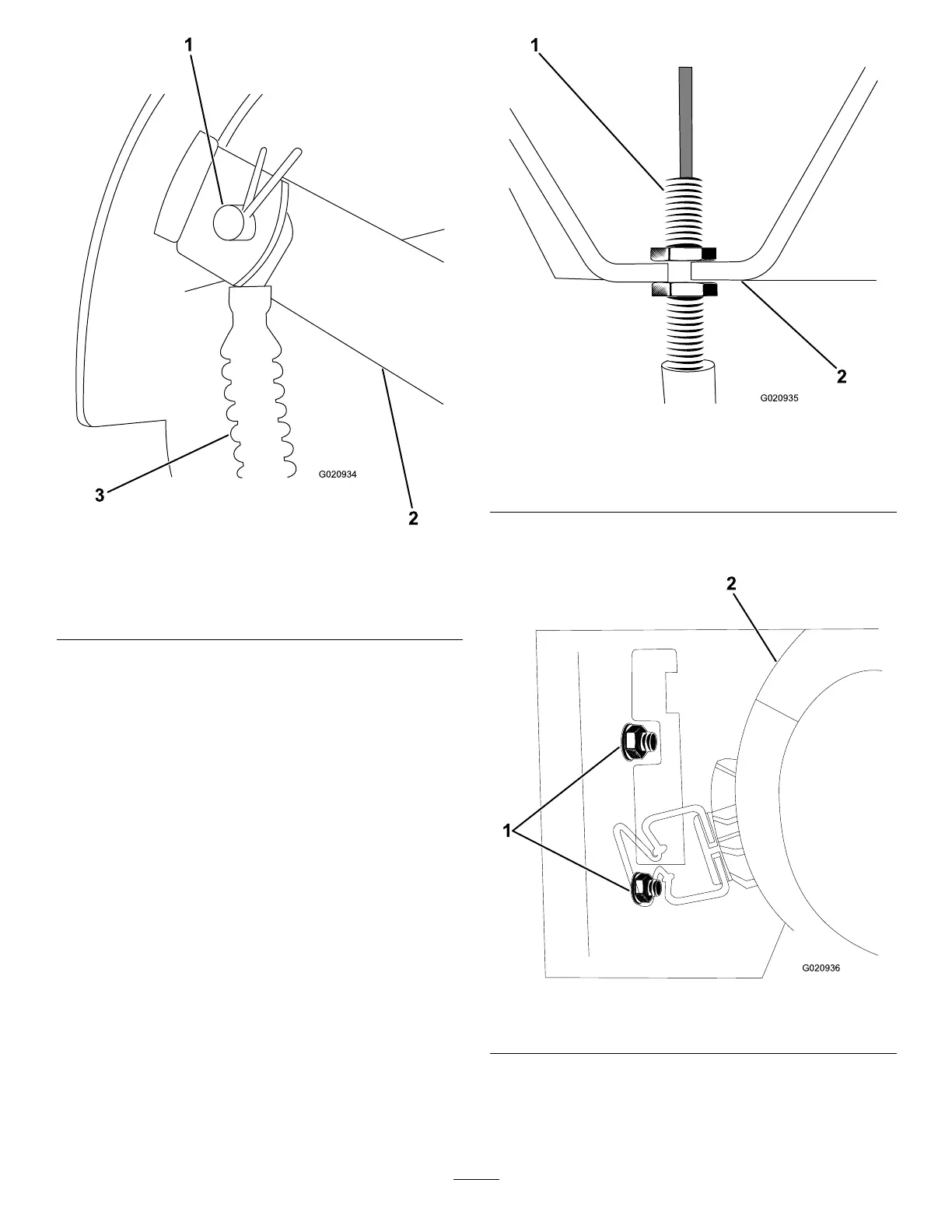

g020934
Figure11
1.Parking-brakelever3.Parking-brakecable
2.Clevispin(3/4inch)and
cotterpin(3/4inch)
3.Lightlytightenthenutsontheadjustmentcollar
aroundthebracketontheleverplate(Figure12).
g020935
Figure12
1.Cablewithadjustment
nuts
2.Bracketonthe
parking-brakelever
assembly
4.Loosenthenutssecuringtheaircleanertothe
frame(Figure13).
g020936
Figure13
1.Air-cleanernuts2.Aircleaner
5.Slidetheboltsintheleverassemblyoverthe
air-cleanerboltsbetweentheframeandthe
air-cleanermounting-bracketasshowninFigure
14andFigure15.
6
