Replacing the T rimmer Head
1. Remove the battery pack from the trimmer .
2. Insert a small-diameter tool (such as a screwdriver) through the
motor housing and into the groove in the fan to secure the trimmer
head so it does not freely rotate ( Figure 21 ).
Note: With the tool inserted in the hole, rotate the trimmer head until
you feel the rod fall into the groove.
g512077

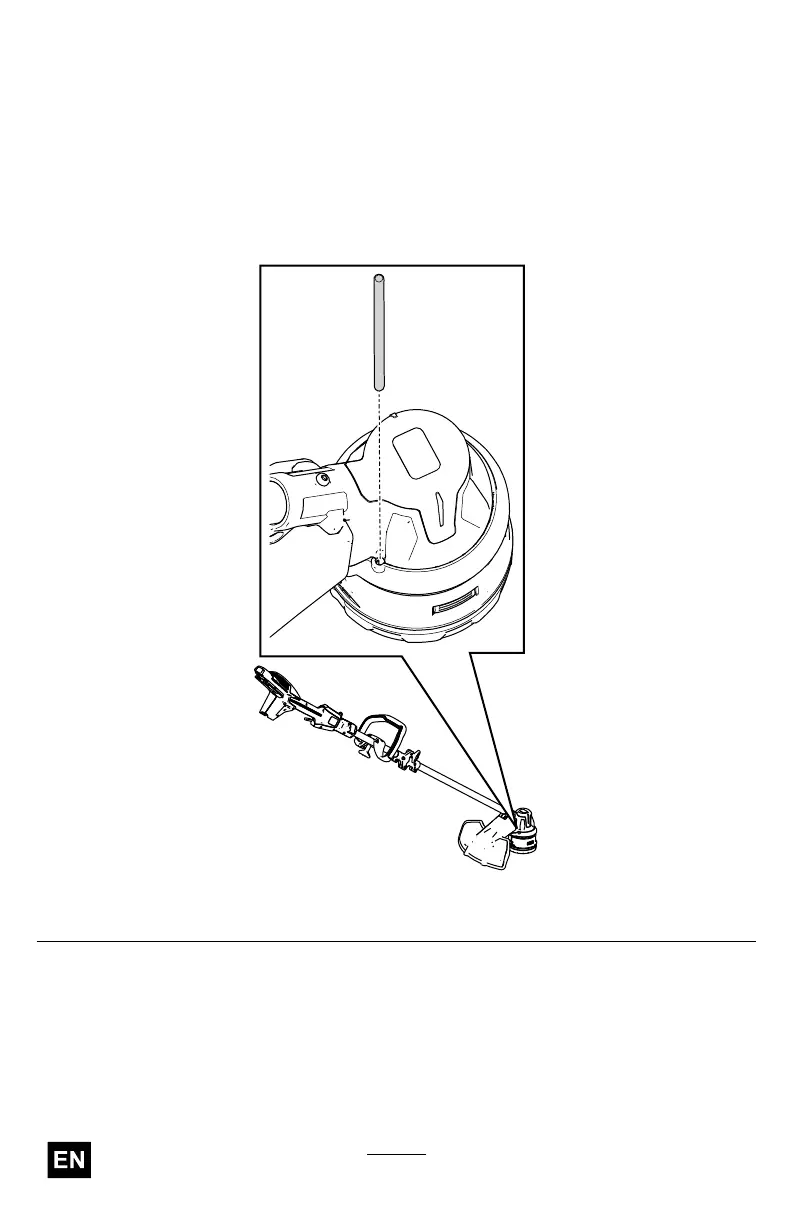

Figure 21
32
