Toro GrandStand 72523 - Greasing the Brake Calipers; Greasing the Motion Controls

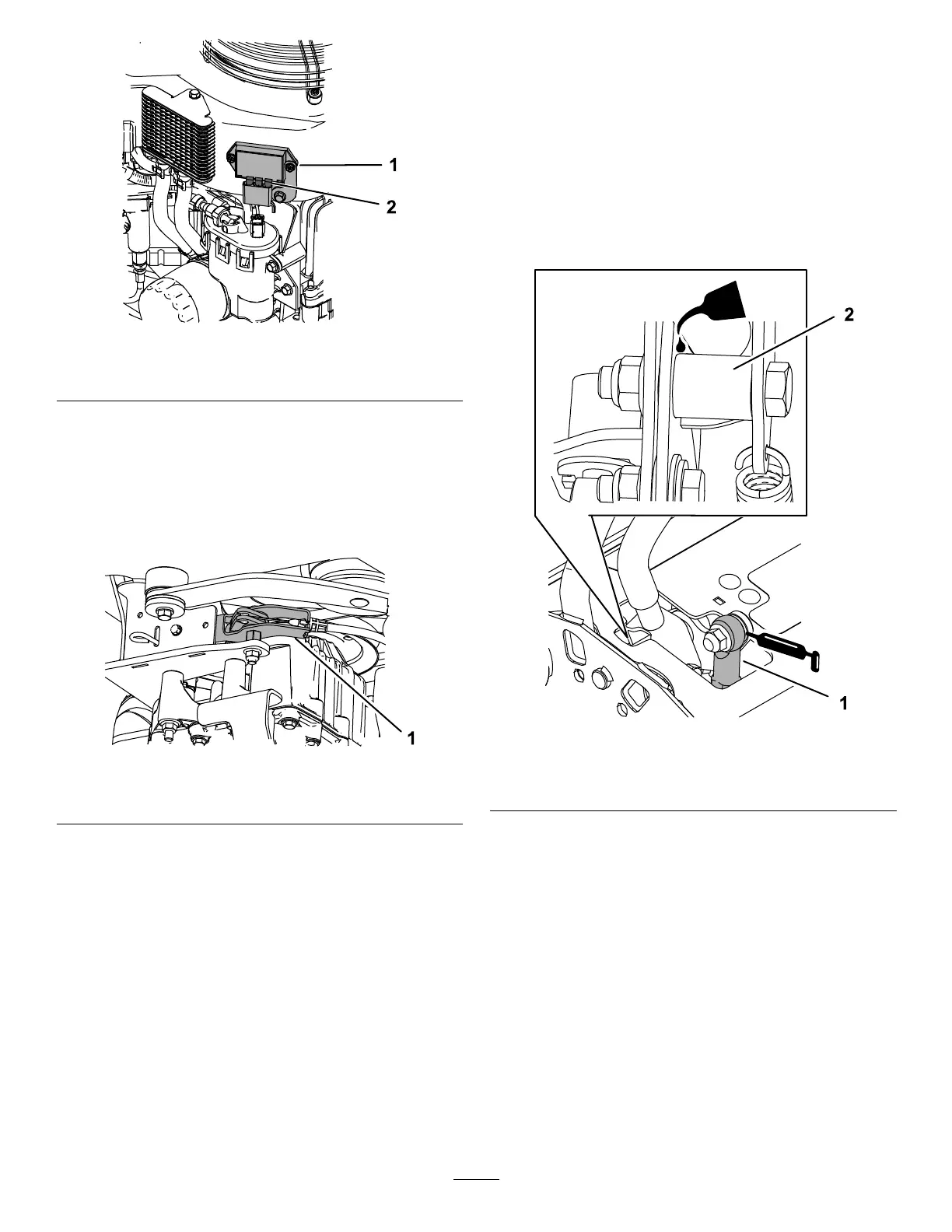

g228035
Figure37
1.Voltageregulator2.Regulatorblades
GreasingtheBrakeCalipers
ServiceInterval:Yearly
Applyarust-preventativespraytothebrakecalipers
yearly.
g228033
Figure38
1.Brakecaliper
GreasingtheMotion
Controls
ServiceInterval:Yearly
Greasetheoperator-presence-controlballjointand
themotion-controlbushingforbothlevers.
Note:Useanoildripbetweentheleverbracketsto
greasethebushing,locatedinthepivottube.
g228034
Figure39
1.Operator-presencecontrol
balljoint
2.Pivottube
30
