Toro Greensmaster
Flex 18 04018 - Groomer Reel Bearing Replacement

Greensmaster Flex 18/21Groomer Page 8 – 12
Groomer Reel Bearing Replacement

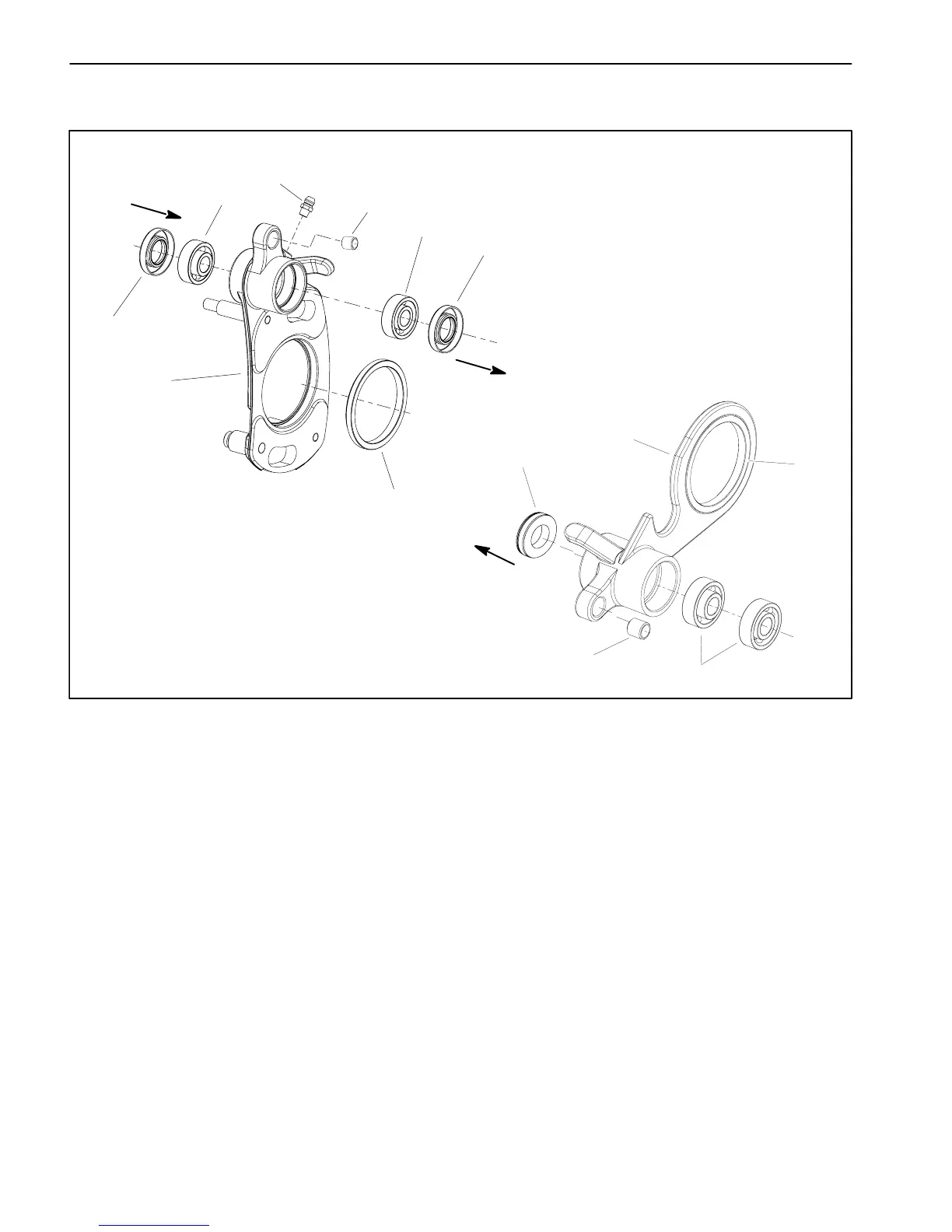

Figure 13
1. RH groomer side plate
2. Oil seal
3. Bearing (w/extended inner race)
4. Grease fitting
5. Bushing
6. Side plate bushing
7. LH groomer side plate
2
1
3
2
Seal lip
3
4
Seal lip
5
7
2
3
6
5
Seal lip
6
