Greensmaster Flex 18/21Page 7 – 4Cutting Unit
Special Tools
Order special tools from the TORO SPECIAL TOOLS
AND APPLICATIONS GUIDE (COMMERCIAL PROD-
UCTS).
Some tools may have been supplied with your mower or
are available as TORO parts. Some tools may also be
available from a local supplier.

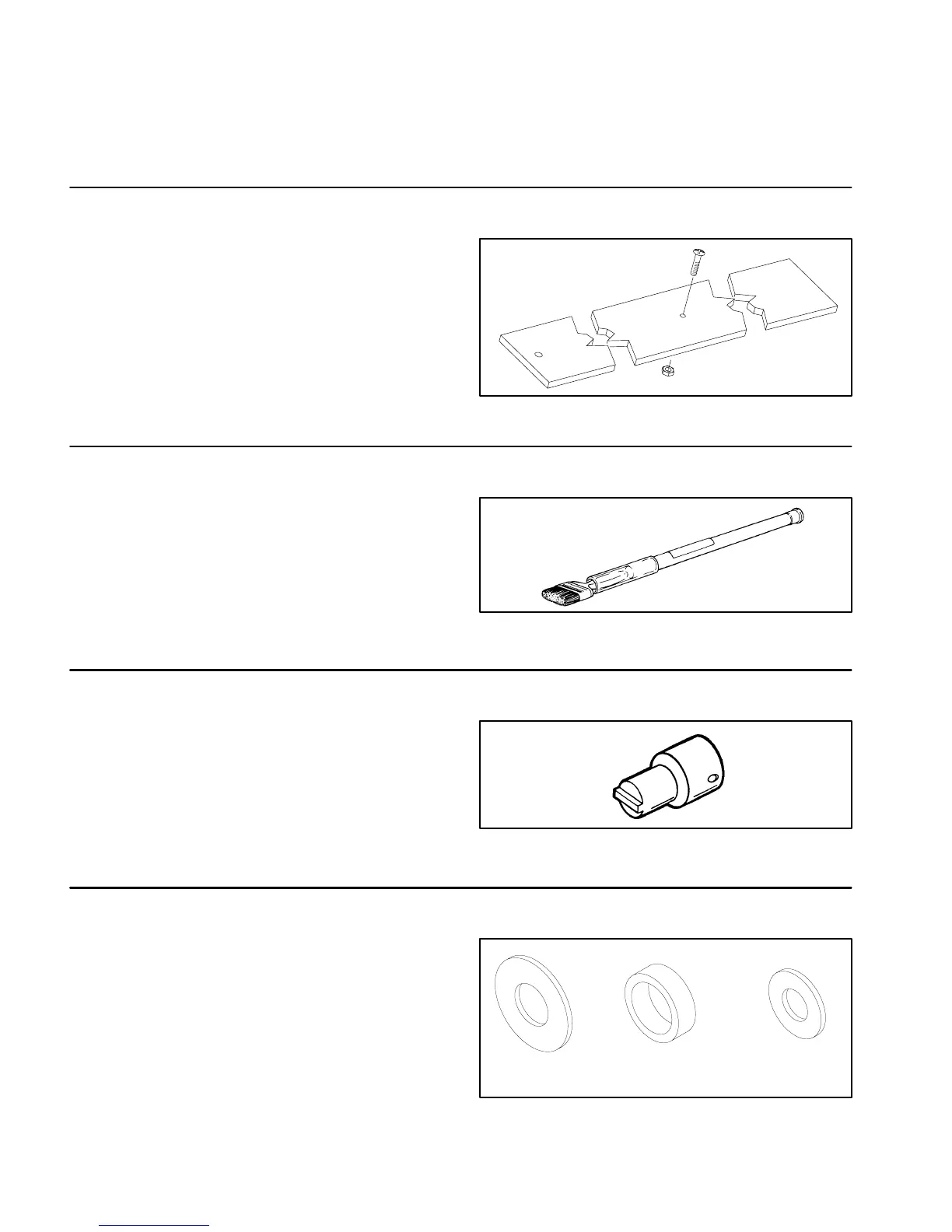

Gauge Bar Assembly
Toro Part Number: 13–8199
Used to verify height–of–cut.
Figure 4
Backlapping Brush Assembly
Toro Part Number: TOR299100
Used to apply lapping compound to cutting units while
keeping the operator’s hands at a safe distance from the
rotating reel.
Figure 5
Bedknife Screw Tool
Toro Part Number: TOR510880
This screwdriver–type bit is made to fit Toro bedknife at-
taching screws. Use this bit with a 3/8” drive torque
wrench to secure the bedknife to the bedbar.
DO NOT use an air or manual impact wrench with this
tool.
Figure 6
Roller Bearing Installation Tools
Washers and spacer used to install bearings and seals
into front and rear rollers.
Seal installation washer (black): 107–8133
Seal installation spacer: 107–3505
Bearing installation washer (yellow): 104–6126
Figure 7
Seal Installation
Washer
Seal Installation
Bearing Installation
Washer
Spacer
