Toro Greensmaster
Flex 18 04018 - Groomer Arm Assembly

Greensmaster Flex 18/21Groomer Page 8 – 16
Groomer Arm Assembly

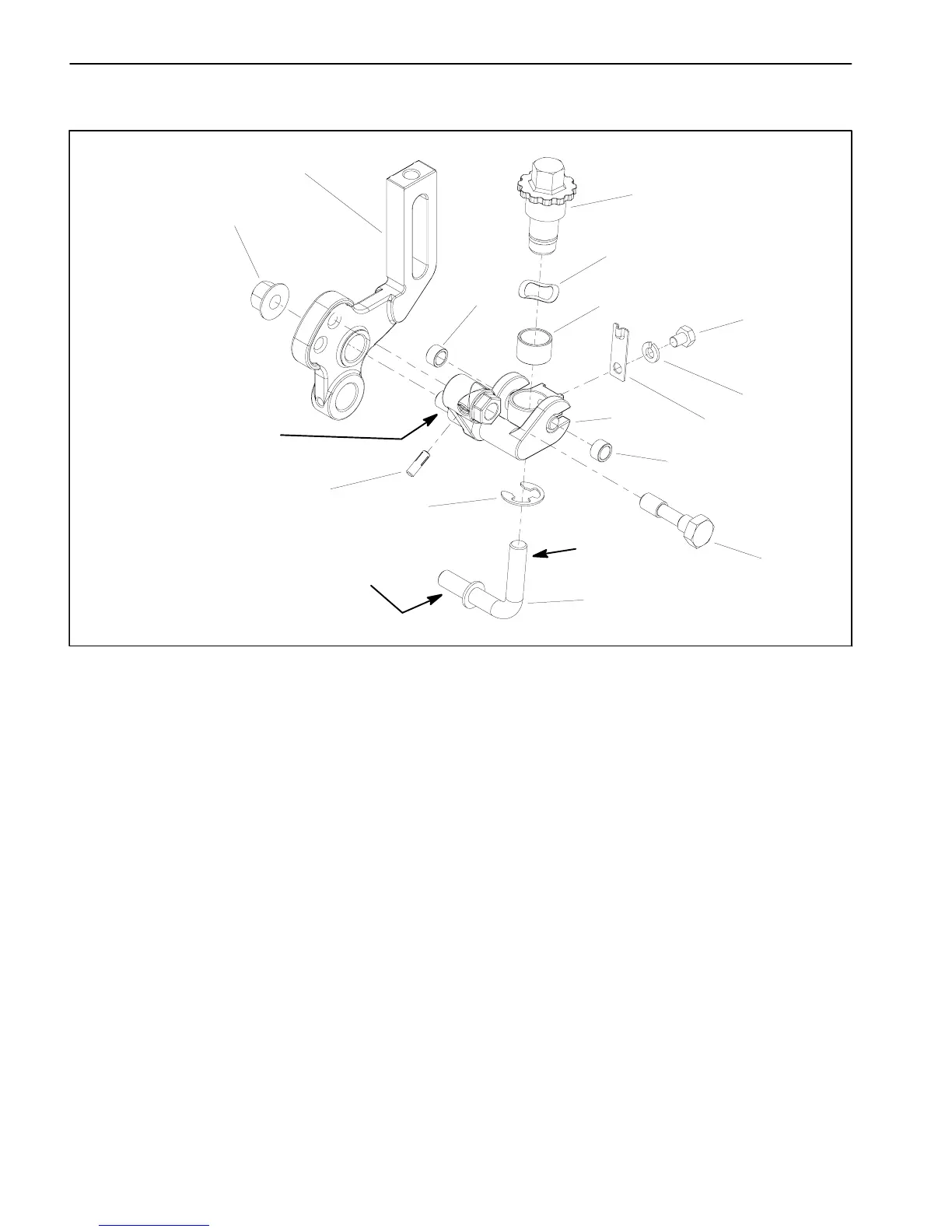

Figure 17
1. HOC groomer arm (LH shown)
2. Flange nut
3. Grooved pin
4. E–ring
5. Groomer lift rod
6. Lock screw
7. Bushing
8. Lift arm assembly (LH shown)
9. Detent spring
10. Spring washer
11. Cap screw
12. Bushing
13. Wave washer
14. Groomer adjuster
13
3
5
14
2
6
4
7
12
9
10
8
11
7
1
Antiseize
Lubricant
Antiseize
Lubricant
Antiseize
Lubricant
