Storage
Machine
1.Removethekeyfromtheignitionswitchand
storeitinamemorableplace.
2.Thoroughlycleanthemachine,deck,and
engine,payingspecialattentiontotheseareas:
•Radiatorandradiatorscreen
•Underneaththedeck
•Underthedeckbeltcovers
•Counterbalancesprings
•PTO-shaftassembly
•Allgreasettingsandpivotpoints
•Insidethecontrolbox
•Beneaththeseatplateandtopofthe
transmission
3.Checkandadjustfrontandreartirepressure;
refertoCheckingtheTirePressure(page52).
4.Remove,sharpen,andbalancethemower
blades.Installthebladesandtorquetheblade
fastenersto115to149N∙m(85to110ft-lb).
5.Checkallfastenersforloosenessandtighten
themasnecessary.T orquethe6boltssecuring
themowerdeckframetothetractionunit(Figure
94)to359N∙m(265ft-lb).

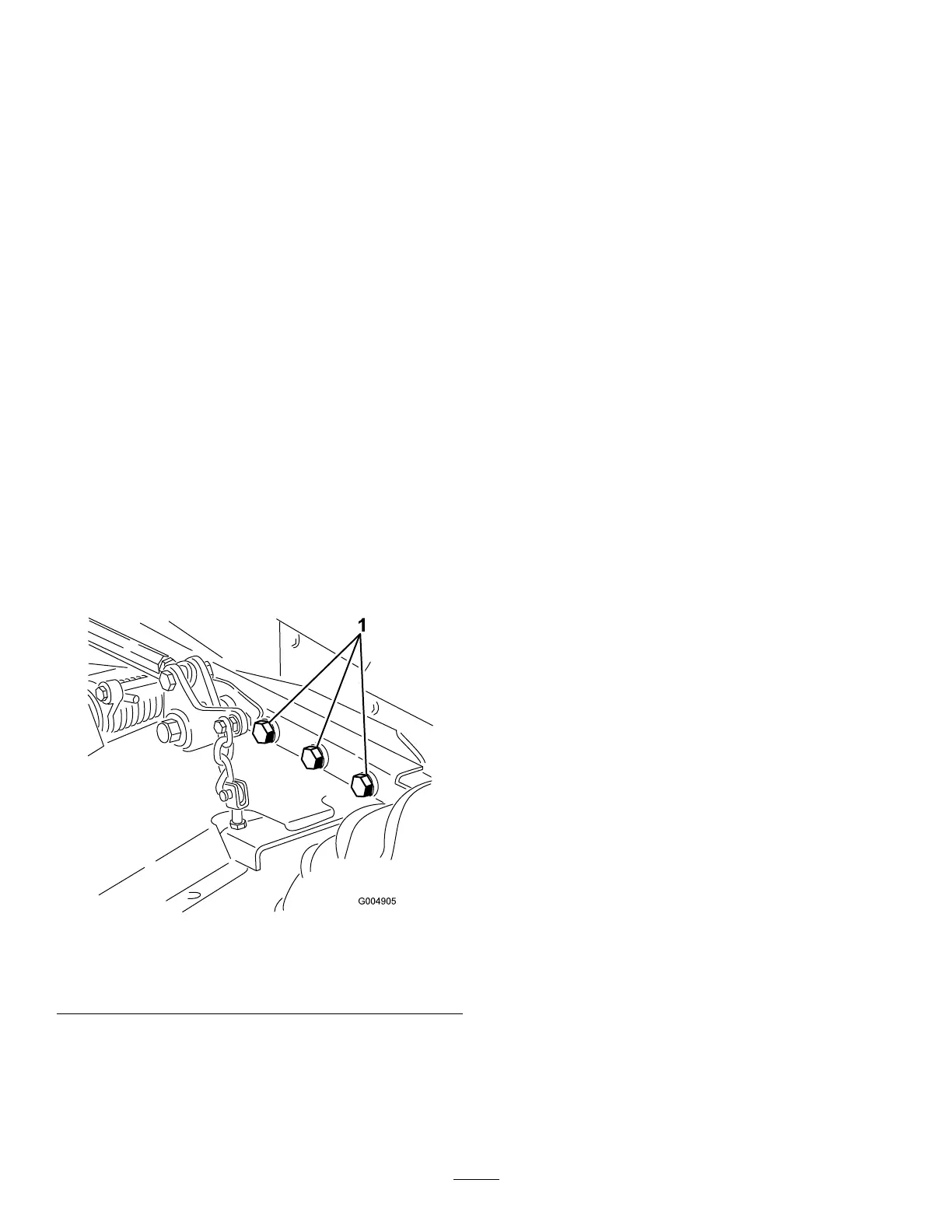

g004905
Figure94
Rightsidenotshown.
1.Bolts
6.Greaseoroilallgreasettings,pivotpoints,and
transmission-bypass-valvepins.Wipeoffany
excesslubricant.
7.Lightlysandandusetouchuppaintonpainted
areasthatarescratched,chippedorrusted.
Repairanydentsinthemetalbody.
8.Servicethebatteryandcablesasfollows:
A.Removethebatteryterminalsfromthe
batteryposts.
B.Cleanthebattery,terminals,andpostswith
awirebrushandbakingsodasolution.
C.Coatthecableterminalsandbatteryposts
withGrafo112Xskin-overgrease(ToroPart
No.505-47)orpetroleumjellytoprevent
corrosion.
D.Slowlyrechargethebatteryfor24hours
every60daystopreventleadsulfationof
thebattery.
Engine
1.Draintheengineoilfromtheoilpanandreplace
thedrainplug.
2.Replacetheoillter.
3.Filltheenginewiththerecommendedmotoroil.
4.Starttheengineandrunitatidlespeedfor2
minutes.
5.Drainthefuelfromthefueltank,fuellines,
pump,lter,andseparator.Flushthefueltank
withcleandieselfuelandconnectallfuellines.
6.Thoroughlycleanandservicetheair-cleaner
assembly.
7.Sealtheair-cleanerinletandtheexhaustoutlet
withweatherproofmaskingtape.
8.Checktheoilllercapandfuel-tankcapto
ensurethattheyaresecurelyinplace.
63
