3
Removing
the
Existing
Seat
Models
31657
and
31659
No
Parts
Required
Procedure
Seat
weight:
38
kg
(84
lb)
Note:
Have
another
person
help
you
remove
the
seat
or
use
a
suitable
crane.
1.
Disconnect
the
main
wire-harness
connector
from
the
control-arm
harness
(
Figure
8
).
Rotate
the
collar
and
pull
the
connector
to
remove.
Important:
Cover
and
protect
the
electrical
connectors
to
prevent
damage.

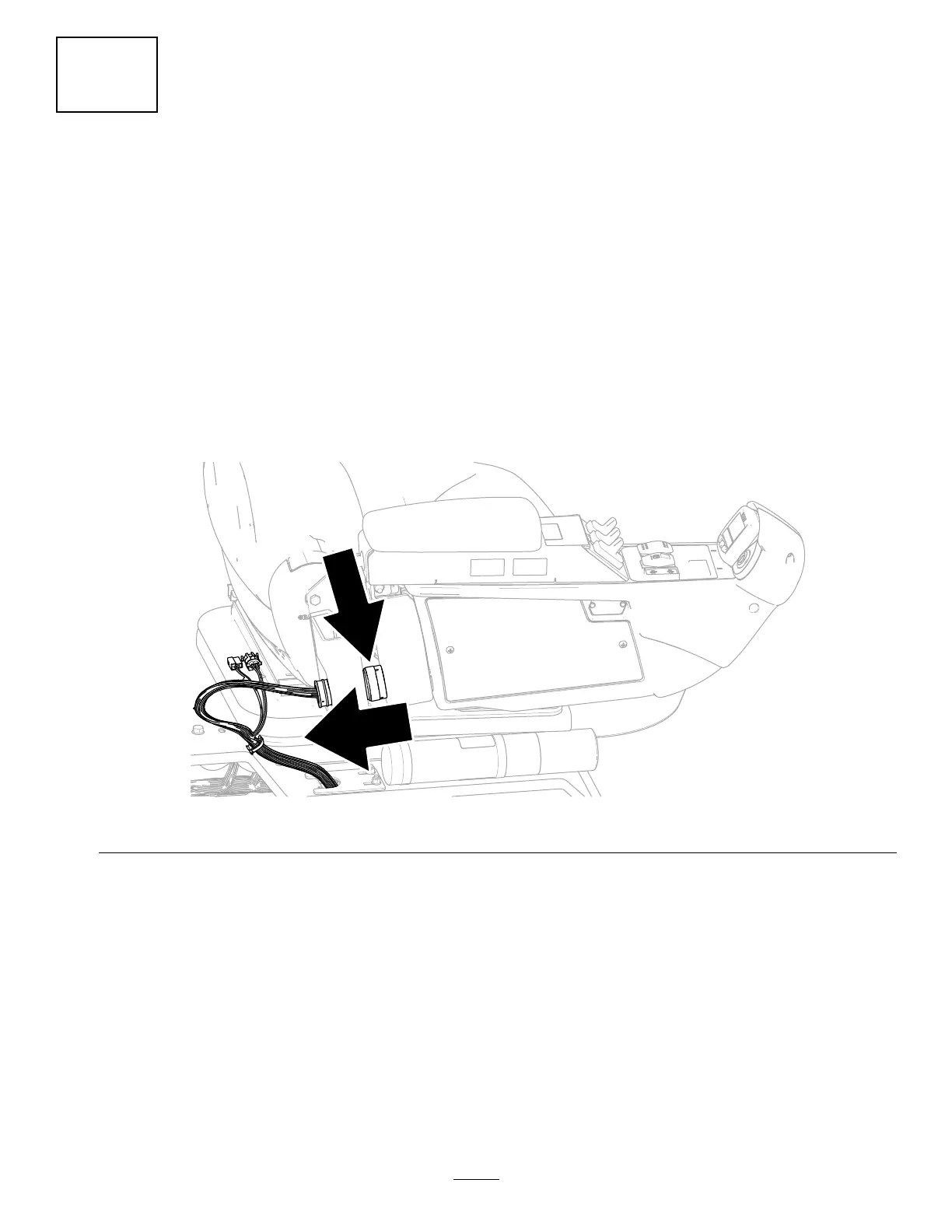

g343901
Figure
8
2.
Disconnect
the
seat-switch
harness
from
the
seat
and
leave
it
on
the
platform.
6
5
7
