4.Whilesupportingtheseat,removethe4washers
(8mm)and4locknuts(8mm)thatsecurethe
seattotheseatplatform(Figure7).
Note:Donotremovethe4bolts(8x25mm)
fromtheholesintheseatandseatplatform.

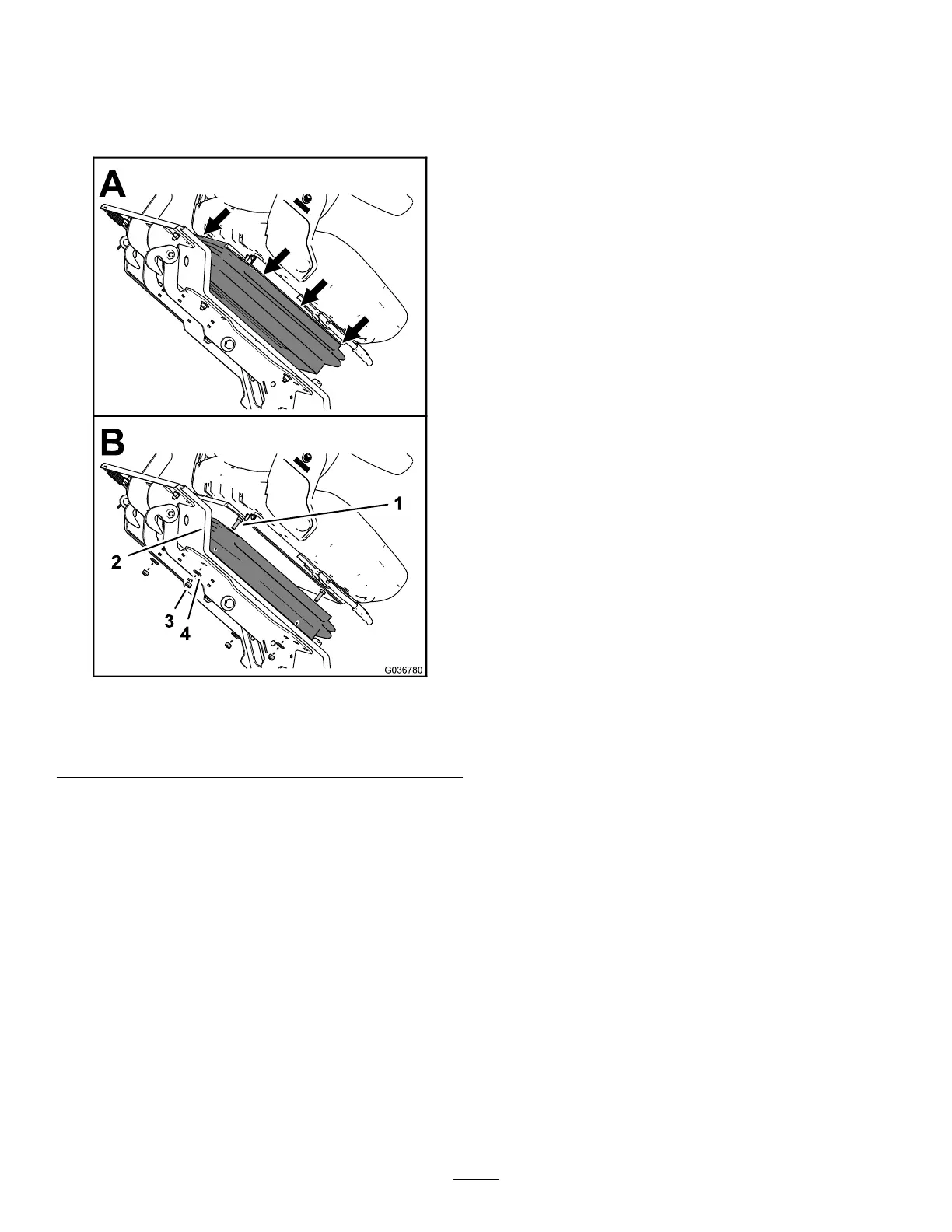

g036780
Figure7
1.Bolt(8x25mm)3.Locknut(8mm)
2.Seatplatform4.Washer(8mm)
5.Lowertheoperator’splatformasfollows:
A.Lowertheplatformcarefully.
B.Movethelocking-latchhandletowardthe
frontofthemowerastheplatformnearsthe
fullyloweredposition.
Note:Thisensuresthatthelatchhooks
clearthelockingbar.
C.Fullylowertheplatformandmovethe
lockinghandletowardtherearofthemower
untilthelatchhooksfullyengagethelocking
bar.
6.Removetheseatfromtheplatform.
Note:Discardthe4bolts(8x25mm),4
locknuts(8mm),and4washers(8mm).
