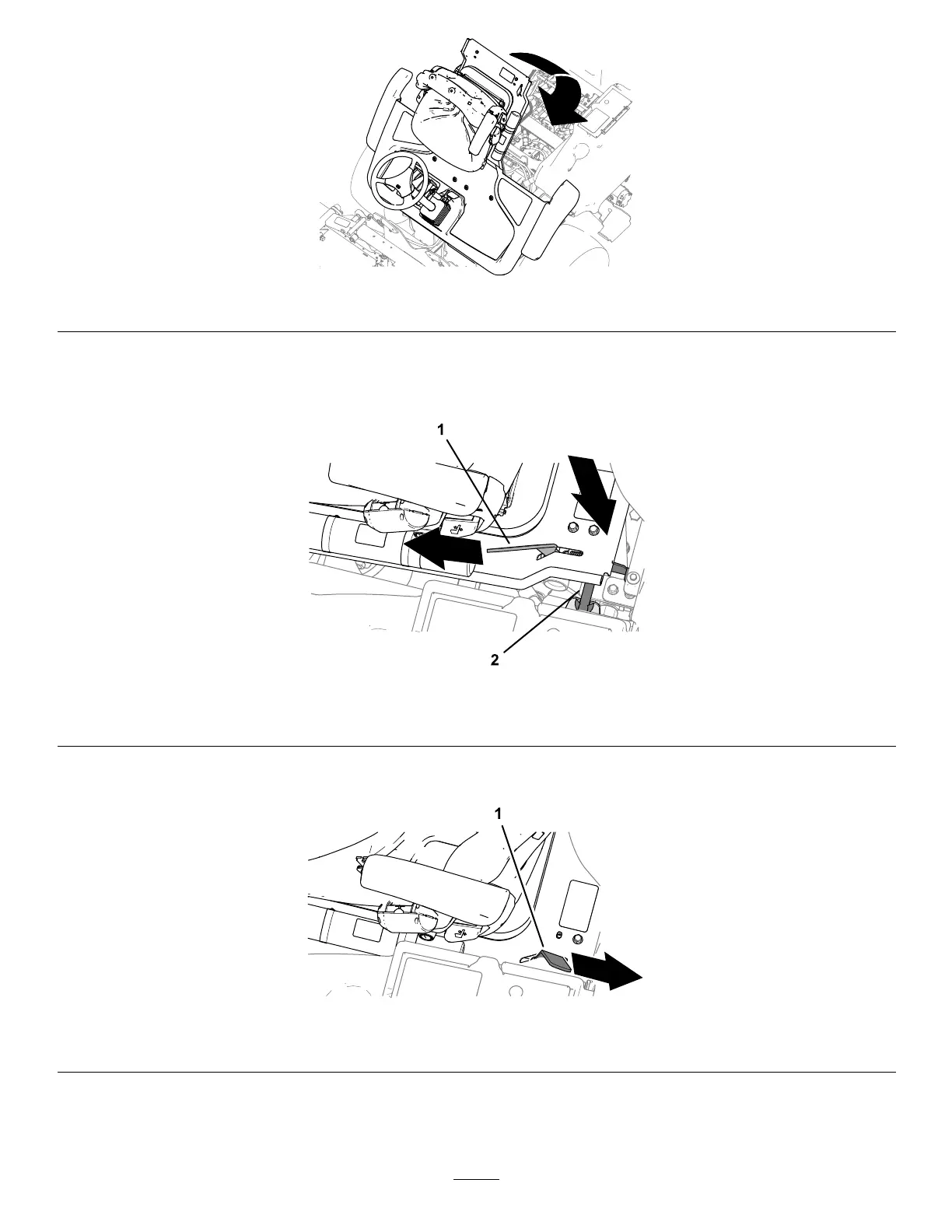

Figure11
B.Astheplatformnearsthefullyloweredposition,movetheplatform-latchhandle(Figure12)toward
thefrontofthemachine.
Note:Thisensuresthatthelatchhooksclearthelockingbar.
g290369
Figure12
1.Platform-latchhandle
2.Lockingbar
C.Fullylowertheplatformandmovetheplatform-latchhandletowardtherearofthemachineuntilthe
latchhooksfullyengagethelockingbar(Figure13).
g290370
Figure13
1.Platform-latchhandle
6.Removetheexistingseatwiththecontrolarmattachedfromtheplatform.
Note:Discardthe4bolts(8x25mm)and4locknuts(8mm).
