Toro Multi Pro 1200 - Spray Pro Console Functions; Console Display and Key Functionality

59
The Spray Pro

features a large easy-to-read
liquid crystal display, lighted selection dial and
lighted panel for night use.
NOTE: The Spray Pro is preprogrammed
with values for speed, flow, and width
calibrations. The initial measurement units are
US gallons per acre, which can be changed.
APPLICATION RATE: Displays gallons (liters)
of liquid applied per acre (hectare).
KEY FUNCTIONS:
RUN/HOLD: Key for manual operation of
Spray Pro

. Changes status from Run to Hold.
CAL: This key is used to enter and exit the
Calibration Mode.
PROGRAM KEYS: Used to calibrate the
system.
 RESET clears the selected counter when
held for three seconds.
 The "
+" key increases the figure displayed
in the readout, while "-" decreases it when in
CAL.
SPRAY PRO

CONSOLE FUNCTIONS

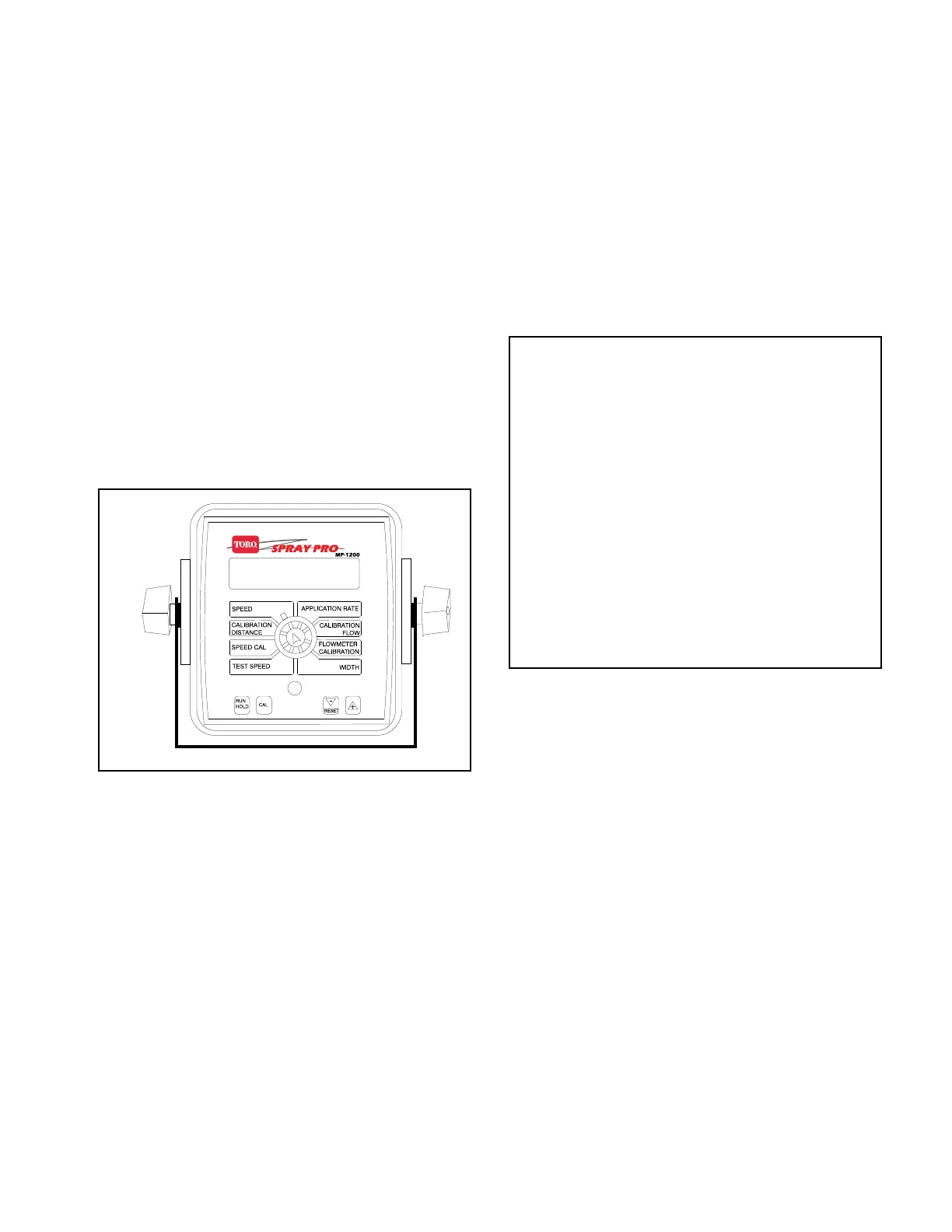

FIG. 1
CALIBRATION FLOW: Displays total number
of gallons (liters) passed through the flowmeter
while in Run Mode. Primarily used in flowmeter
fine-tuning. May be reset.
WIDTH: Used in calibration mode to enter the
working width of your sprayer.
CALIBRATION DISTANCE: Displays
distance traveled in feet (meters), while in Run
Mode. May be reset.
SPEED CAL: Used in calibration mode to enter
the speed calibration value.
FLOWMETER CAL: Used to enter the
calibration value for the flowmeter.
WARNING LIGHT: When in CAL mode, light
should be constant.
SPEED: Displays ground speed in miles per hour
(kilometers per hour).
TEST SPEED: Used to simulate ground speed
for pre-field checkout.
