Toro Multi-Pro 5700 Installation

16
G019670

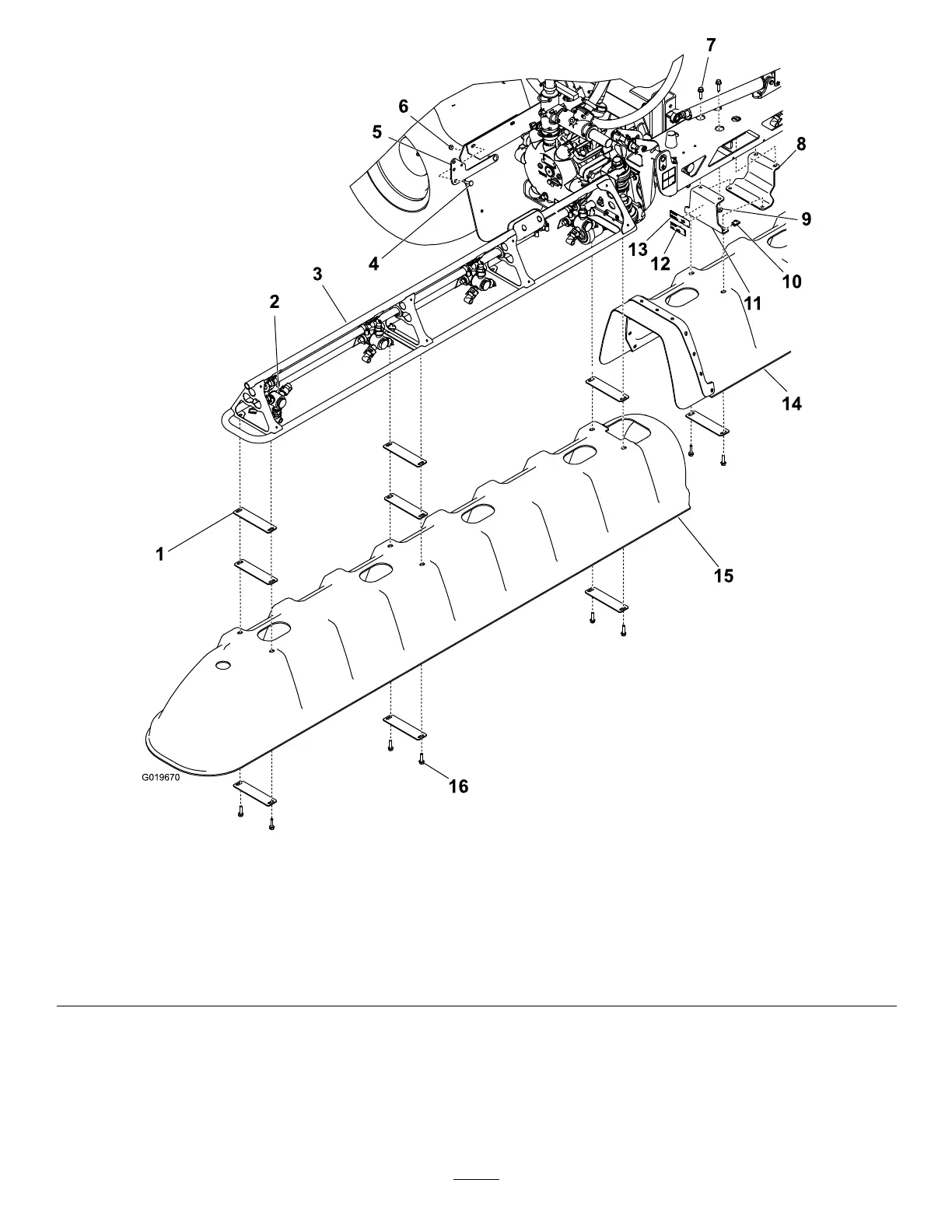

Figure1
1.Washerplate(18)7.Hexheadscrew,3/8x1-1/4inch(4)13.Model/serialnumberdecal
2.Spraynozzle(properlyoriented)8.Boommountplate(2)14.Centerboomcover
3.Wingboom(2)9.Flangenut,3/8inch(4)15.Wingboomcover(2)
4.Carriagescrew(2)10.U-nut(16)16.Hexheadscrew,5/16x1-1/4inch(16)
5.Drainvalvemountbracket
11.Centerboombracket(2)
6.Flangenut,5/16inch(2)
12.Regulatorydecal
4
