Toro multicycle 20636 - Lubricating the Wheel Gears; Adjusting the Self-Propel Drive

LubricatingtheWheelGears
ServiceInterval:Yearly—Lubricatethewheelgears.
1.Removethewheelboltsontherearwheelsand
removetherearwheels.
2.Applyalubricatingoiltothegearasshownin
Figure25.

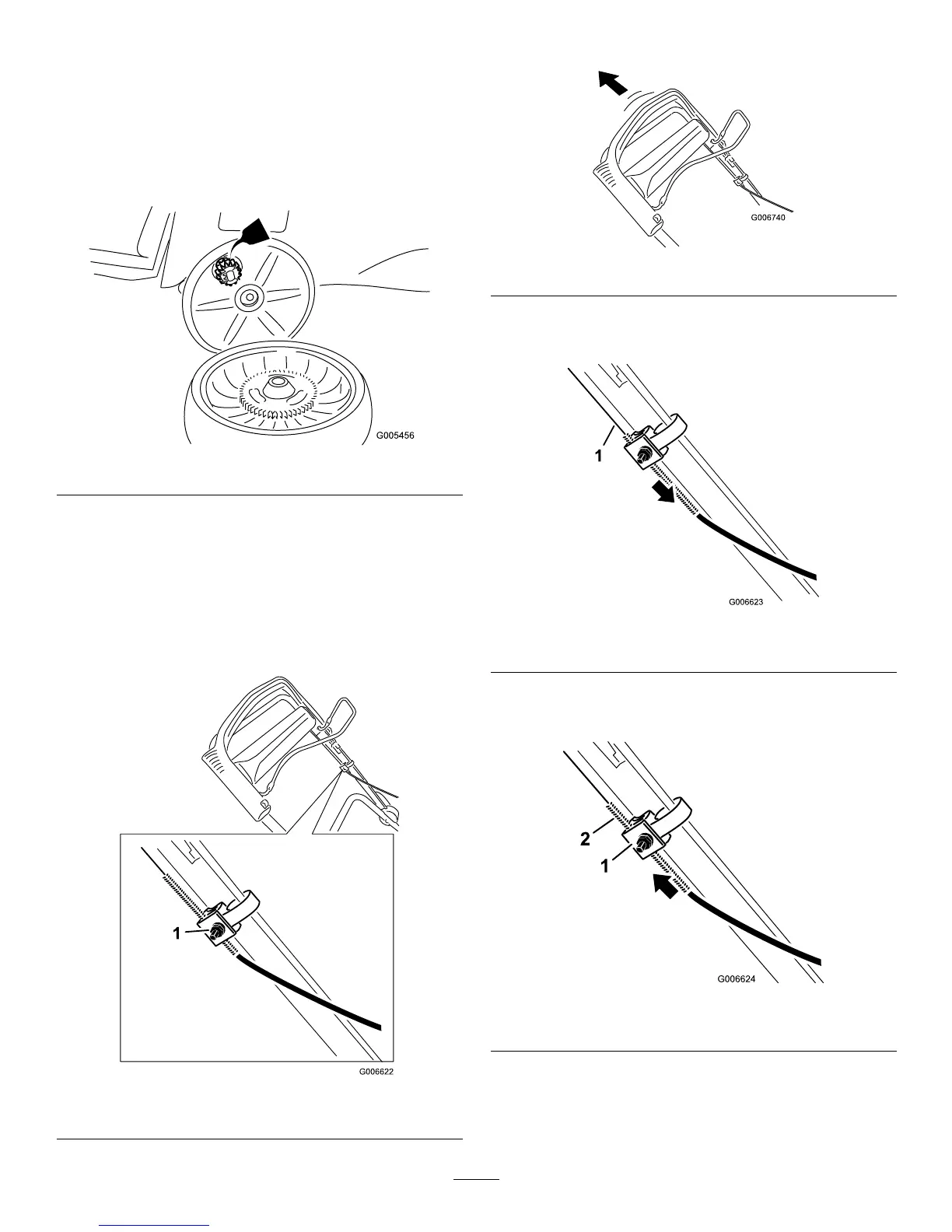

Figure25
3.Installtherearwheels.
AdjustingtheSelf-propelDrive
Ifyourmowerdoesnotself-propelproperly,adjustthe
self-propeldrivecable.
1.Loosenthenutonthecablemount(Figure26).
Figure26
1.Nutoncablemount
2.Pulltheupperhandlebackfullyrearward(Figure27).
Figure27
3.Pullthecablejacketdownwarduntilyouremovethe
slackintheexposedcable(Figure28).
Figure28
1.Exposedcable
4.Pushthecablejacketupward3/16inch(5mm)
(Figure29).
Figure29
1.Cablemount2.Cablejacket
Note:Youcanplacearuleragainsttheupperside
ofthecablemountandmeasurehowfartheupper
endofthecablejacketmoves.
13
