Toro ProCore 648 Installation Instructions

2

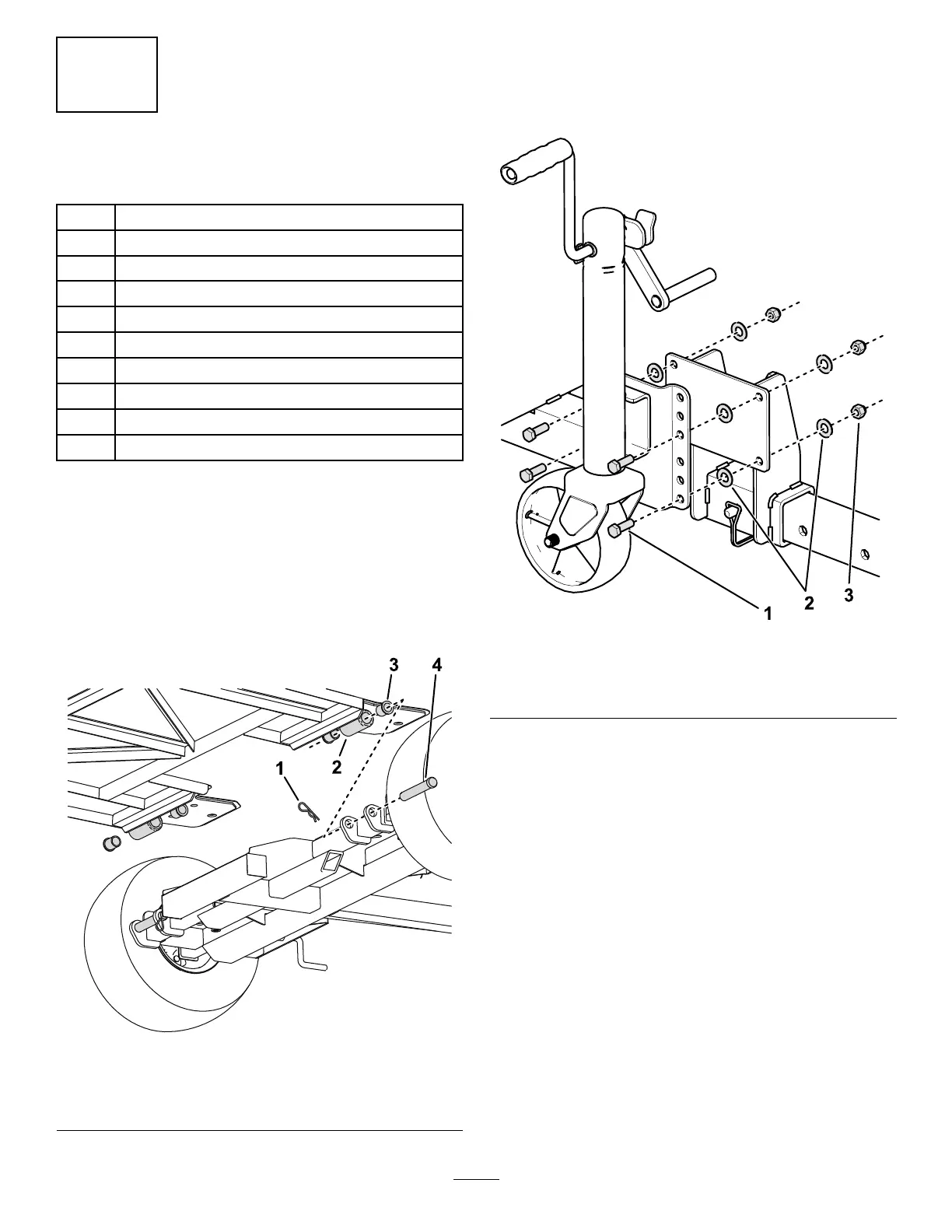

Assembling the T railer
Parts needed for this procedure:
1 Hitch tube
3
Clevis pins
1 Ramp
4 Flange bushing
2 Ramp pin
2 Hairpin
1 Jack
4
Bolt (3/8 x 1-1/8 inch)
8
W asher (7/16 inch)
4
Locknut (3/8 inch)
Procedure
1. Insert the hitch tube to the frame; refer to
Adjusting the T railer T ongue ( page 5 ) .
2. Install the ange bushings to the pivot hub at
the bottom of the ramp.
3. Install the ramp to the frame using the ramp pins
and hairpins as shown in Figure 2 .
g454237
Figure 2
1. Hairpin 3. Flange bushing
2. Ramp pivot hub 4. Ramp pin
4. Install the jack to the bracket on the trailer frame
tube as shown in Figure 3 .
Note: Install the jack using the lowest set of
holes to maximize ground clearance.
g462003
Figure 3
1. Bolt (3/8 x 1-1/8 inch) 3. Locknut (3/8 inch)
2. W asher (7/16 inch)
5. Install the storage pins removed in 1 Removing
the Crate ( page 3 )
through the top of the ramp and wheel plate to
hold the ramp in the raised position.
4

Toro ProCore 648 Specifications

General

Aerating Width	48 inches
Fuel Capacity	6 gallons
Transmission	Hydrostatic
Aerating Depth	Up to 4 inches
Hole Spacing	3 inches
