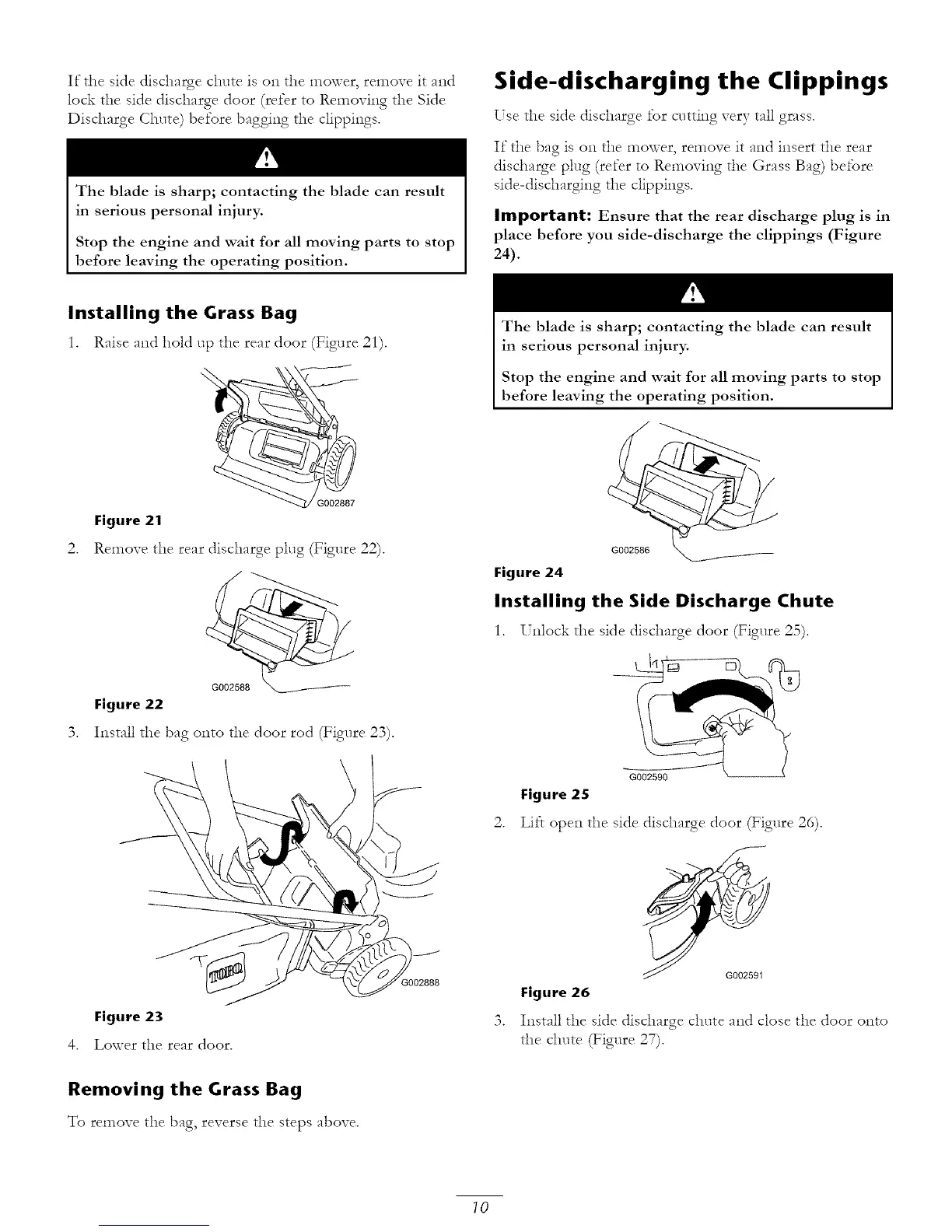

If the side discharge chute is on the mower, remove it and
lock tile side discharge door (refer to Removing tile Side
Discharge Chute) before bagging the clippings.
The blade is sharp; contacting the blade can result
in serious personal injury.
Stop the engine and wait for all moving parts to stop
before leaving the operating position.
Side-discharging the Clippings
[se tlle side discharge for cutting ver_ tall grass.
If tlle bag is on tlle mower, remove it and insert tlle rear
discharge plug (refer to Removing tlle Grass Bag) before
side-discharging tile clippings.
Important: Ensure that the rear discharge plug is in
place before you side-discharge the clippings (Figure
24).
Installing the Grass Bag
i. Raise and hold up tile rear door (Figure 2i).
3002887
Figure 21
2. Remove tile rear discharge plug (Figure 22).
G002588 "_"_
Figure 22
3. Install the bag onto the door rod (Figure 23).
4.
Figure 23
Lower tile rear door.
b
_'8
The blade is sharp; contacting the blade can result
in serious personal injury.
Stop the engine and wait for all moving parts to stop
before leaving the operating position.
G002586
Figure 24
Installing the Side Discharge Chute
i. [ nlock tile side discharge door (Figure 25).
G002590
Figure 25
2. Lift open tile side discharge door (Figure 26).
Figure 26
3. Install the side discharge chute and close the door onto
tlle chute (Figure 27).
Removing the Grass Bag
To remove tile bag, reverse tile steps above.
10
