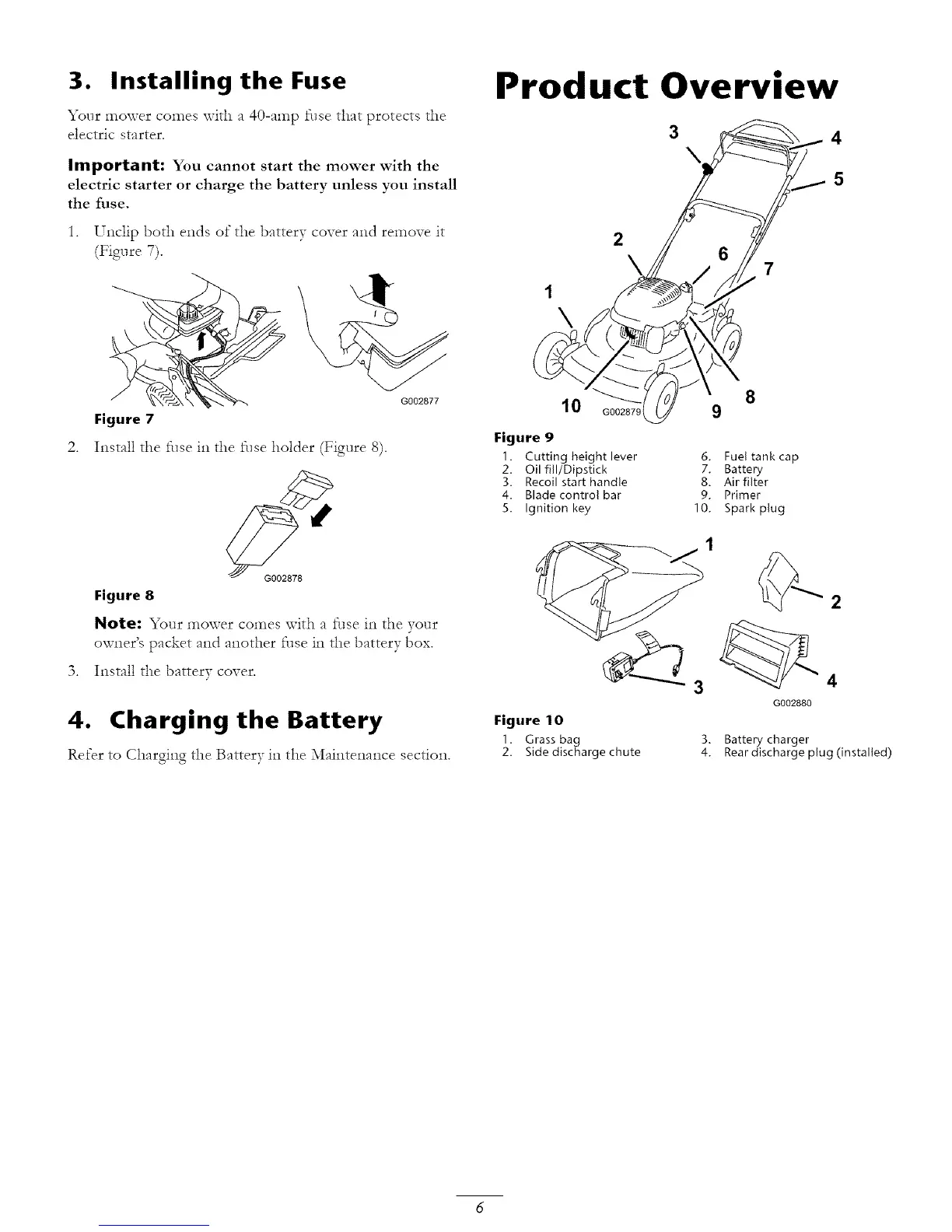

3. Installing the Fuse
_X_t]r mower comes with a 40-amp fuse that protects the
electric starter.
Important: You cannot start the mower with the
electric starter or charge the battery unless you install
the fuse.
1. Unclip both ends of tile batterx cover and remove it
(Figure 7).
G002877
Figure 7
2. Install tlle fuse in tlle fuse holder (Figure 8).
G002878
Figure 8
Note: _ur mower comes with a fuse in the _our
owner's packet and another fuse in tile batter_ box.
Install tile batter_ cover.
4. Charging the Battery
Refer to Charging the Batter_ in the Maintenance section.
Product Overview
4
5
1
\
8
10 G002879 9
Figure 9
1. Cutting height lever 6. Fuel tank cap
2. Oil fill/Dipstick 7. Battery
3. Recoil start handle 8. Air filter
4. Blade control bar 9. Primer
5. Ignition key 10. Spark plug
1 2
G002880
Figure 10
1. Grass bag 3. Battery charger
2. Side discharge chute 4. Rear discharge plug (installed)
