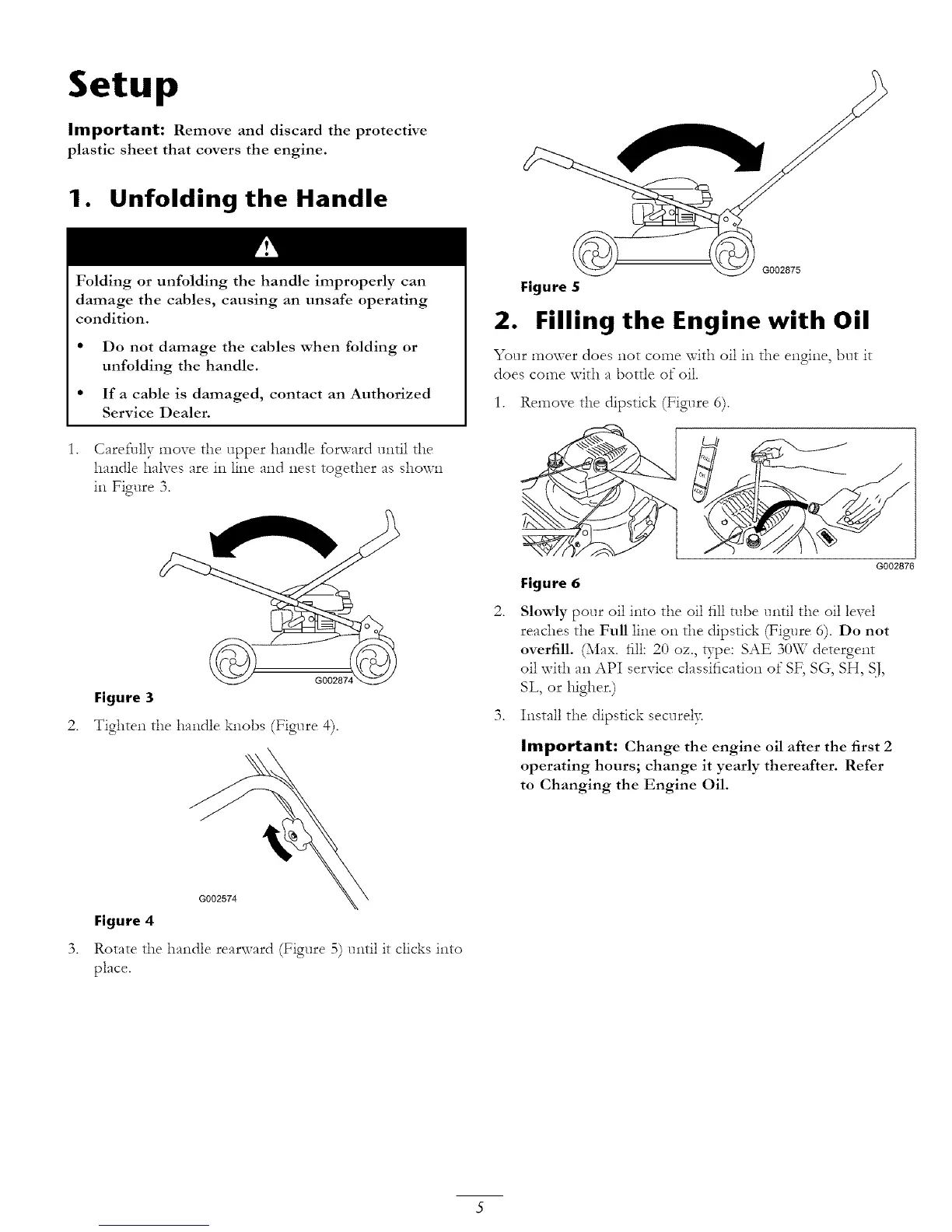

Setup
Important: Remove and discard the protective
plastic sheet that covers the engine.
1. Unfolding the Handle
Folding or unfolding the handle improperly can
damage the cables, causing an unsafe operating
condition.
• Do not damage the cables when folding or
unfolding the handle.
• If a cable is damaged, contact an Authorized
Service Dealer.
1. Careflflh move tile upper handle forward until tile
handle halves are in line and nest together as shown
in Figure 3.
Figure 5
2. Filling the Engine with Oil
_X%urmower does not come with oil in the engine, but it
does come with a bottle of oil.
1. Remove the dipstick (Figure 6).
G002874
Figure 3
2. Tighten the handle knobs (Figure 4).
Figure 4
3. Rotate the handle rearward (Figure 5) until it clicks into
place.
G002876
Figure 6
2. Slowly pour oil into the oil fill tube until the oil level
reaches the Full line on the dipstick (Figure 6). Do not
overfill. (Max. fill: 20 oz., Vpe: SAE 30W detergent
oil with an API service classification of SF, SG, SH, SJ,
SL, or lflgher.)
3. Install the dipstick secure1>
Important: Change the engine oil after the first 2
operating hours; change it yearly thereafter. Refer
to Changing the Engine Oil.
