EngineMaintenance
ServicingtheAirCleaner
ServiceInterval:Beforeeachuseordaily—Check
theairlter
Every50hours—Servicetheairlter
Every600hours/Every2years(whichever
comesrst)—Replacetheairlter.
Thecycloneairltercollectsthelargestcontaminant
particles,whichcollectinthecontainer.Whenyou
canseealayerofdirtatthebottomofthecontainer,
cleanthecyclonehousing,airchannels,andair-intake
screen.
ServicingtheCycloneHousing
1.Parkthemachineonalevelsurfaceandengage
theparkingbrake.
2.Shutofftheengineandwaitforallmovingparts
tostop.
3.Removethe3screwsholdingthecyclone
housingtotheair-cleanercover.
4.Removethehousingwiththeair-intakescreen
andremovetheairchannels.

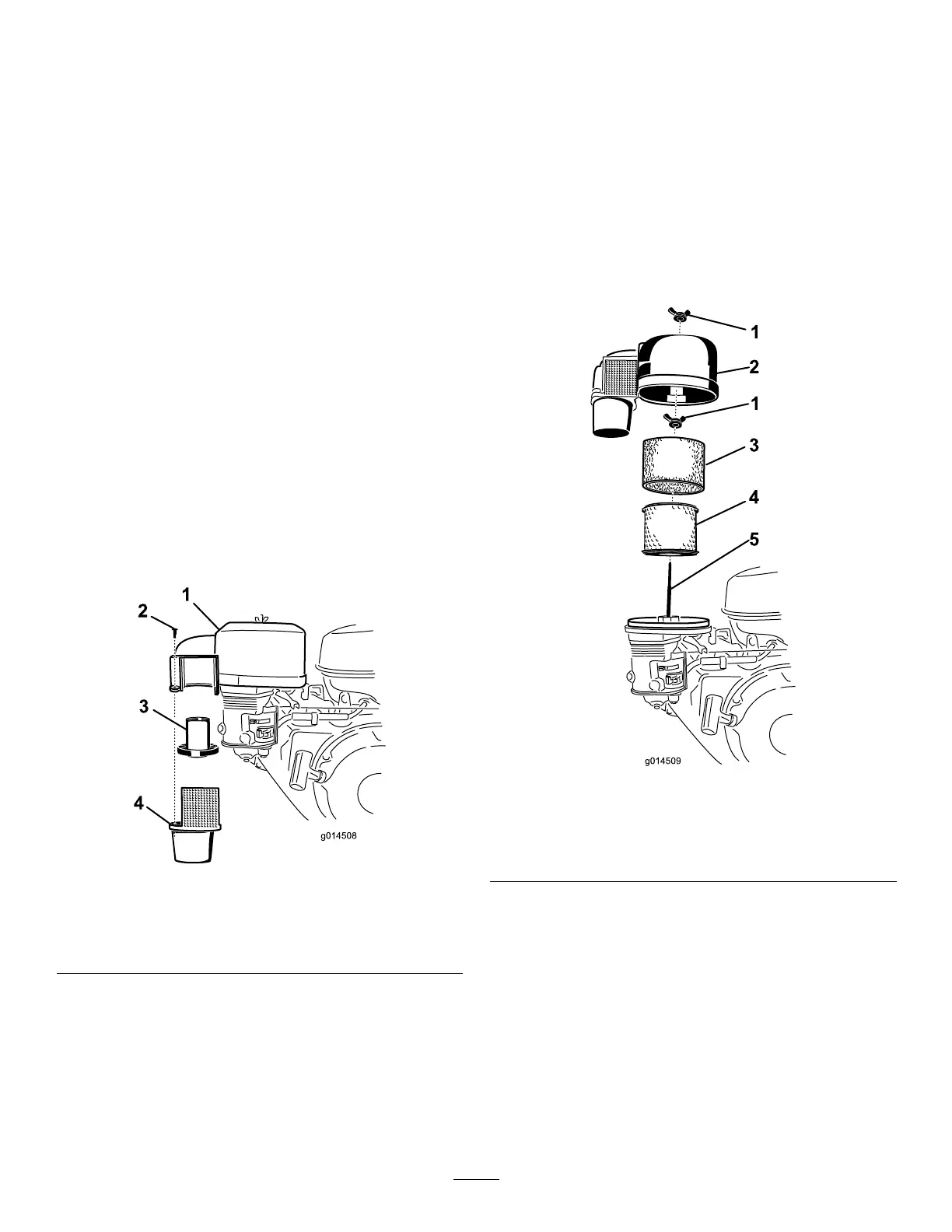

g014508
Figure14
1.Air-cleanercover3.Airchannels
2.Screw4.Cyclonehousingwith
air-intakescreen
5.Cleanthecomponentswithwater,detergent,
andabrushthendrythecomponentscarefully.
6.Placetheairchannelsinthecyclonehousing.
7.Insertcyclonehousingintopositionandmake
surethatittsintheupperportion.
Important:Donotuseforce;alignitinplace
beforettingthescrews.
8.Securethecyclonehousingusingthe3screws.
ServicingtheAir-CleanerElements
RemovingtheFoamandPaperElements
1.Parkthemachineonalevelsurfaceandengage
theparkingbrake.
2.Shutofftheengineandwaitforallmovingparts
tostop.
3.Removethewingnutandliftofftheair-cleaner
coverwiththeair-ltercowling(Figure15).
g014509
Figure15
1.Wingnut4.Paperelement
2.Air-cleanercover
5.Stud
3.Foamelement
4.Removethefoamelement(Figure15).
5.Removethewingnutontopofthepaper
elementandremovethepaperelement(Figure
15).
14
