Toro SGR-13 Operator's Manual

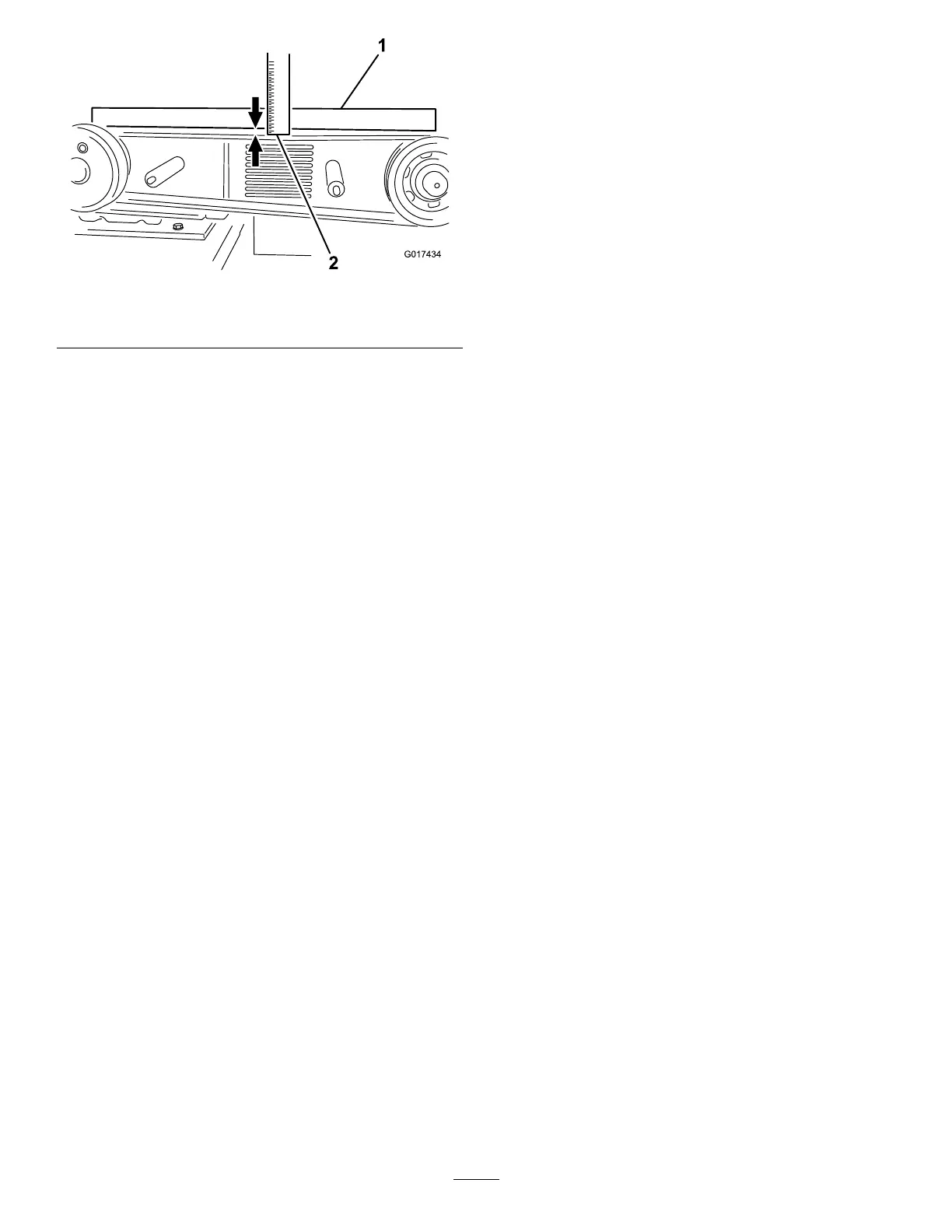

g017434
Figure28
1.Straightedge2.Flexof1cm(0.40inch)
9.Ensurethatthepulleysarealignedandthe
engineisparallelwiththeframe(notangled
towardtheside),thentightenthe4engine-plate
mountingboltsandthe4boltssecuringtherear
ofthebeltguardtotheengine.
10.Installthebeltguardandtightenthebolts
(Figure25).
ReplacingtheDriveBelt
ServiceInterval:Every100hours
Note:Replacethebeltifitshowsanysignsofwear,
cracks,glazing,ordamage.
1.Parkthemachineonalevelsurfaceandengage
theparkingbrake.
2.Shutofftheengineandwaitforallmovingparts
tostop.
3.Loosentheboltssecuringthebeltguardto
machineuntilyoucanremovethebeltguard.
4.Removethebeltguard(Figure25).
5.Loosenthe4engine-platemountingboltsand
the2boltssecuringtherearofthebeltguardto
theengine(Figure26andFigure27).
6.Loosenthebelttensionboltandjamnutand
slidetheenginetowardtheywheelhousingto
loosenthebelt(Figure27).
7.Replacethedrivebelt.
8.Adjustthetensionofthenewbeltto8kg(18
lb)forceand10mm(0.40inch)beltdeection
atmid-span;refertoAdjustingtheDrive-Belt
Tension(page20)..
9.Tightenthe4engine-platemountingboltsand
the4boltssecuringtherearofthebeltguard
totheengine.
10.Installthebeltguardandsecureitwiththe
previouslyremovedwashersandbolts.
21

Toro SGR-13 Specifications

General

Cutting Height	Adjustable
Number of Teeth	12
Grind Speed	3600 RPM
Fuel Type	Gasoline
Engine	Honda
