Toro® - SnowMaster® Service Manual 3-7
Chassis
3
Table of Contents
CHASSIS
A. Rotor Center Support
B. Paddle
Torque to 60-80 in-lbs. (7-9 Nm)
Torque to 40-60 in-lbs. (4-7 Nm)
Paddles, item B, should be assembled with wear
indicator holes in positions shown, when viewed from
front.
1
2
3
Tighten center screw rst when assembling rotor
paddles. Torque to 45-55 in-lbs.
Insure rotor assembly, rotates freely after completely
installed in frame. Rotor cannot make contact with
frame or ground surface.
4
5
A
B
1
2
3
4
3
3
4
4
4
4
5

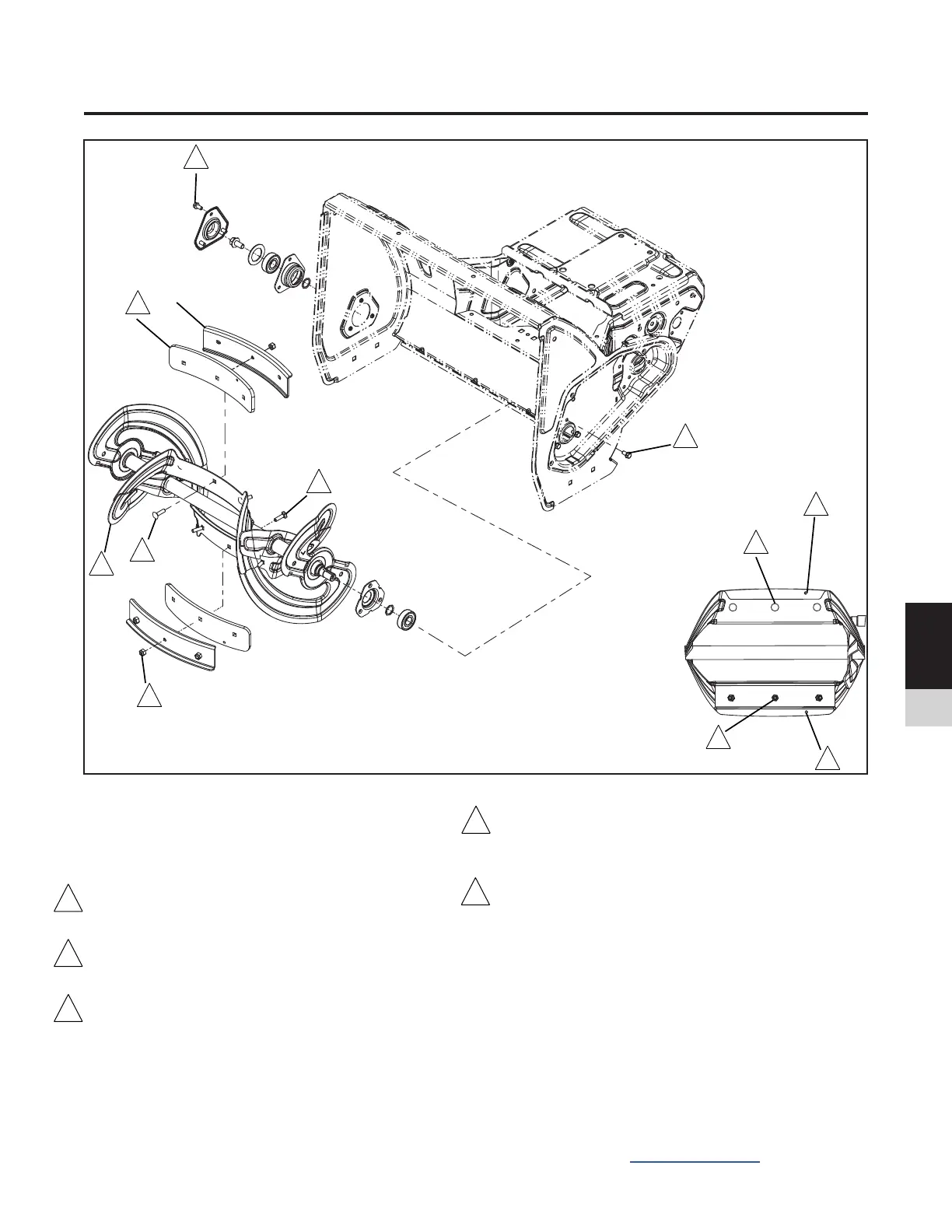

Figure 22
Rotor and Rotor Drive
