Toro® - SnowMaster® Service Manual
3-6 Table of Contents
CHASSIS
Belt Removal & Replacement
Removal
1. Remove the bolts securing the belt cover and
remove the cover (Figure 18).
2. Unhook the brake spring clip and remove the clip
and spring.
3. Remove the Rotor Pulley bolt and pull the Rotor
Pulley out (Figure 19).
4. Work the belt off the jackshaft pulley, remove rotor
pulley and belt.
Replacement
1. Start the belt over the jackshaft pulley. Route the
belt under the idler pulley and between the tabs on
the rotor clutch arm. Route the belt over the rotor
pulley (Figure 20).
2. Slide the rotor pulley onto the rotor shaft. Apply
loctite® 243 to the bolt, install the washer and bolt.
Torque to 96 in-lbs. (11 Nm) (Figure 21).
3. Install the belt cover. Torque bolt to 60-80 in-lbs.
(7-9 Nm).
NOTE: Match the orientation of rotor pulley with
the above image to prevent putting rotor
pulley on backwards.

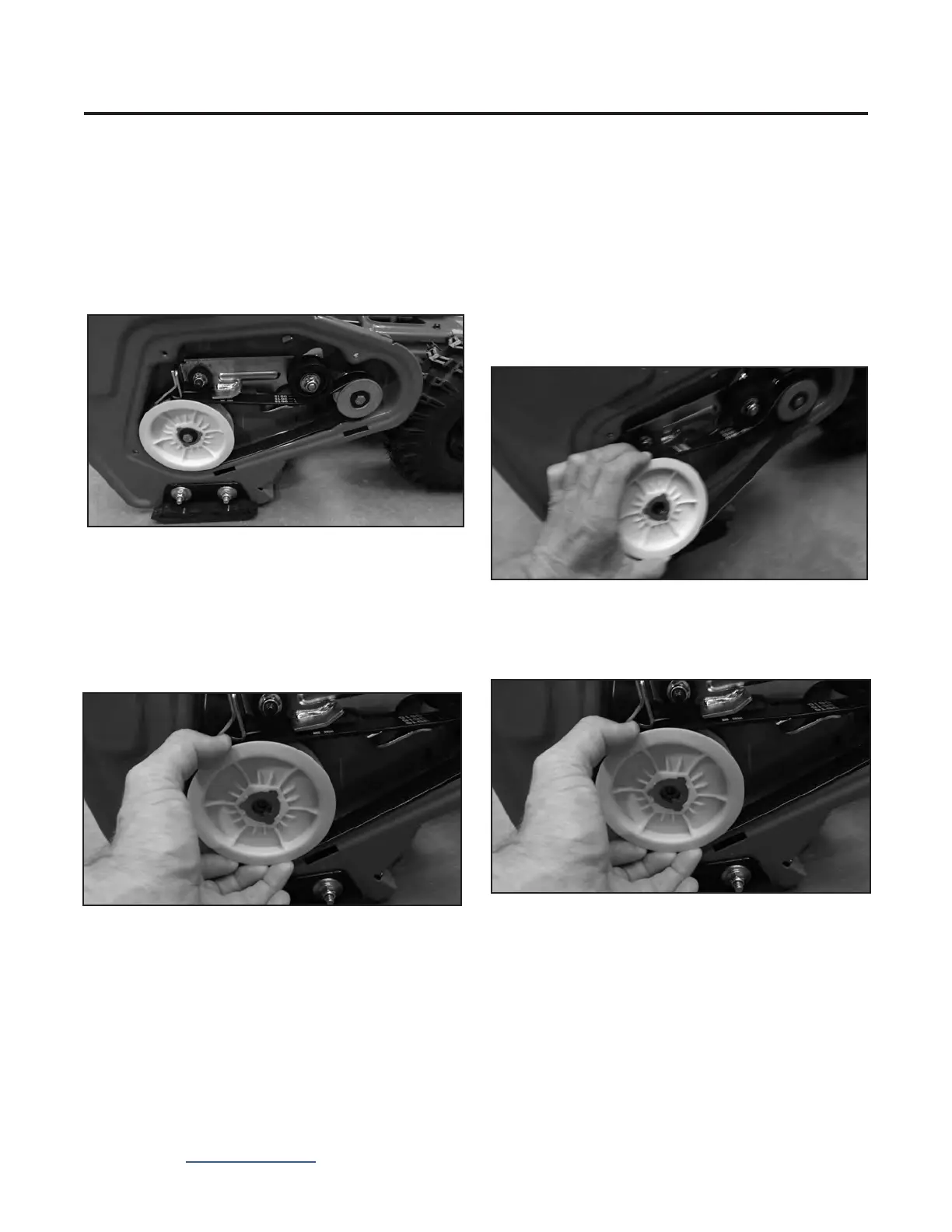

Figure 19
Figure 18
Figure 20
Figure 21
