EngineInstallation(continued)

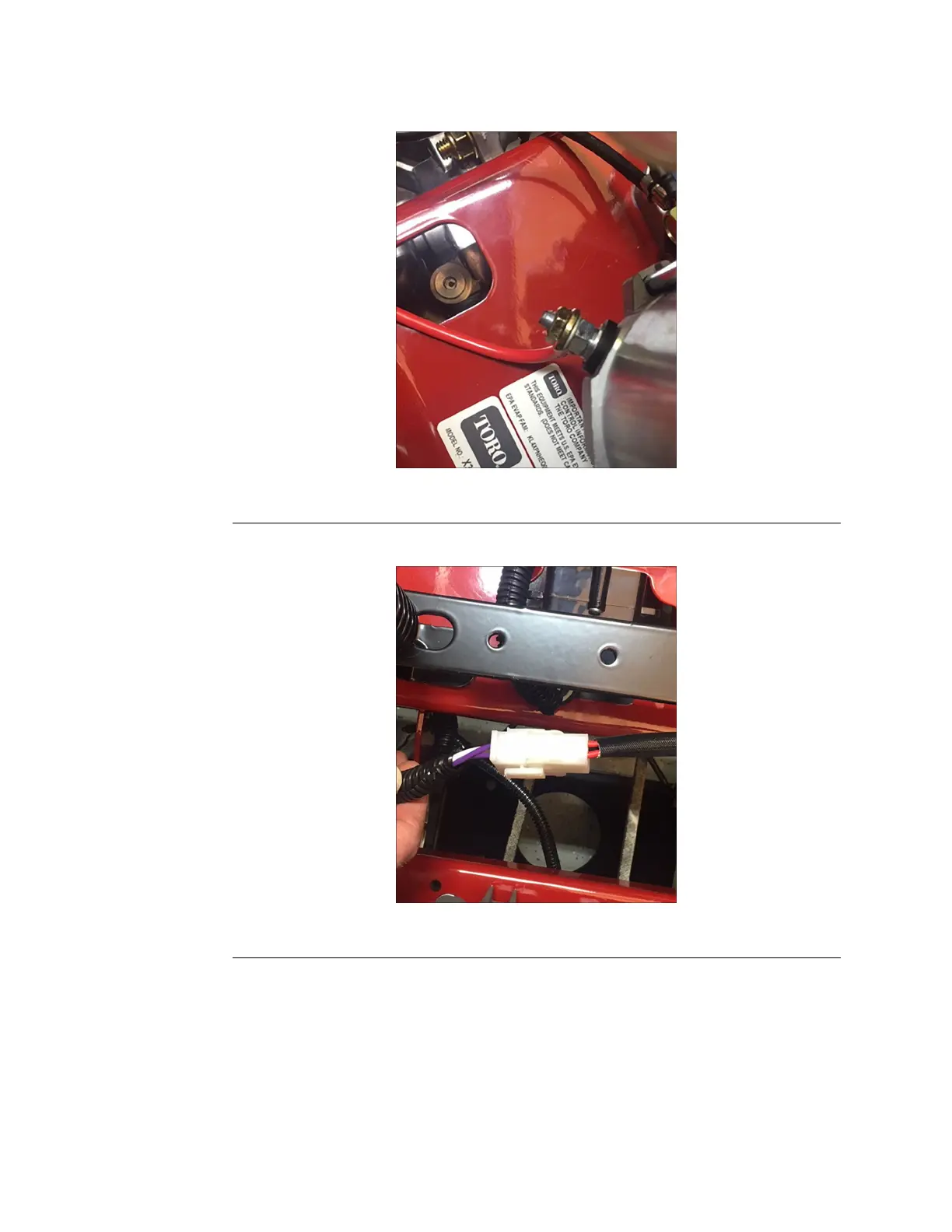

13.Installthe10mmnutsecuringthestarterpowerwiretothestarter.T orque
nutto10.5–11.5Nm(96–105in-lb).
g300618
Figure29
14.Connecttheenginetochassiswiringharness.
g300617
Figure30
15.Installthefueltankventhosetothefueltankventorice.
Engine:ServiceandRepairs
Page4–18
TIMECUTTER®ServiceManual
3433-938RevA
