Toro TimeCutter SS 3200 - Product Component Overview

ProductOverview
G014525
1
2
3
4
5
6
7
8
9
7
10
11
12
13

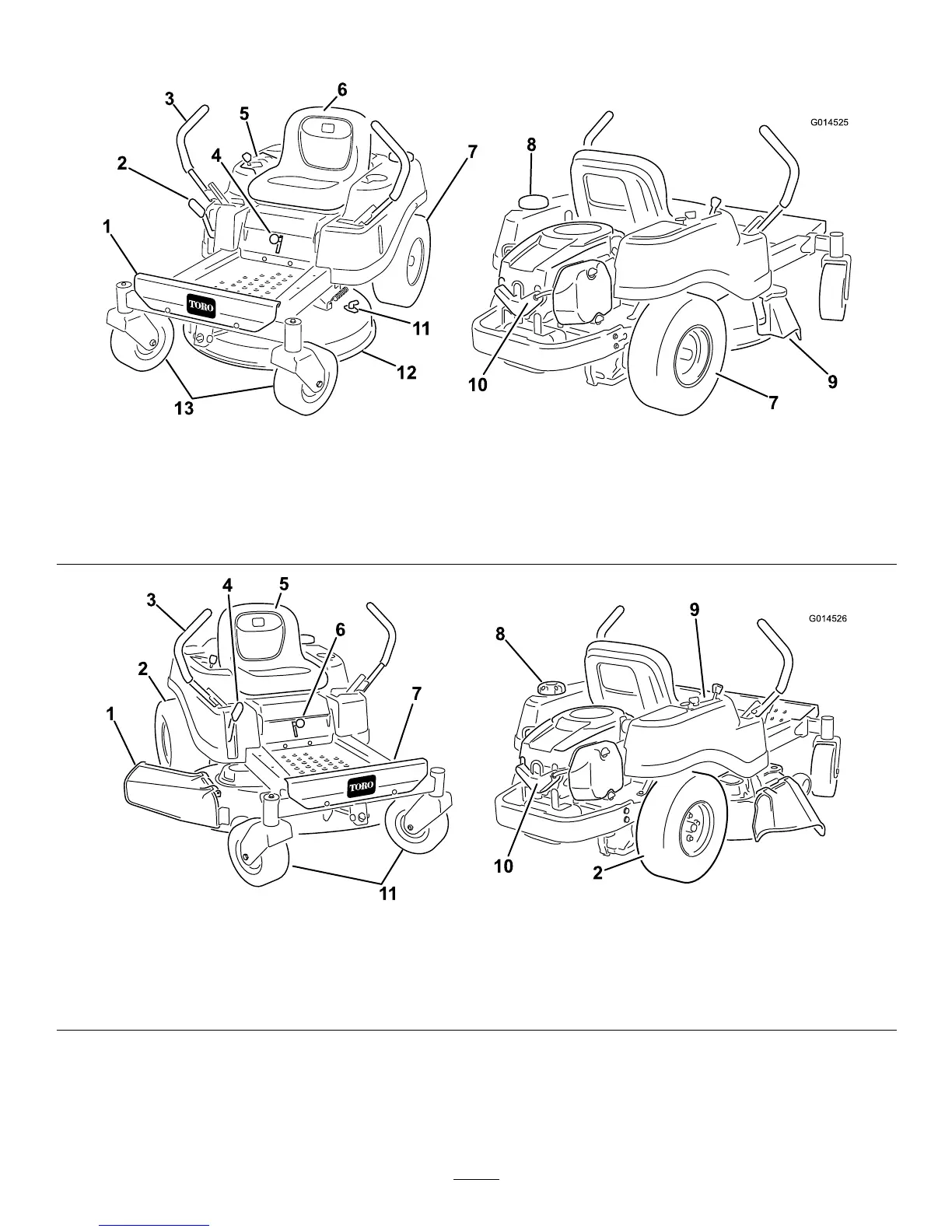

Figure4
Modelswith32inchdecks
1.Footrest
5.Controlpanel9.Deector
13.Frontcasterwheel
2.Heightofcutlever6.Operatorseat
10.Engine
3.Motioncontrollevers7.Reardrivewheel
11.Washouttting
4.Smartspeedlever
8.Fueltankcap12.Mowerdeck
G014526
1
2
3
4
5
6
7
8
9
10
11
2
Figure5
Modelswith42inchdecks
1.Deector4.Heightofcutlever
7.Footrest10.Engine
2.Reardrivewheel
5.Operatorseat
8.Fueltankcap11.Frontcasterwheel
3.Motioncontrollevers
6.Smartspeedlever9.Controlpanel
12
