FillingtheFuelTank
Makesuretheengineisshutoffandthemotion
controlsareintheparkposition.Tankmaximum
capacityis2.9gallons.
Important:DoNotoverllfueltank.Fillthe
fueltanktothebottomofthellerneck.The
emptyspaceinthetankallowsthefueltoexpand.
Overllingmayresultinfuelleakageordamageto
theengineoremissionsystem.
1.Cleanaroundthefueltankcapandremovethecap.
Note:Youcanusethefuelwindowonthepod
verifythepresenceofgasolinebeforellingthe
tank(
Figure10).
2.Slowlyaddregular,unleadedgasolineuntilthefuel
reachesthebaseofthellerneck(Figure10).

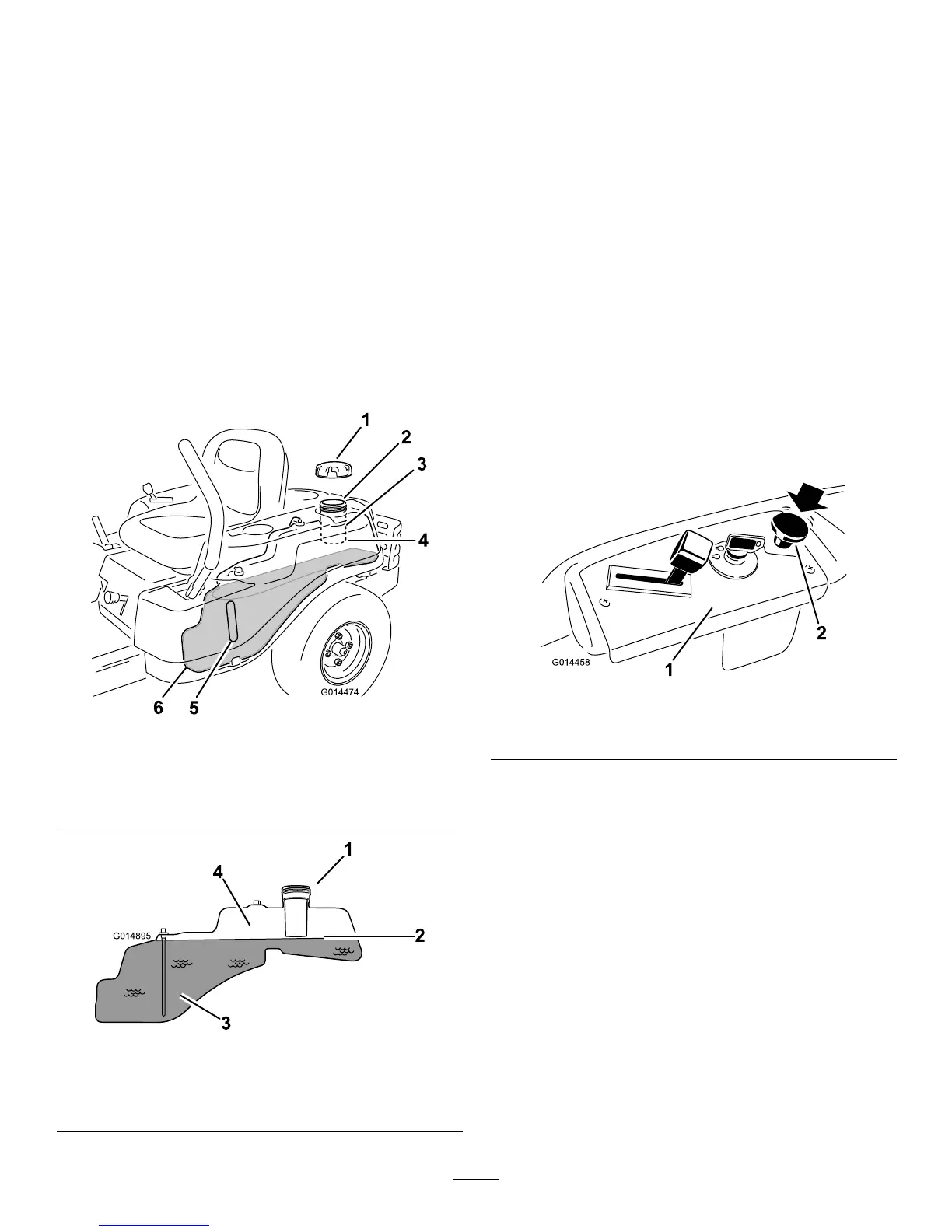

G014474
1
2
3
4
5
6
Figure10
1.Fueltankcap
4.Baseofllerneck,DO
NOTFILLPASTHERE
2.Fillopening5.Fuelwindow
3.Fillerneck
G014895
1
2
3
4
Figure11
1.Fillopening3.Fuel
2.Baseofllerneck,DO
NOTFILLPASTHERE
4.Emptyspaceforfuel
expansion.
Important:DoNotoverllfueltank.Fill
thefueltanktothebottomofthellerneck.
Theemptyspaceinthetankallowsthefuelto
expand.Overllingmayresultinfuelleakage
ordamagetotheengineoremissionsystem.
3.Installthefueltankcapsecurelyandtightenuntilit
“clicks”.Wipeupanygasolinethatmayhavespilled.
CheckingtheEngineOilLevel
Beforeyoustarttheengineandusethemachine,check
theoillevelintheenginecrankcase;refertoChecking
theOilLevelintheEngineMaintenancesection.
StartingtheEngine
1.Sitdownontheseatandmovethemotioncontrols
outwardtotheparkposition.
2.Disengagethebladesbymovingthebladecontrol
switchtoOff(
Figure12).
G014458
1
2
Figure12
1.Controlpanel2.Bladecontrolswitch—Off
position
3.MovethethrottlelevertoChokebeforestartinga
coldengine(Figure13).
Note:Awarmorhotenginemaynotrequire
choking.
