Pre-Maintenance
Procedures
RaisingtheSeat
Makesurethatthemotion-controlleversarelockedin
thePARKposition.Lifttheseatforward.
Youcanaccessthefollowingcomponentsbyraising
theseat:
•Serialplate
•Servicedecal
•Seat-adjustmentbolts
•Fuellter
•Batteryandbatterycables
Lubrication
GreasingtheBearings
ServiceInterval:Every25hours—Greaseall
lubricationpoints.
GreaseType:No.2lithiumgrease
1.Parkthemachineonalevelsurfaceand
disengagetheblade-controlswitch.
2.Movethemotion-controlleversoutwardtothe
PARKposition,shutofftheengine,removethe
key,andwaitforallmovingpartstostopbefore
leavingtheoperatingposition.
3.Cleanthegreasettings(Figure26andFigure
27)witharag.
Note:Makesuretoscrapeanypaintoffthe
frontofthetting(s).

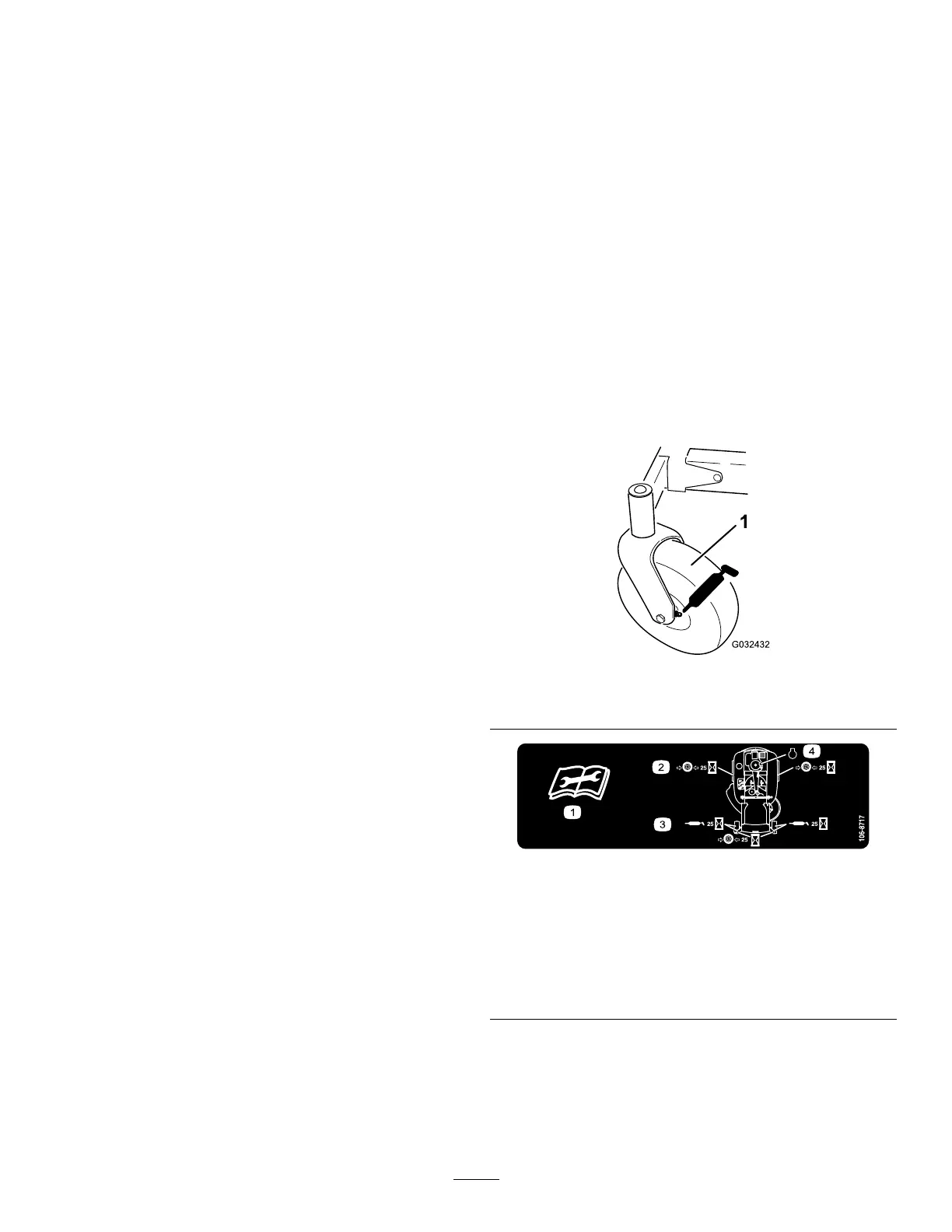

g032432
Figure26
1.Frontcastertire
decal106-8717
Figure27
Locatedontheseat-panunderside
1.Readtheinstructions
beforeservicingor
performingmaintenance.
3.Greaseevery25operating
hours.
2.Checkthetirepressure
every25operatinghours.
4.Engine
4.Connectagreaseguntoeachtting(Figure26
andFigure27).
5.Pumpgreaseintothettingsuntilgreasebegins
tooozeoutofthebearings.
