6 - 14 TimeCutter™ Z Service Manual
CHASSIS
6

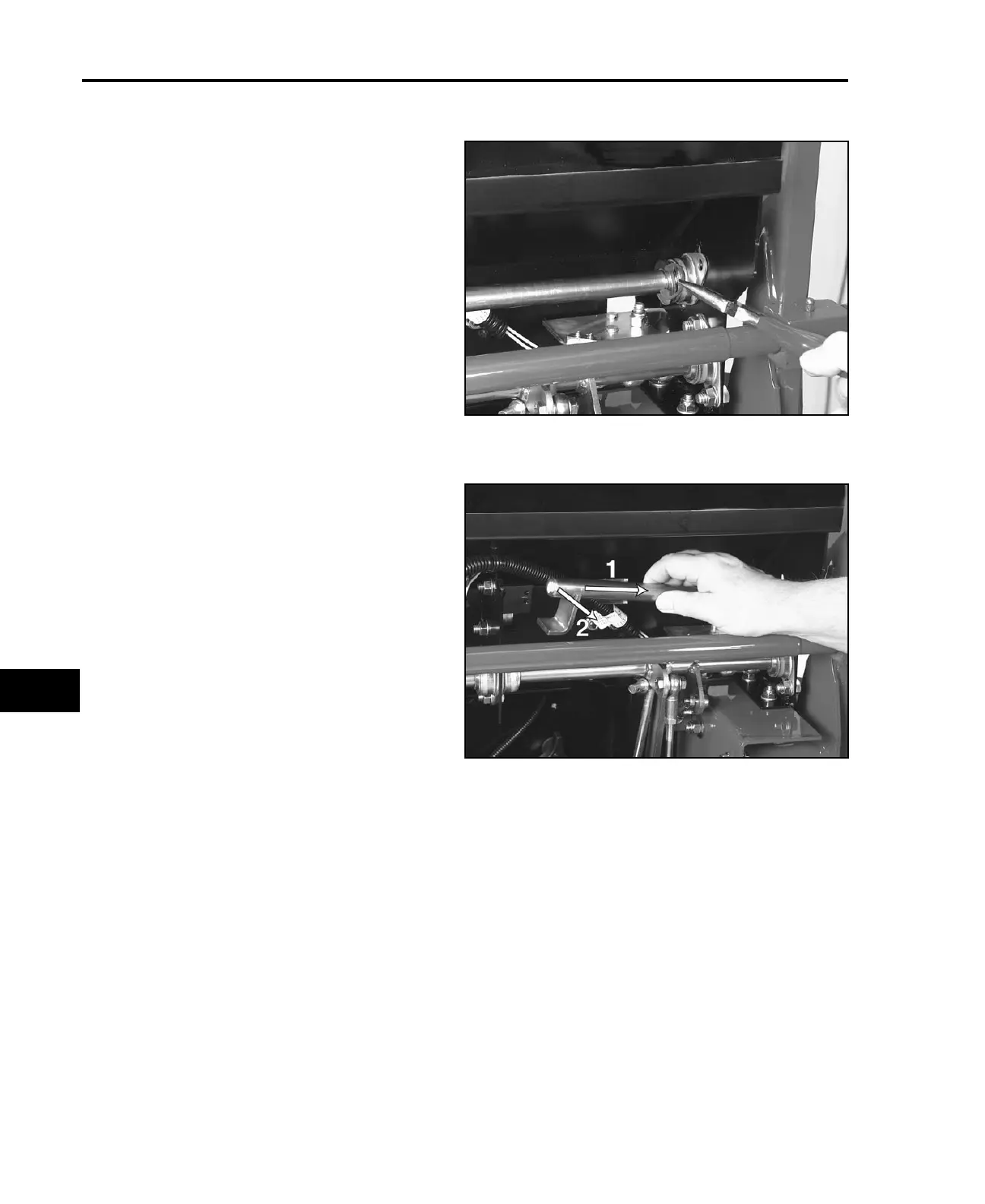

Remove the E-clip from the brake shaft.
To remove the bellcrank, first slide it to the
(operator’s) left then down.
0702-0623
0702-0624
