CHASSIS
TimeCutter™ Z Service Manual 6 - 15
6

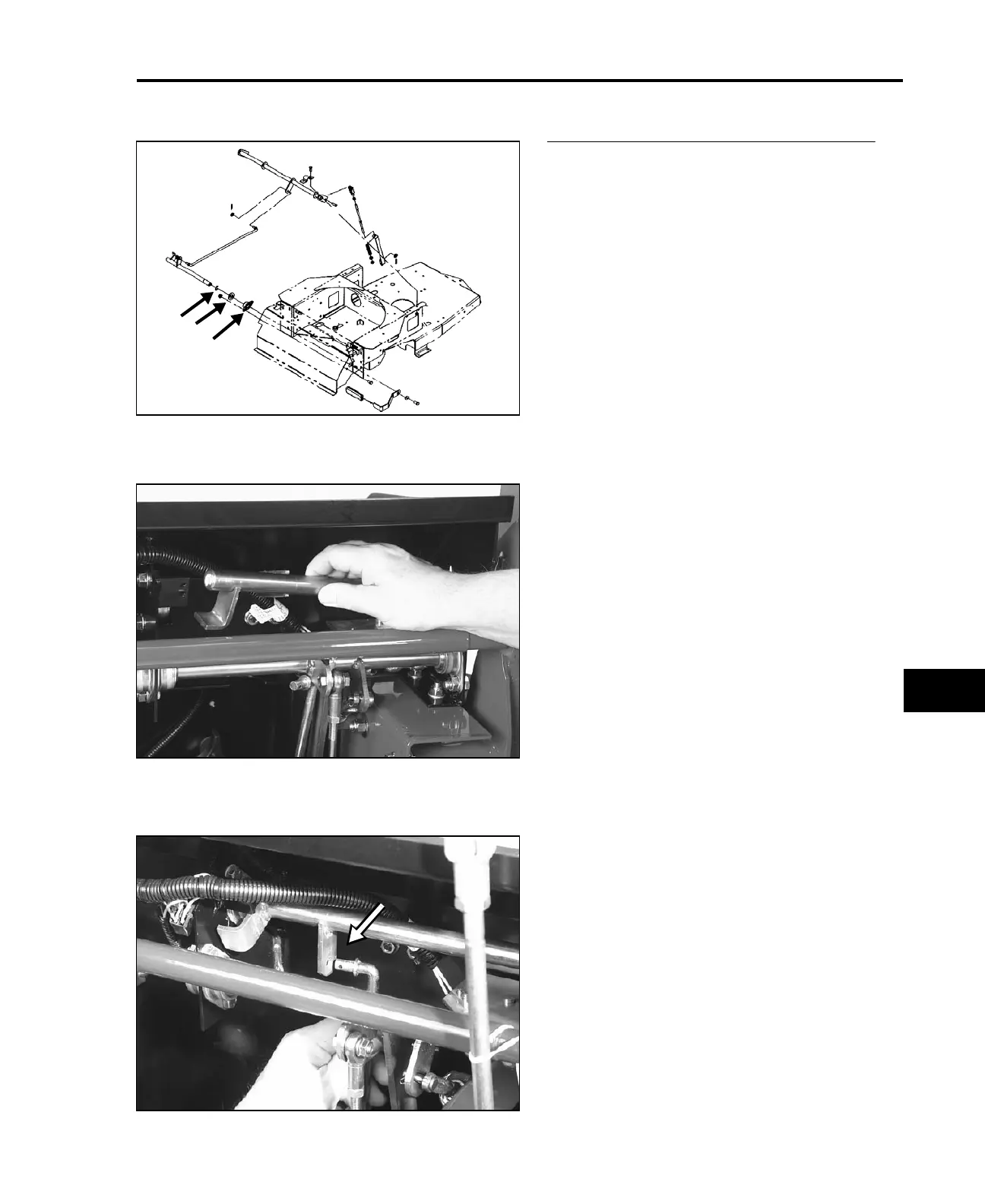

Place bearings, E Ring, and washer on the
forward brake shaft.
Position the brake shaft in the console. Secure
with nuts and bolts. Install bolts from the outside.
NOTE: Make sure shaft rotates freely after
installation.
Connect the brake rod to the brake shaft lever.
Secure with the cotter pin and washer.
0702-0625
0702-0626
0702-0621
Replace Brake Linkage
