ELECTRICAL SYSTEMS
TimeCutter™ Z Service Manual 8 - 5
8

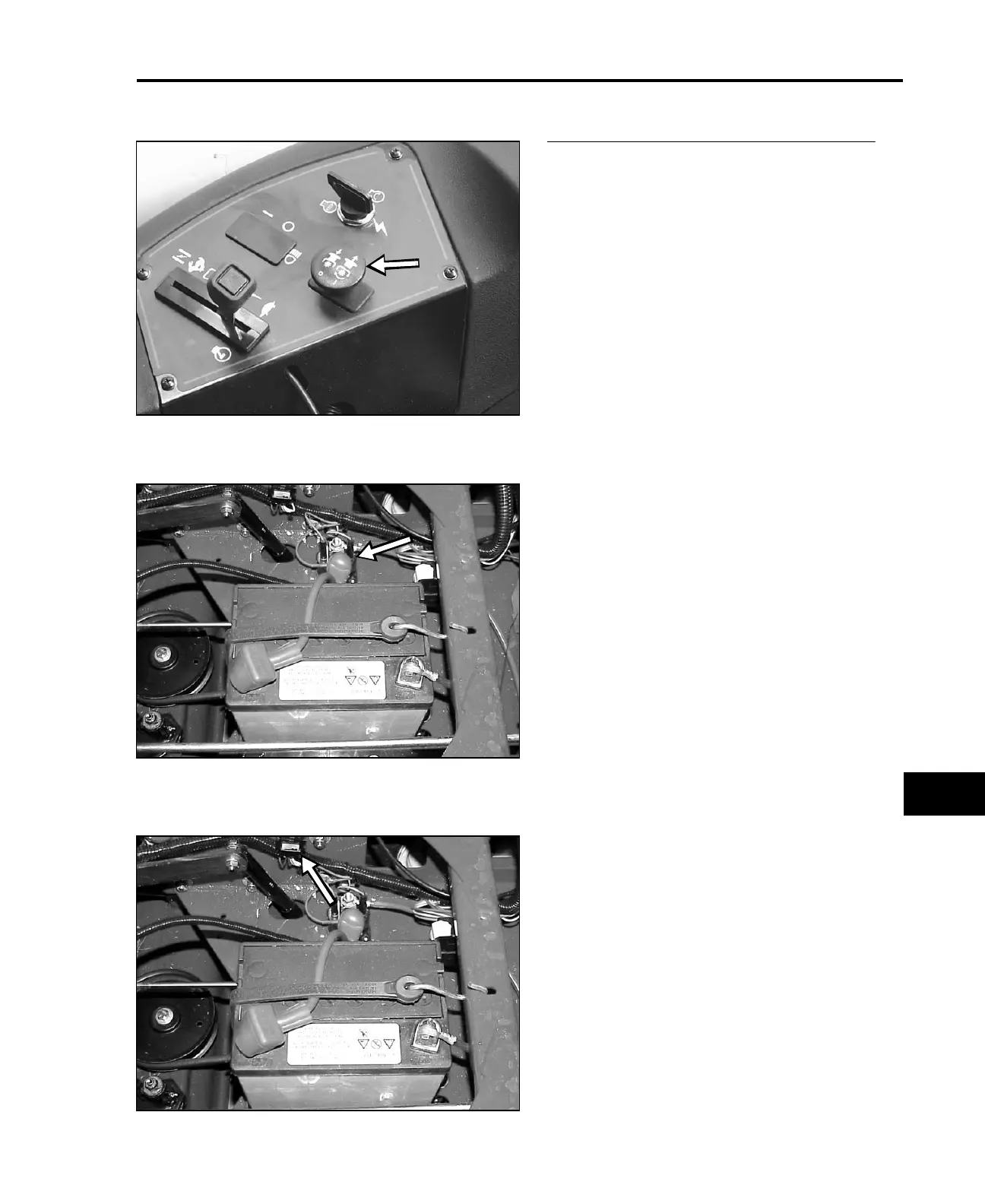

The PTO switch routes power to the electric
clutch when in the on position and to the kill relay
through the brake switch when in the off position.
The start solenoid connects the battery to the
starter motor.
The kill relay connects the engine magneto to
ground whenever it is not energized.
0702-0805
0702-0812
0702-0812
Electrical Components
