4.Connectagreaseguntoeachtting(Figure23and
Figure24).Pumpgreaseintothettingsuntilgrease
beginstooozeoutofthebearings.
5.Wipeupanyexcessgrease.
EngineMaintenance
ServicingtheAirCleaner
ServiceInterval:Beforeeachuseordaily—Checkthe
aircleanerfordirty,looseordamaged
parts.
Thisengineisequippedwithareplaceable,highdensity
paperaircleanerelement.Checktheaircleanerdailyor
beforestartingtheengine.Checkforabuildupofdirt
anddebrisaroundtheaircleanersystem.Keepthisarea
clean.Alsocheckforlooseordamagedcomponents.
Replaceallbentordamagedaircleanercomponents.
Note:Operatingtheenginewithlooseordamagedair
cleanercomponentscouldallowunlteredairintothe
enginecausingprematurewearandfailure.
Note:Servicetheaircleanermoreoftenunder
extremelydusty,dirtyconditions.
G005300
1
2
3
4
1
2
3
4

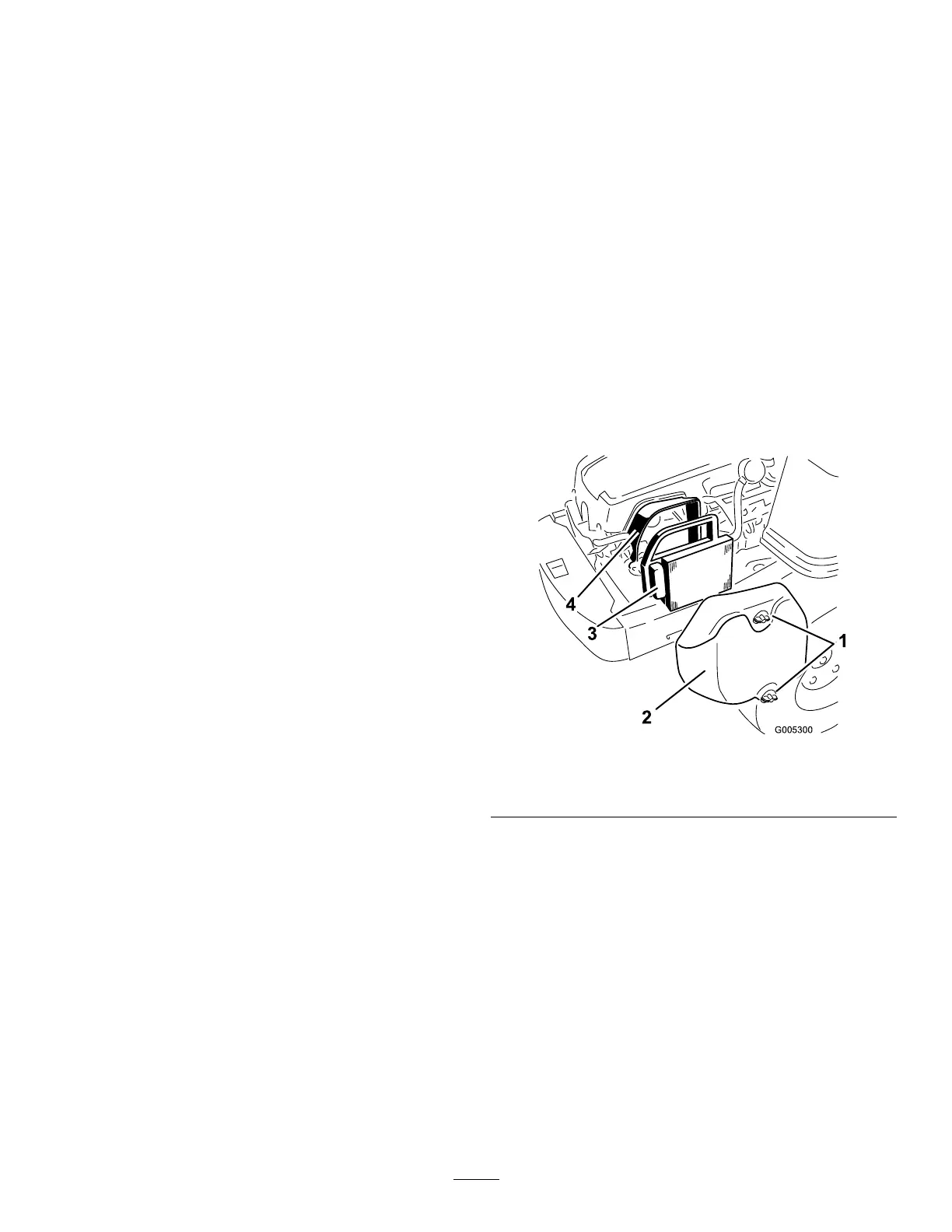

Figure25
1.Knobs,aircleanercover3.Paperelement
2.Aircleanercover4.Aircleanerbase
ServicingPaperElement
ServiceInterval:Every25hours—Servicethepaper
element.(moreoftenunderextremely
dusty,dirtyconditions)
Every100hours—Replacethepaper
element.(moreoftenunderextremely
dusty,dirtyconditions)
1.Removetheaircleanercover(Figure25).
2.Removetheaircleanerelementwiththeintegral
rubberseal(Figure25).
3.Gentlytapthepleatedsideofthepaperelementto
dislodgedirt.Donotwashthepaperelementor
usepressurizedair,asthiswilldamagetheelement.
