Toro TimeCutter Z5035 User Manual

Controls
BecomefamiliarwithallofthecontrolsinFigure4,
Figure5,andFigure6beforeyoustarttheengineand
operatethemachine.

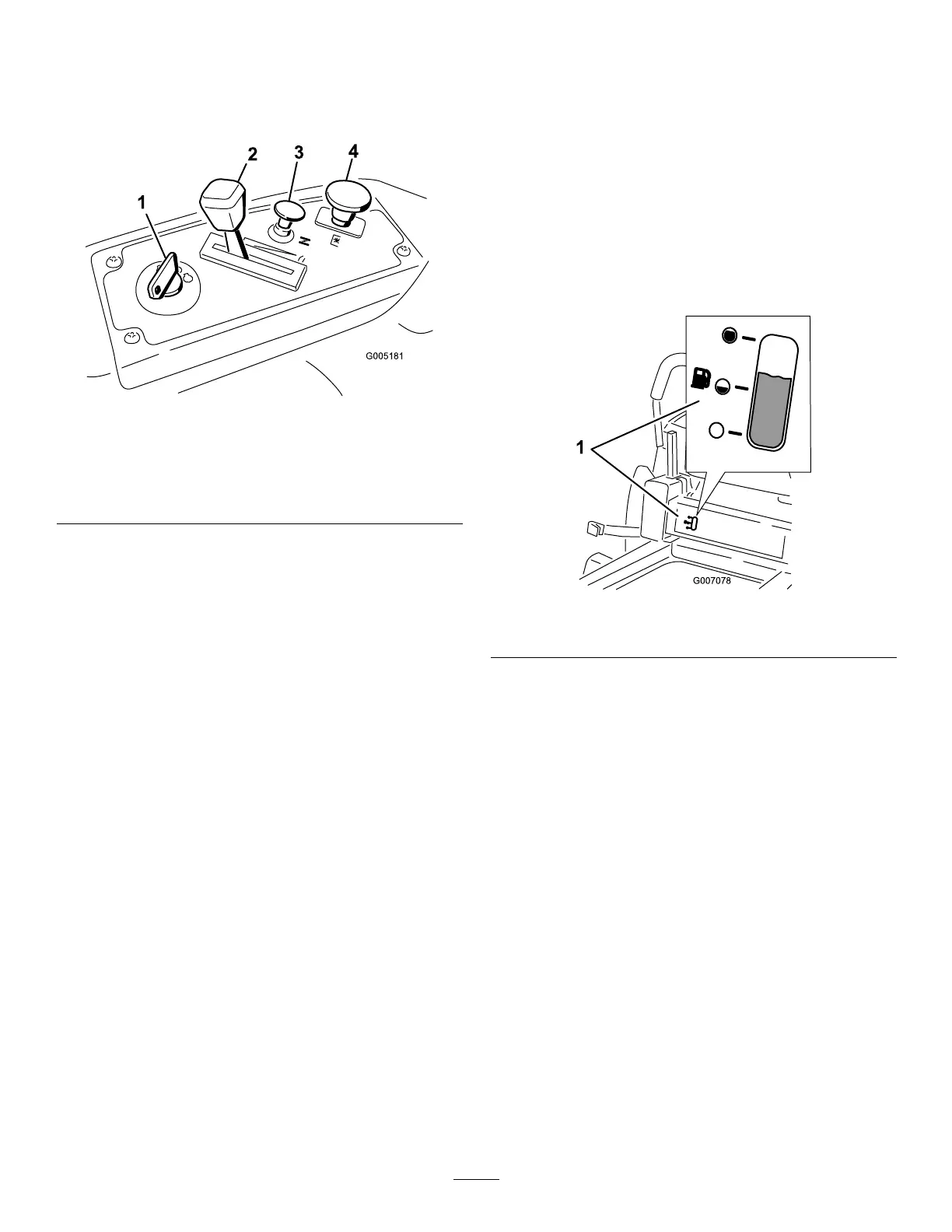

G005181
1
2
3
4
Figure6
ControlPanel
1.Ignitionswitch
3.Chokecontrol
2.Throttlecontrol4.Bladecontrolswitch
(powertake-off)
IgnitionSwitch
Theignitionswitchhasthreepositions,Off,Runand
Start.ThekeywillturntoStartandmovebackto
Runuponrelease.TurningthekeytotheOffposition
willstoptheengine;however,alwaysremovethekey
whenleavingthemachinetopreventsomeonefrom
accidentallystartingtheengine(
Figure6).
ThrottleControl
Thethrottlecontrolstheenginespeedandithasa
continuousvariablesettingfromSlowtoFast(
Figure6).
ChokeControl
PullupontheChokecontroluntilitstopstochokethe
engine(Figure6).PushdownontheChokecontrolfor
normalengineoperation
BladeControlSwitch(PowerTake-Off)
Thebladecontrolswitch,representedbyapower
take-off(PTO)symbol,engagesanddisengagespower
tothemowerblades(Figure6).
MotionControlLeversandPark
Position
Themotioncontrolleversarespeedsensitivecontrolsof
independentwheelmotors.Movingaleverforwardor
backwardturnsthewheelonthesamesideforwardorin
reverse;wheelspeedisproportionaltotheamountthe
leverismoved.Movethecontrolleversoutwardfrom
thecentertotheparkpositionandexitthemachine
(
Figure16).Alwayspositionthemotioncontrollevers
intotheparkpositionwhenyoustopthemachineor
leaveitunattended.
FuelGauge
Thefuelwindowlocatedbelowtheoperatorposition
canbeusedtoverifythelevelofgasolineinthetank
(
Figure7).
Figure7
1.Fuelgaugewindow
Height-of-CutLever
Theheightofcutleverallowstheoperatortolower
andraisethedeckfromtheseatedposition.Whenthe
leverismovedup,towardtheoperatorthedeckisraised
fromthegroundandwhenmoveddown,awayfromthe
operatoritisloweredtowardtheground.Onlyadjust
theheightofcutwhilemachineisnotmoving(
Figure4).
FootAssistPedal
Thefootassistpedalallowstheoperatortosupportthe
weightofthedeckwiththeirlegduringadjustingthe
deckheightviatheheight-of-cutlever(Figure5).
