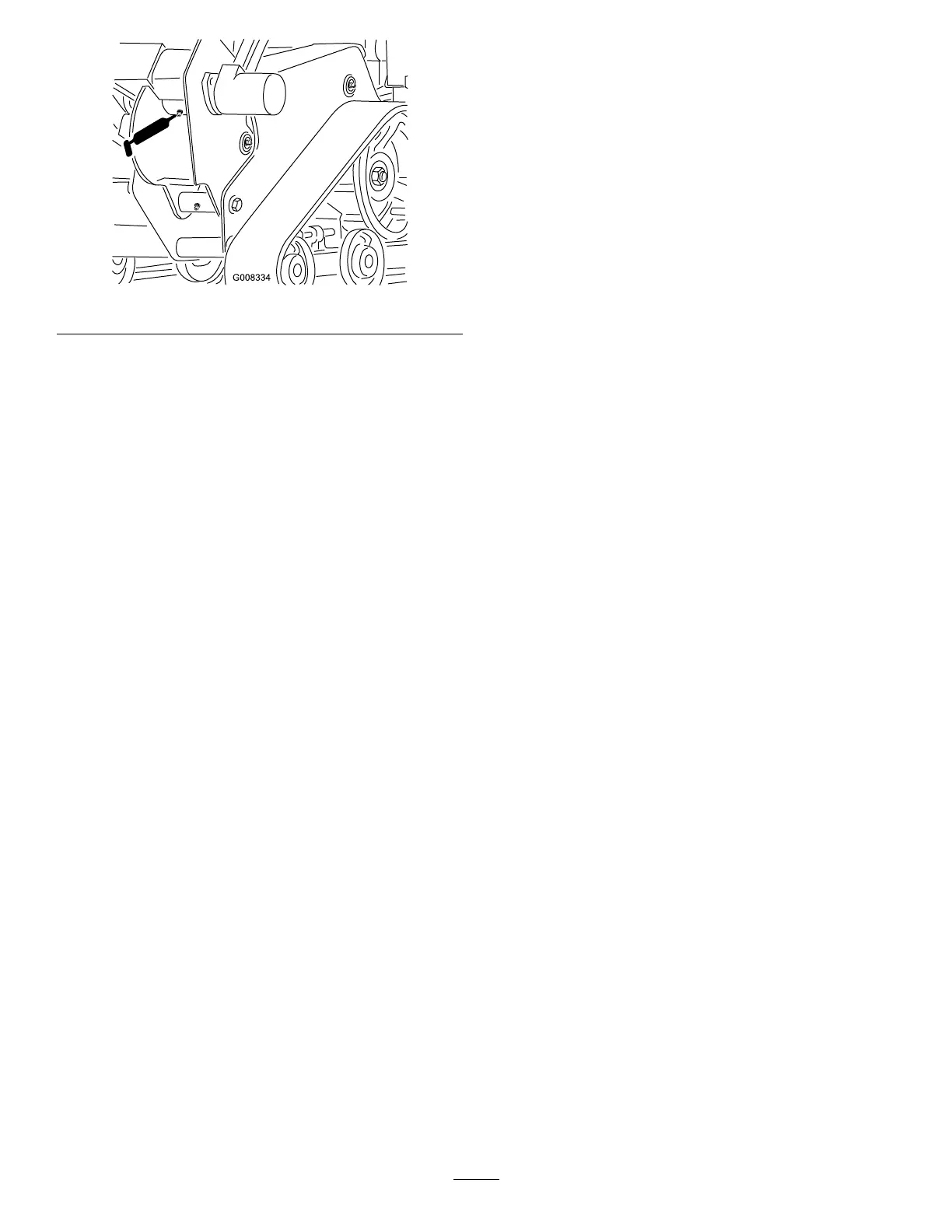

Figure31
3.Pumpgreaseintothettinguntilgreasecomesout
ofthegreasevalvelocatednexttothetting.
4.Wipeupanyexcessgrease.
EngineMaintenance
ServicingtheAirCleaner
(Models22970and22971)
ServiceInterval:Every25hours—Cleanthefoamair
cleanerelement.(Models22970and
22971)
Every50hours—Checkthepaperair
cleanerelement.(Models22970and
22971)
Every200hours/Yearly(whichever
comesrst)—Replacethepaperair
cleanerelement.(Models22970and
22971)
Inspectthefoamandpaperelementsandreplacethem
iftheyaredamagedorexcessivelydirty.
Note:Servicetheaircleanermorefrequently(every
fewoperatinghours)iftheoperatingconditionsare
extremelydustyorsandy.
Important:Donotoilthefoamorpaperelement.
RemovingtheFoamandPaper
Elements
1.Lowertheboomandsettheparkingbrake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Cleanaroundtheaircleanertopreventdirt
fromgettingintotheengineandcausingdamage
(Figure32).
4.Unscrewthecoverknobandremovetheaircleaner
cover(Figure32).
5.Removethe2wingnutsandremovetheaircleaner
assembly(Figure32).
6.Carefullypullthefoamelementoffthepaper
element(Figure32).
