Maintenance
37
3. Rotate the bulb holder 1/4 turn counterclockwise
and remove it from the reflector (Fig. 49).
4. Push and rotate the bulb counterclockwise until
it stops (approx. 1/4 turn) and remove the bulb
from the bulb holder (Fig. 50).
1
2
3
4
4
5
5

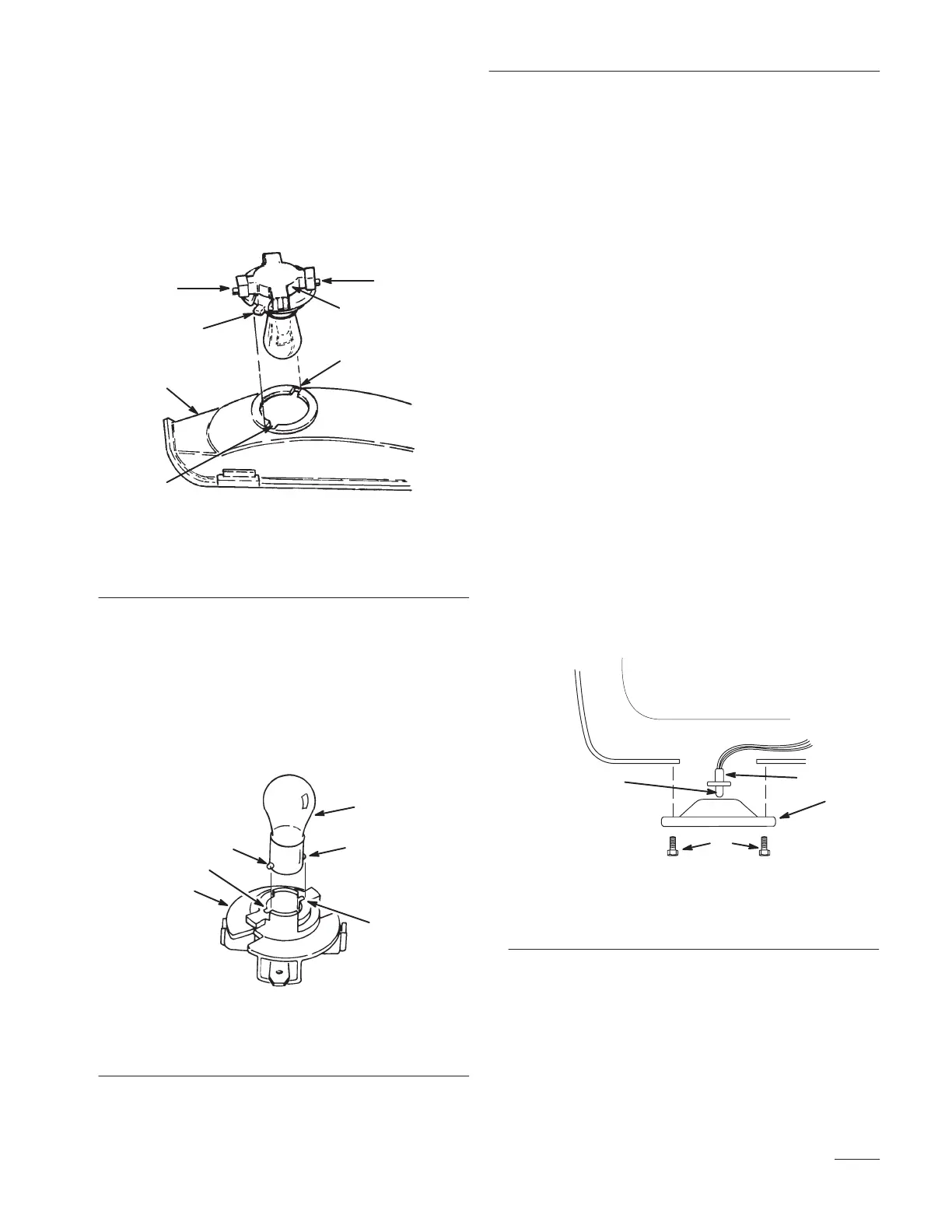

Figure 49
1. Bulb holder
2. Reflector
3. Tabs
4. Slots
5. Terminals
Installing the Bulb
1. The bulb has metal pins on the side of its base.
Align the pins with the slots in the bulb holder
and insert the base into the holder (Fig. 50).
Push and rotate the bulb clockwise until it stops.
1
2
3
4
2
4
Figure 50
1. Bulb
2. Metal pins
3. Bulb holder
4. Slots
2. The bulb holder has two tabs (Fig. 49). Align the
tabs with the slots in the reflector, insert the bulb
holder into the reflector and rotate it 1/4 turn
clockwise until it stops.
3. Push the wire connectors onto the terminals on
the bulb holder.
Taillights
Bulb: GE 194
Removing the Bulb
1. Disengage the power take off (PTO), set the
parking brake, lower the attachment lift, and turn
the ignition key to “STOP” to stop the engine.
Remove the ignition key.
2. Remove the two screws.
3. Pull the lens out far enough so that you can
remove the bulb socket.
4. Pull the bulb from the socket.
1
m–3321
2
3
4
Figure 51
1. Lens
2. Screws
3. Bulb
4. Socket
Installing the Bulb
Reverse the bulb removal procedure.
