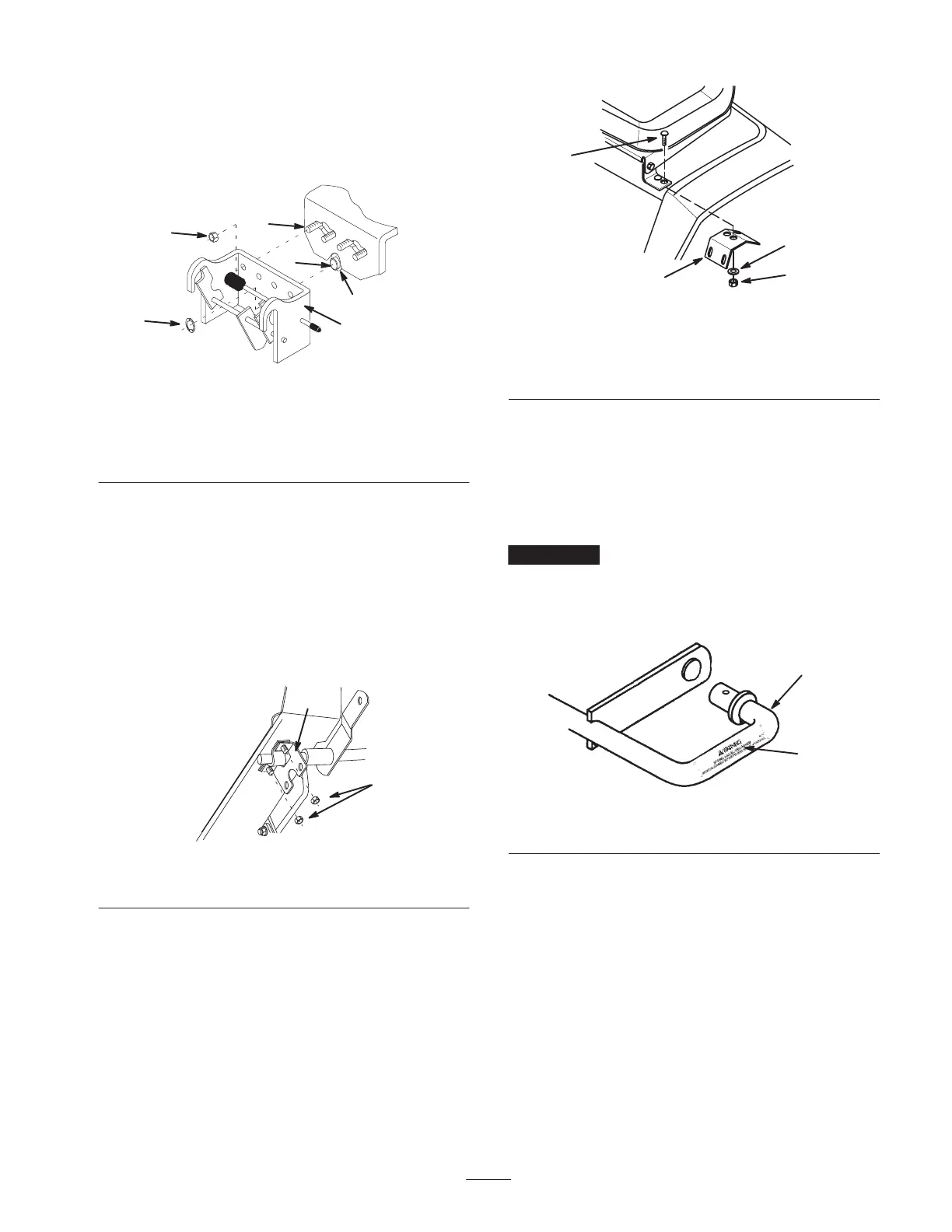

Setting Up the Tractor
1. Remove the E-ring and all except one thick washer
from the front axle, pivot pin (Fig. 7). Discard unused
washers.
1
2
1287
4
3
5
6
Figure 7
1. E-ring
2. Thick Washer
3. Axle pivot
4. Front hitch
5. Short shoulder bolt, 3/8 x
1 in.
6. Locknut, 3/8 in.
2. Remove the muffler shield.
3. Install 4 short shoulder bolts (3/8 x 1 in.) into the
keyhole slots in the axle bracket (Fig. 7).
4. Install the muffler shield and place the front hitch onto
the tractor, securing it with 4 locknuts (3/8 in.) and the
previously removed E-ring (Fig. 7).
5. Remove the nuts from the right side footrest cross–shaft
(Fig. 8). Do not remove the cross–shaft bracket.
1285
2
1
Figure 8
1. Locknut 2. Handle bracket
6. Install the crank handle bracket under the right side
footrest with a 90 degree bend toward the inside
(Fig. 8), securing it with the previously removed
locknuts.
7. Remove the nuts from the left, seat bracket (Fig. 9).
2
3
1
1296
4
Figure 9
1. Spring bracket (Long
angle forward)
2. Carriage bolt, 5/16 x
1-1/4 in.
3. Washer
4. Nut
8. Remove the bolts and replace them with 2 carriage bolts
(5/16 x 1-1/4 in.).
9. Install the lift assist spring bracket on the under side of
the left rear fender with the long angle of the bracket
forward (Fig. 9). Secure it with the previously removed
washers and nuts.
Important The long angle of the lift assist bracket must
be forward or the lift assist spring may contact the tire.
10. Install warning decals to the left and right side of the lift
arms (Fig. 10).
1567
1
2
Figure 10
1. Decal 2. Lift arm
