Toro Workman 2110 Service Manual

Workman 1100/2100/2110
Drive Train
Page 5 – 36
C. Make sure distance from one ball bearing outer
edge to the other ball bearing outer edge is 136.8 to
137.1 mm (Fig. 55).
Figure 57

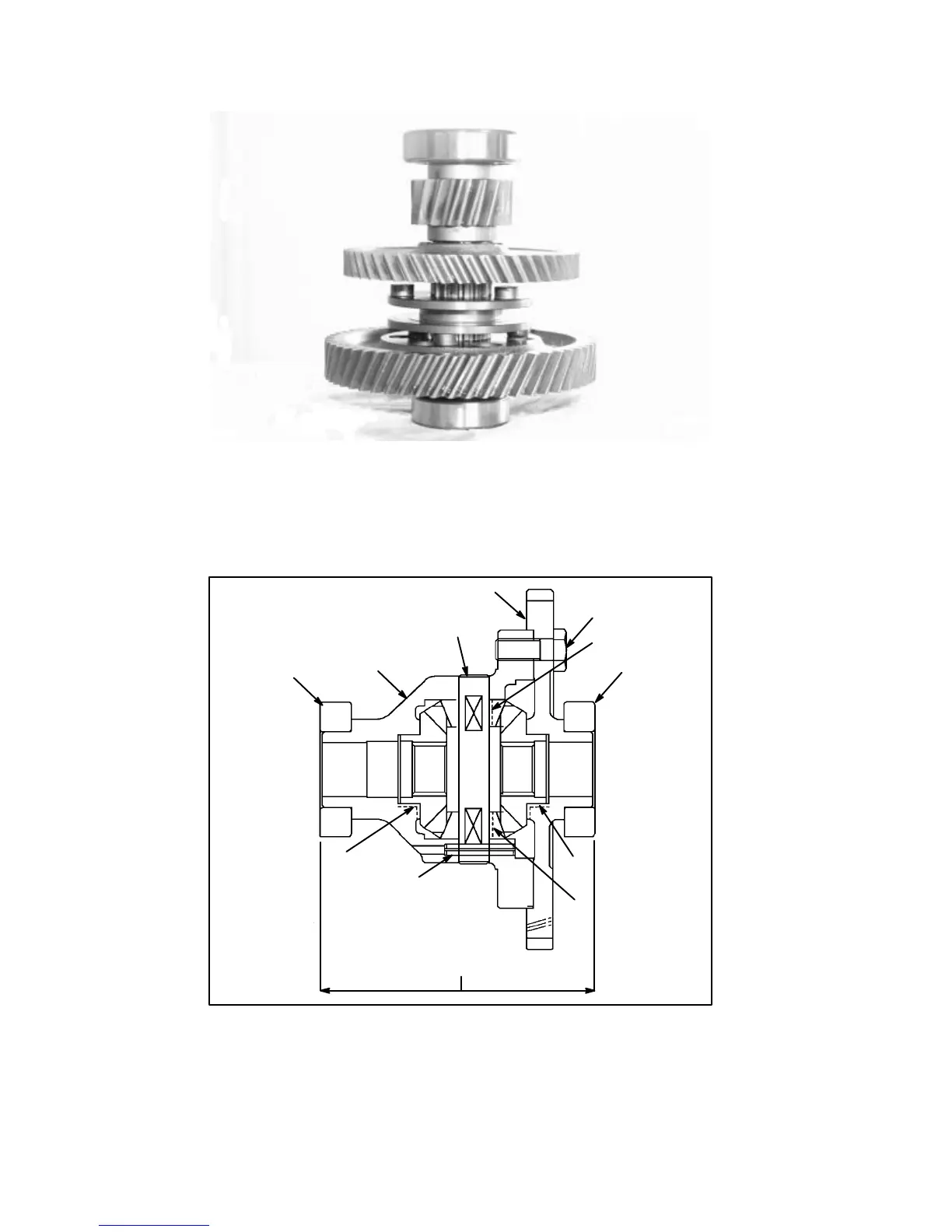

D. The center shaft should appear as above when
assembled.
3. Assemble differential assembly.
1. Pinion gear (greased surface)
2. Pinion shaft
3. Side gear (greased surface)
4. Differential case
5. Gear 62
6. Bolt
7. Spring pin
8. Ball bearing
9. Ball bearing
Figure 58
8
3
7
1
9
1
6
5
2
4
3
123.3 to 124.0 mm
