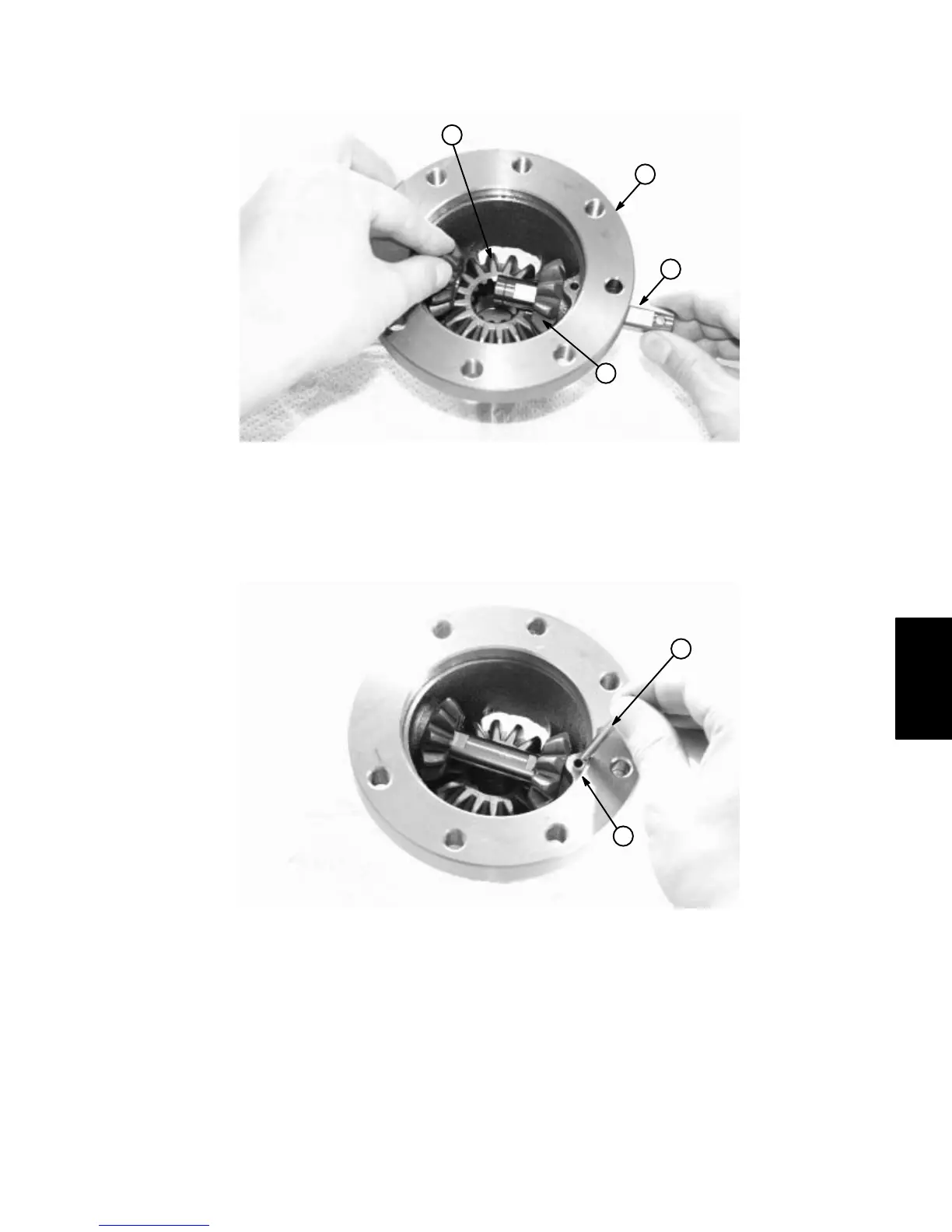

A. Apply molybdenum disulfide grease to the inside
of both pinion gears where they contact the pinion
shaft. Apply molybdenum disulfide grease to the out-
side of both side gears where they contact the differ-
ential case and gear 62.
1. Side gear
2. Pinion gear
3. Pinion shaft
4. Differential case
Figure 59
1
4
3
2
B. Install side gear, both pinion gears, and pinion
shaft into the differential case.
1. Spring pin 2. Differential case
Figure 60
1
2
C. Align pinion shaft hole and install new spring pin
through the differential case and pinion shaft.
