Workman MDX Page 3 -- 7 Briggs & Stratton Gasoline Engine
Removal (Fig. 5)
1. Make sure machine is parked on a level surface with
the engine OFF.
2. Raise cargo box and support with prop rod.
3. Thoroughly clean junction of intake hose and carbu-
retor adapter on engine and air cleaner assembly.
4. Remove air cleaner components as needed using
Figure 5 as a guide. Discard any removed gaskets and
clean gasket mating surfaces.
Installation (Fig. 5)
IMPORTANT: Any leaks in the air filter system will
allow dirt into engine and will cause serious engine
damage. Make sure that all air cleaner components
are in good condition and are properly secured dur-
ing assembly.
1. Assemble all removed air cleaner components using
Figure 5 as a guide.
A. Install new gaskets (items 10 and 14) if they were
removed.
B. If flange head screws (item 9) were loosened or
removed, torque screws from 60 to 65 in--lb (6.8 to
7.3 N--m).
C. Make sure that air cleaner vacuator valve is
pointed toward ground and slightly toward engine af-
ter assembly.
D. Make sure to secure intake hoses with hose
clamps.
2. Lower and secure cargo box.

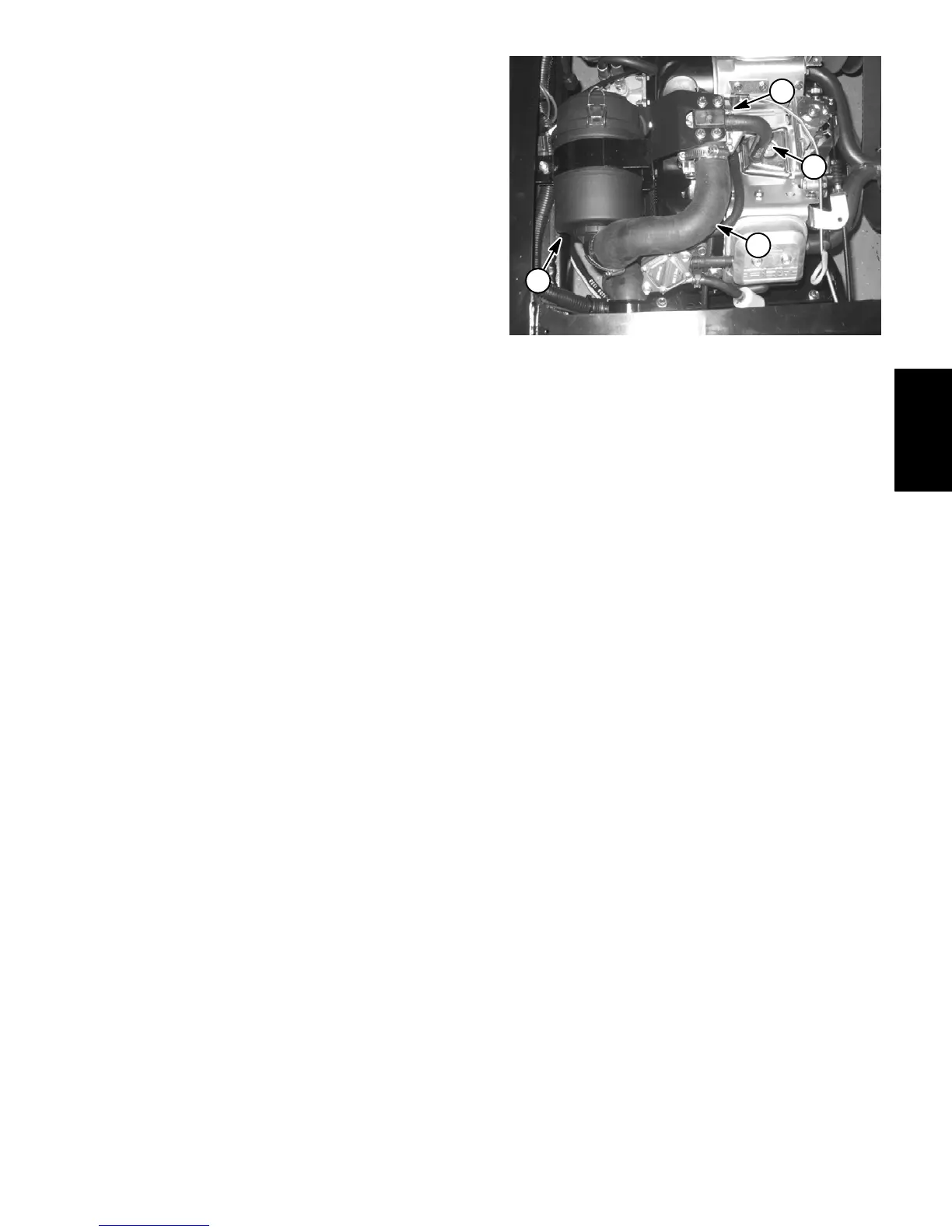

Figure 6
1. Air cleaner
2. Carburetor adapter
3. Breather hose
4. Intake hose
3
1
2
4
Briggs & Stratton
Gasoline Engine
