Workman MD/MDX Drive TrainPage 5 -- 25
1. Counter shaft
2. Spacer (2 used)
3. Needle bearing
4. Gear 34
Figure 34
1
2
3
4

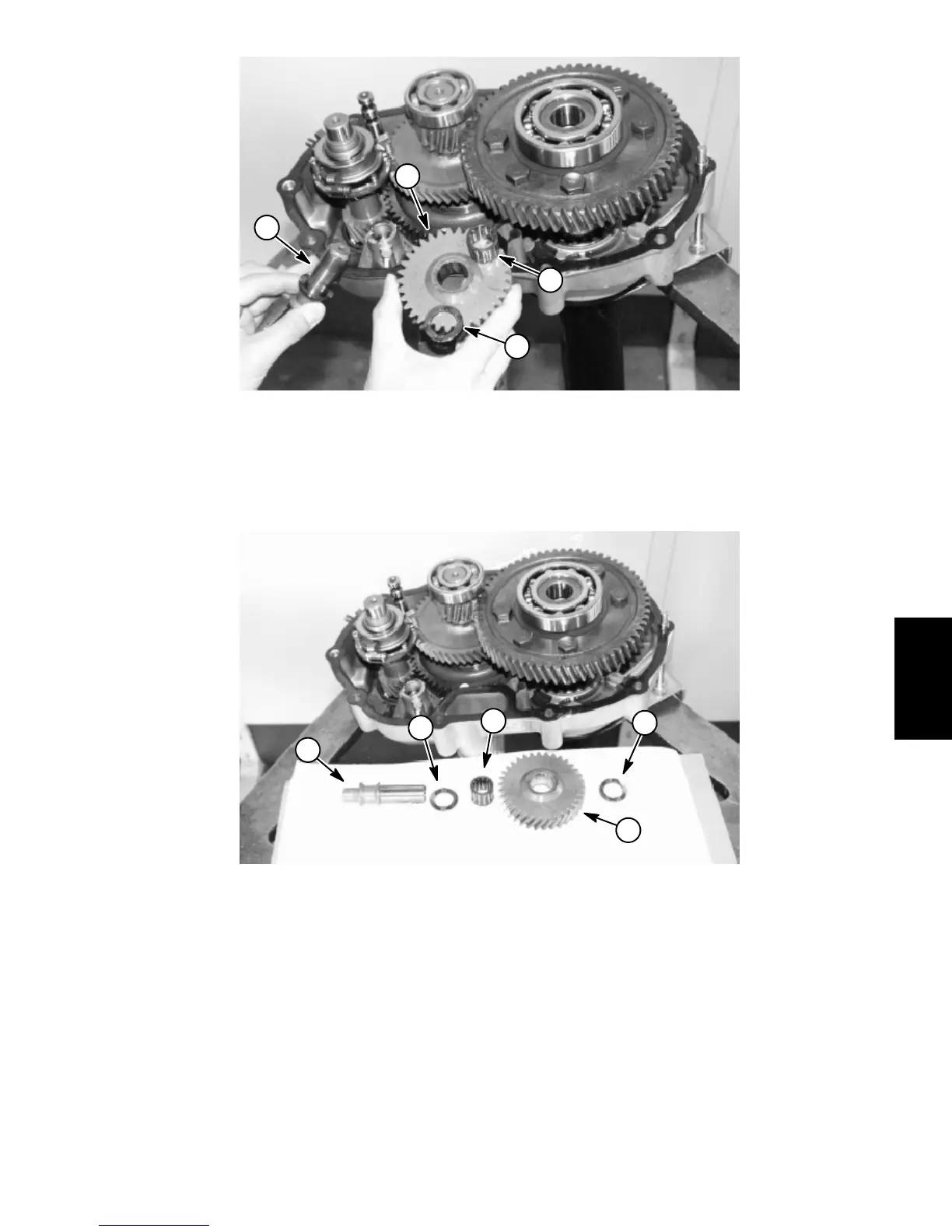

B. Pull out counter shaft. Remove spacer, needle
bearing, gear 34 and spacer.
1. Counter shaft
2. Spacer (2 used)
3. Needle bearing
4. Gear 34
Figure 35
1
2
4
2
3
C. Replace counter shaft if it has abnormal wear,
cracks or damage.
D. Replace spacer if either one is cracked or bent.
E. Replace needle bearing if needles are bent, do
not rotate freely or do not remain in the bearing cage.
F. Replace gear 34 if worn or damaged. Cracked,
broken, missing or chipped gear teeth are not ac-
ceptable.
