4. The following steps are required to set the engine

perfectly to the water surface (trimming):

•Firsttiltthemotorup.Todosothekicklever

mustbeinthe“Tilt/Autokick-up”position.

•Tiltthemotorupbypullingthehandle

on the back end of the aluminum cage

until the engine clicks into one of the

upper positions.

•Removethetrimmingbolt‘sretainingring

and pull it out of the transom mount.

•Selectthetrimmingpositionyouwantand

insert the trimming bolt into the

corresponding borehole. You must insert

the trimming bolt through both side

walls of the transom mount. Finally you

must ﬁx the trimming bolt again with the

retaining ring.

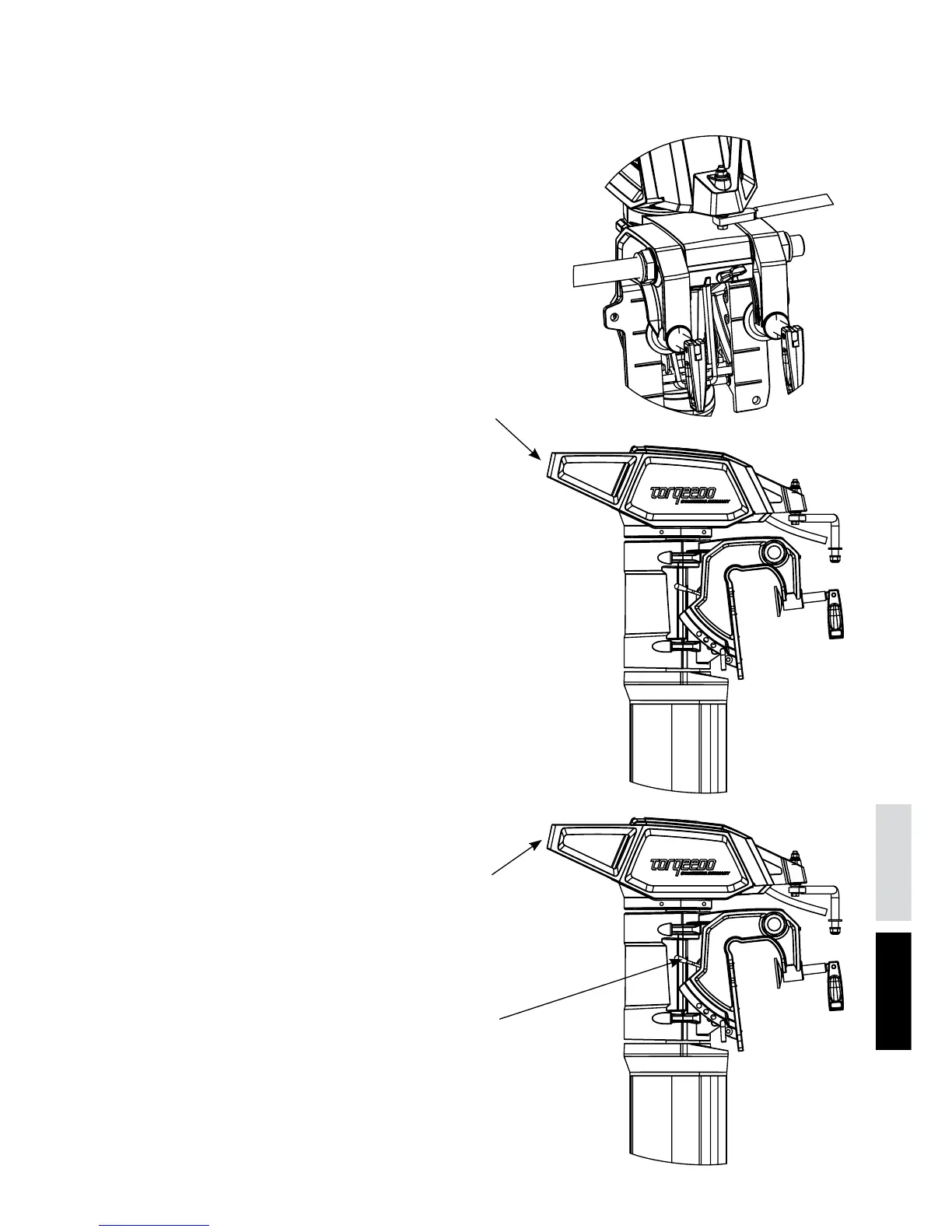

•Inordertomovethemotordownwards

again you must ﬁrst lift the motor onto

the handle of the aluminum cage above

the release position and then press the

lever again to release the tilt mechanism

(refer to drawing). With the lever pressed,

allow the motor to move down to the

desired position slowly.

1. Raise here

2. Pull release

lever

Torqeedo Cruise 2.0 R/T User Manual
