4.6 Connecting of Cruise R/T to Power 26-104 lithium battery/batteries
Congratulations!Youhaveoptedforthestate-of-the-artbatterytechnology!
4.6.1 Cruise 2.0 R/T
Der Cruise 2.0 R/T operates with a power supply of between 20 V and 30 V (referring to
nominal voltage). This means it may be operated with at least one Torqeedo Power 26-
104 lithium-battery.
Power 26-104 is connected as follows :

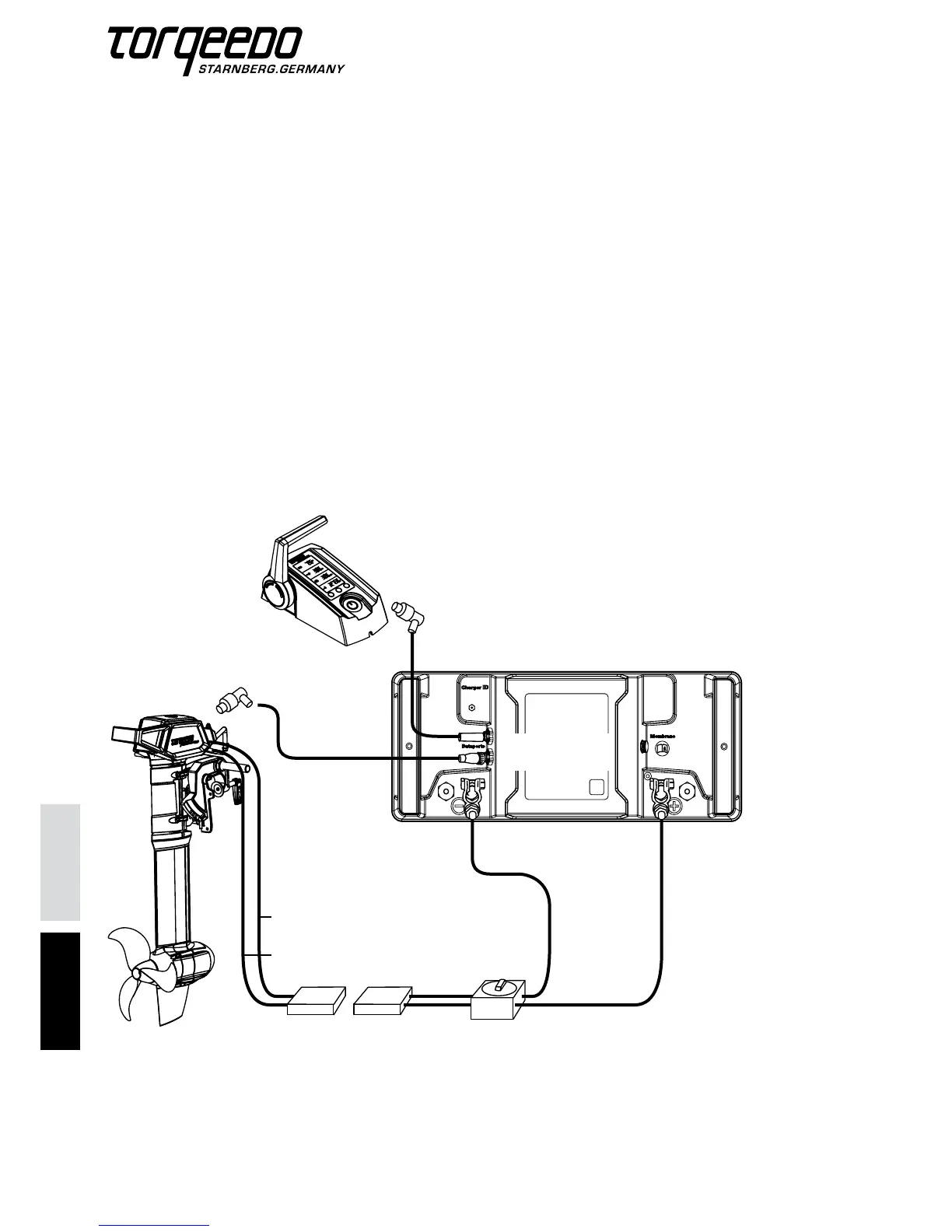

Connecting of Cruise 2.0 R
Step 2: connection of data cable 2
(scope of supply Cruise)
Step 5: connection
of high current
plug
Step 3: switch main
switch of cable set to
“OFF”
negative terminal post
Step 1: connection of data cable 1
(scope of supply Power 26-104)
data socket 1
data socket 2
positive terminal
post
black cable: negative
red cable positive
Step 4: connection of
positive and negative
terminal posts (see
positive and negative
polarity on imprint on
battery and terminal
posts)
