B. Multifunctional outputs

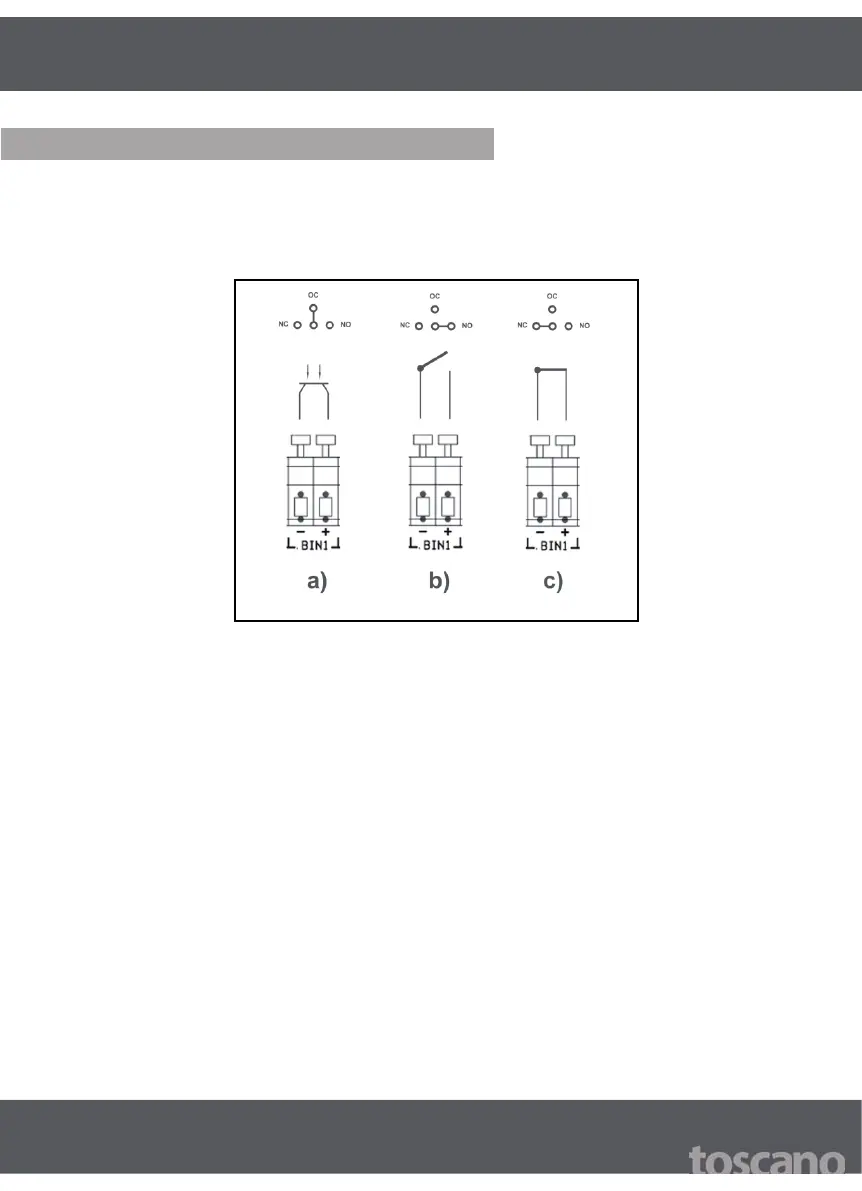

The fl ow meter is equipped with two multifunctional outputs. Relay or optotransistor contacts are connected to
BIN1 terminals, BIN2 terminals are used only for optotransistor. Use jumper NC-OC-NO above BIN1 terminals
to set their function.
a) Output works as optotransistor.
b) Relay contacts are normally open.
c) Relay contacts are normally closed.
Outputs can function as
a) Pulse transmitter
of total volume in positive direction imp V+•
of total volume in negative direction imp V- •
of total volume in both directions imp V •
b) Status output
!
