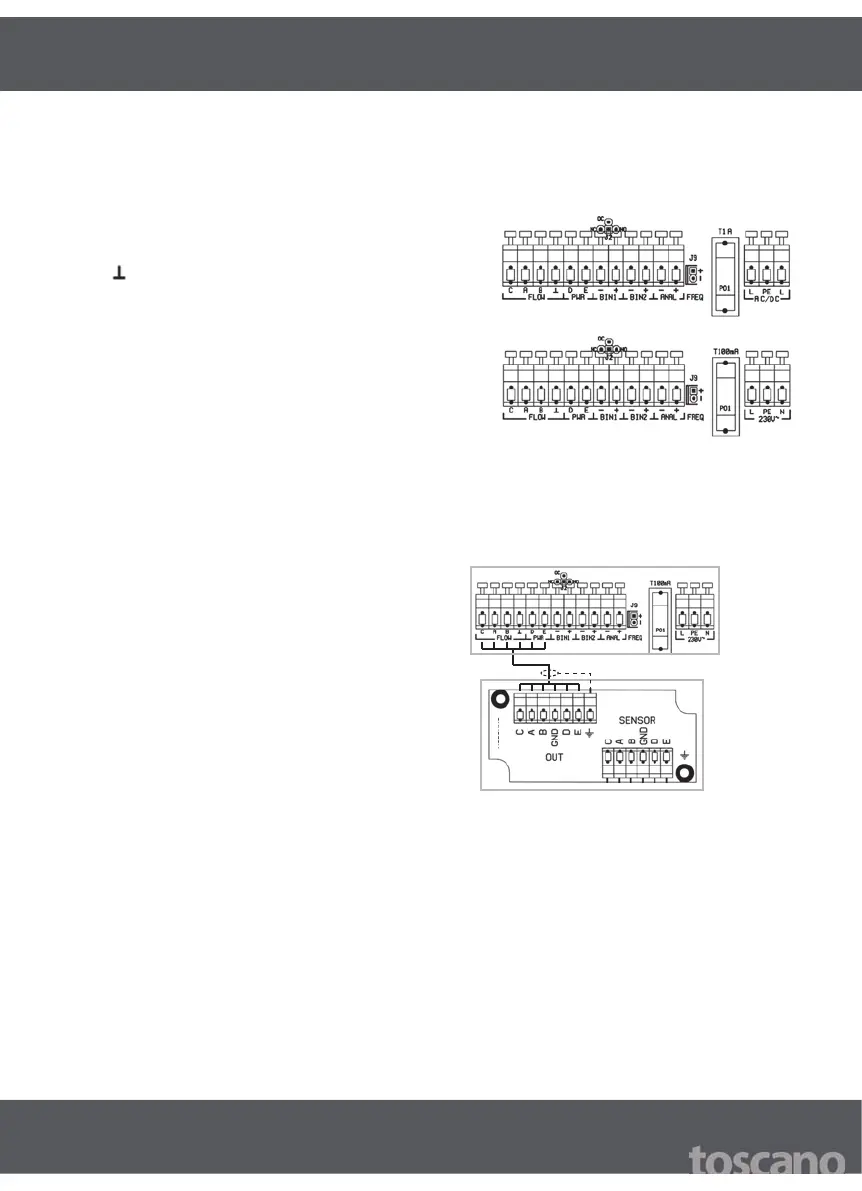

BLOQUE DE TERMINALES
FLOW C tube fl ooding indication electrode
FLOW A measuring electrode
FLOW B measuring electrode
FLOW ground terminal of the sensor
PWR D solenoid
PWR E solenoid
BIN1 programmable multifunctional output
BIN2 programmable multifunctional output
ANAL programmable analogue output
FREQ frequency output
(for calibration only)
230 V L phase conductor 230 V/50 Hz
230 V PE protective conductor
230 V N neutral conductor 230 V/50 Hz
AC/DC L supply conductor +/-
AC/DC PE protective conductor
AC/DC L supply conductor +/-
PO1 protective fuse 100 mA
design with 230 V/50 Hz supply
protective fuse 1 A
design with AC/DC supply
Compact version
Remote version
