1550/1560 GENERAL 2 - 13 Mar. 1998 © TOSHIBA

2.4 Removing Covers and Electrical

Parts

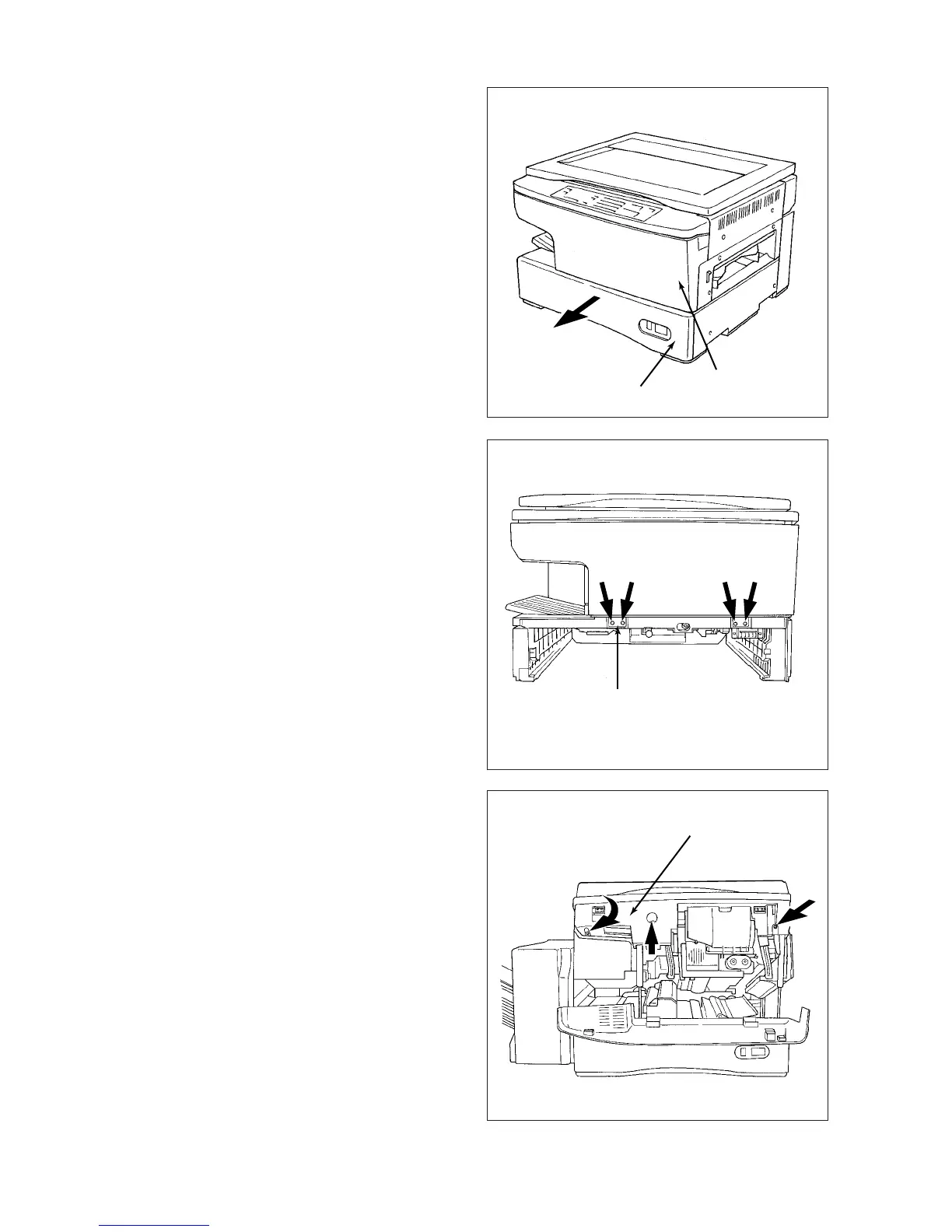

2.4.1 Removing covers

[A] Front cover

(1) Remove the cassette (in the direction of the

arrow).

(2) Remove the screws fastening the hinge (4 pcs.).

[B] Inner cover (upper)

(1) Open the front cover.

(2) Remove the toner cartridge.

(3) Remove three screws.

Front cover

Cassette

Hinge

Inner cover (upper)

General Preacutions2
