Mar. 1998 © TOSHIBA 6 - 9 1550/1560 DRIVE

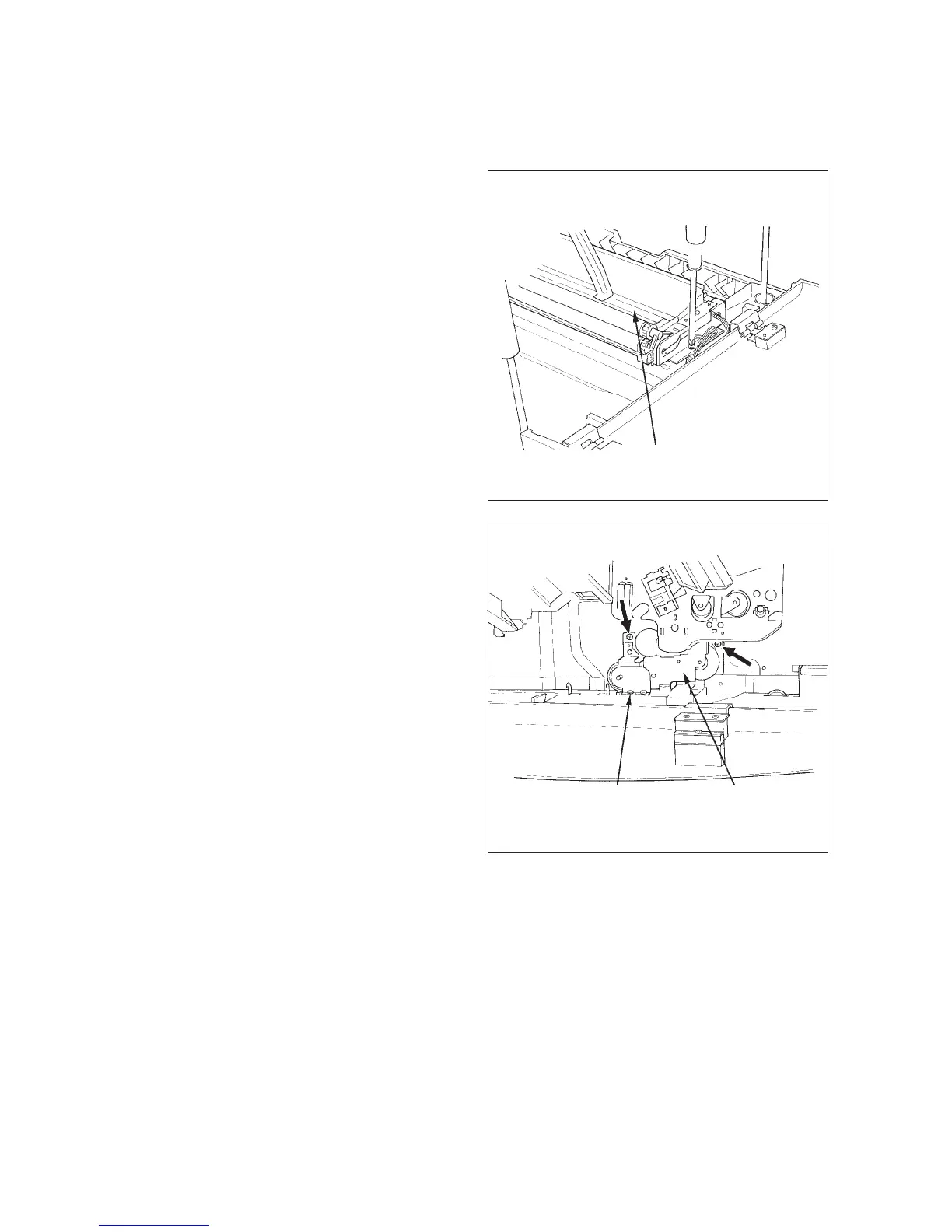

6.3.3 Lower drive unit
(1) Remove the fuser unit.
(2) Remove the transfer/separation charger.
(3) Remove the transport guide.
(4) Remove the connector cover of the feeder
unit.
(5) Remove the feeder unit (1 screw and connec-
tor).
(6) Remove the lower drive unit bracket (1 screw)
and separate the drive unit from the bracket
(2 screws).
Paper feed unit
Screws fastening
the bracket
Lower drive unit
To Next Page
