7.6 Lamp Regulator Circuit

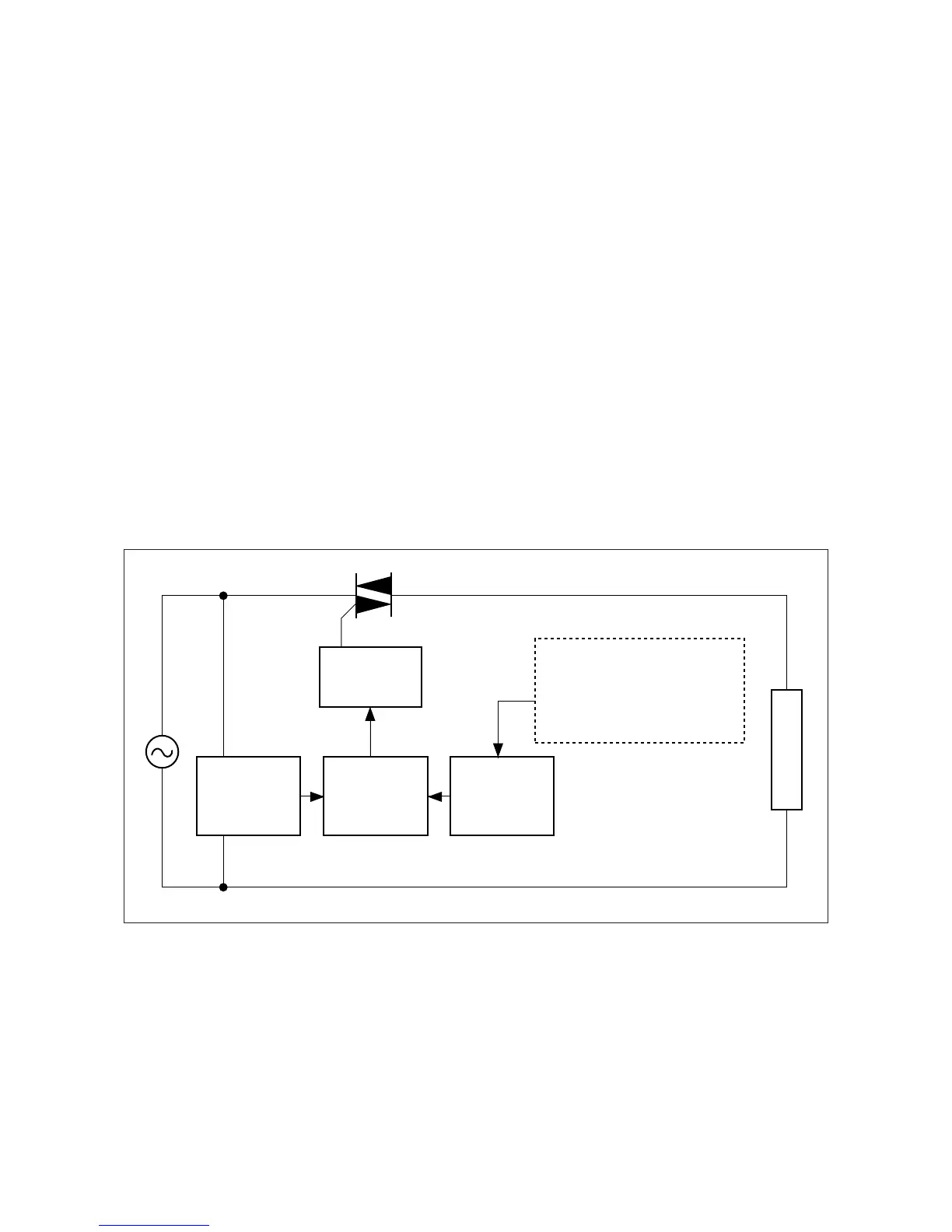

The lamp regulator performs control to maintain the amout of light of the exposure lamp at a constant
value by monitoring the AC input voltage.
(Method) • Detects the AC input voltage.
• Changes the input voltage to a DC voltage approximate to its effective value by means
of the waveform shaping circuit.
• This DC voltage is compared with the reference voltage made by shaping the pulse
signal and is amplified.
• Based on the reference voltage and the input voltage, the trigger pulse generation cir-
cuit generates trigger pulses in synchronism with the frequency of the power supply.
• Controls the conduction angle of the triac.
The voltage applied across the lamp is kept consistent.
fff f=
(PWM)
Pulse signal
Reference pulse signal setting circuit
Trigger pulse
generation
circuit
Waveform
shaping circuit
Pulse
waveform
shaping circuit
Operational
amplifier
Exposure lamp
