Toshiba CIX Installation Manual

Installation
Step 3: Connect Hardware to Strata CIX
8 Strata CIX IP Attendant Console Installation 01/09
Step 3: Connect Hardware to Strata CIX
 If you are not using a network hub, use an RJ45 cross-pinned cable to connect the Strata CIX
Network Interface Card (NIC) jack on the xCTU processor card and to the CIX Attendant
Consoles PC’s NIC jack (see
Figure 2).
...or if you’re connecting to the Strata CIX via a switch or LAN, use a straight-pinned RJ45 cable
(see
Figure 1). Pinouts are shown in Figure 3.

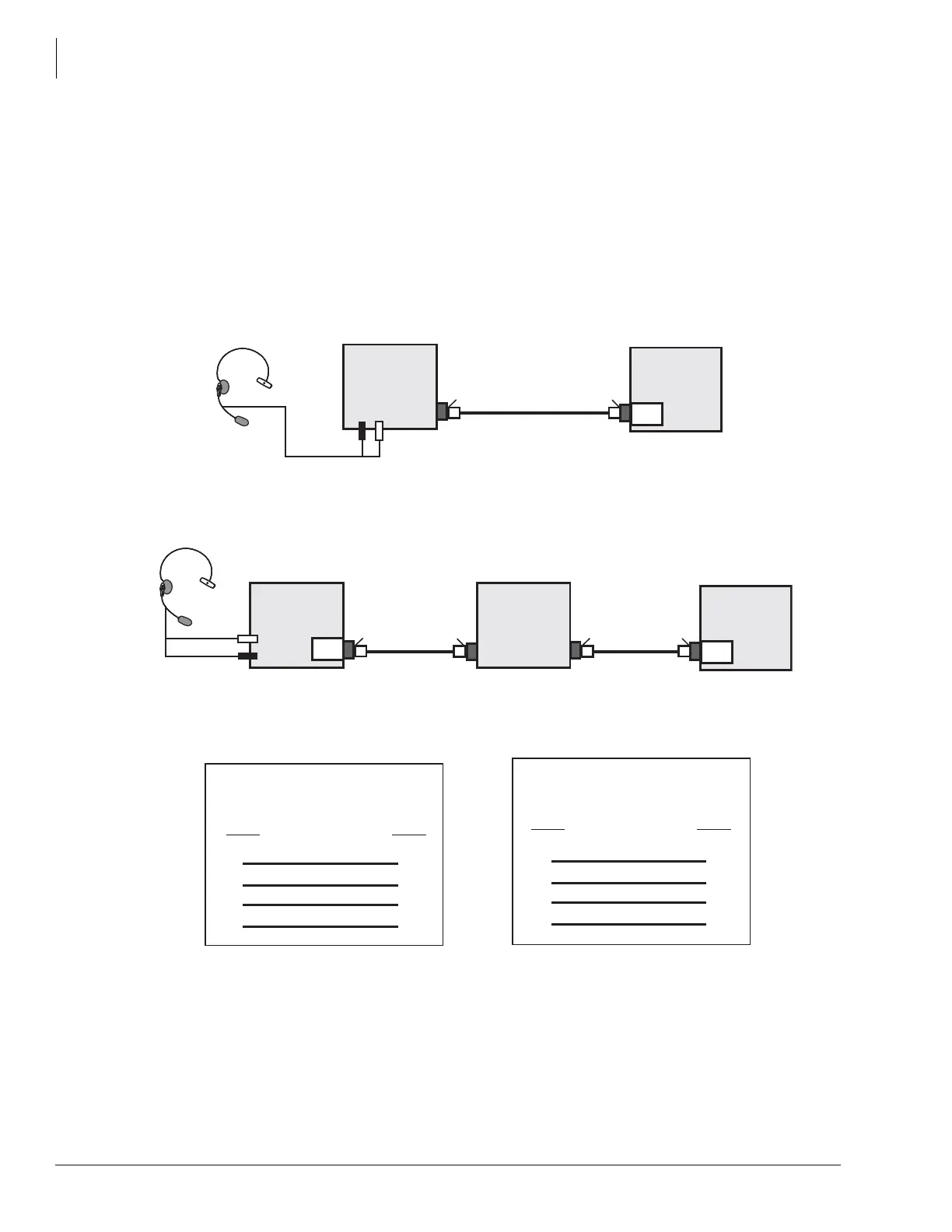

Figure 1 Network Interface Connection
Figure 2 Network Interface Connection
Figure 3 8-wire Modular Cord Pinouts
7766
xCTU
Processor
Strata CIX
Cross-pinned,
8-wire modular cord
RJ45
Jack
MIC
Jack
Speaker
Jack
RJ45
Jack
NIC
Strata CIX
IP Attendant
Console
PC
NIC
Headset
Straight-pinned,
8-wire modular cord
Straight-pinned,
8-wire modular cord
RJ45
Jack
RJ45
Jack
LAN
or
Switch
7767
xCTU
Processor
Strata CIX
RJ45
Jack
MIC Jack
Speaker Jack
RJ45
Jack
NIC
Strata CIX
IP Attendant
Console
PC
NIC
Headset
6512
Straight-pinned,
8-wire modular cord
Pin Pin
1
2
3
6
1
2
3
6
TD+
TD-
RD- TD-
RD-
RD+ TD+
RD+
Cross-pinned,
8-wire modular cord
1
2
3
6
3
6
1
2
Pin
Pin
TD+
TD-
RD- TD-
RD-
RD+ TD+
RD+
