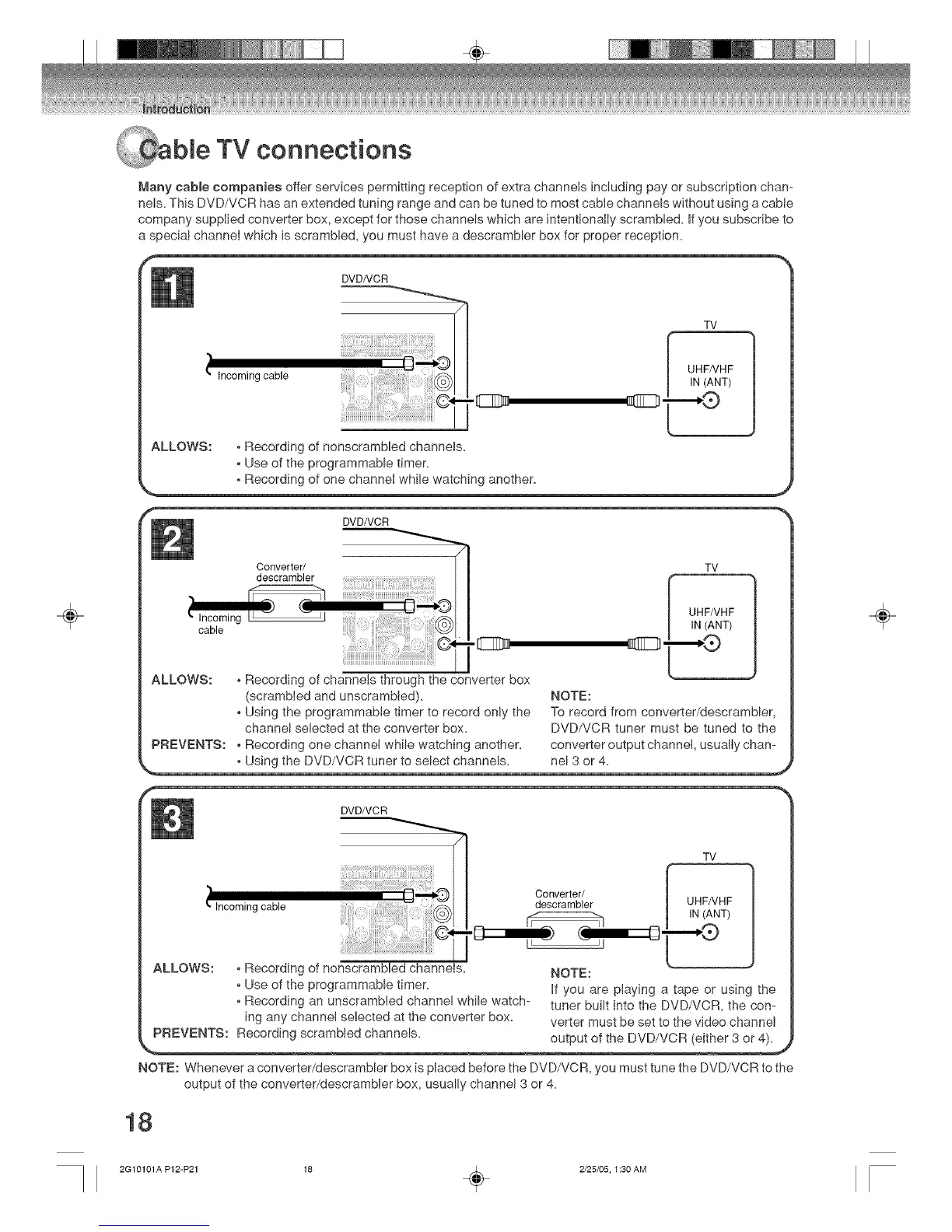

Toshiba D-VR4SU - Cable TV connections

ble TV connections
Many cable companies offer services permitting reception of extra channels including pay or subscription chan-
nels. This DVD/VCR has an extended tuning range and can be tuned to most cable channels without using a cable
company supplied converter box, except for those channels which are intentionally scrambled. If you subscribe to
a speciat channel which is scrambled, you must have a descrambler box for proper reception.
DVD/VCR
÷
Incoming cable
ALLOWS: • Recording of nonscrambled channels.
• Use of the programmable timer.
• Recording of one channel while watching another.
TV
DVD/VCR
cable
Converter/
descrambler
./ %
iI
0
J!
ALLOWS: • Recording of channels through the converter box
(scrambled and unscrambled).
• Using the programmable timer to record only the
channel selected at the converter box.
PREVENTS: • Recording one channel while watching another.
• Using the DVD/VCR tuner to select channels.
TV
NOTE:
To record from converter/descrambler,
DVD/VCR tuner must be tuned to the
converter output channel, usually chan-
nel 3 or 4.
DVD/VCR
÷
1
• Incoming cable
ALLOWS: • Recording of nonscrambled channels. NOTE:
Use of the programmable timer. If you are playing a tape or using the
Recording an unscrambled channel while watch- tuner built into the DVD/VCR, the con-
ing any channel selected at the converter box. verter must be set to the video channel
PREVENTS: Recording scrambled channels, output of the DVD/VCR (either 3 or 4).
NOTE: Whenever a converter/descrambler box is placed before the DVD/VCR, you must tune the DVD/VCR to the
output of the converter/descrambler box, usually channel 3 or 4.
18
2G10101A PI2-P21 18 _ 2/25/05, 1:30 AM
